Aluminium mounting flange

Mounting flange 45° latching for connecting and fastening our 2020 Ket Motion worm gearboxes.
Montageflansch 45° rastend Aluminium
Befestigungsflansch 45° rastend Aluminium
Montageflansch 45° rastend Aluminium
Befestigungsflansch 45° rastend Aluminium
Quantity Unit price
To 4
€52.80*
To 9
€49.29*
To 19
€45.77*
From 20
€42.25*

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock: 5
Product number: 2010.15-0001
Weight: 0.08 kg

Product information "Aluminium mounting flange"

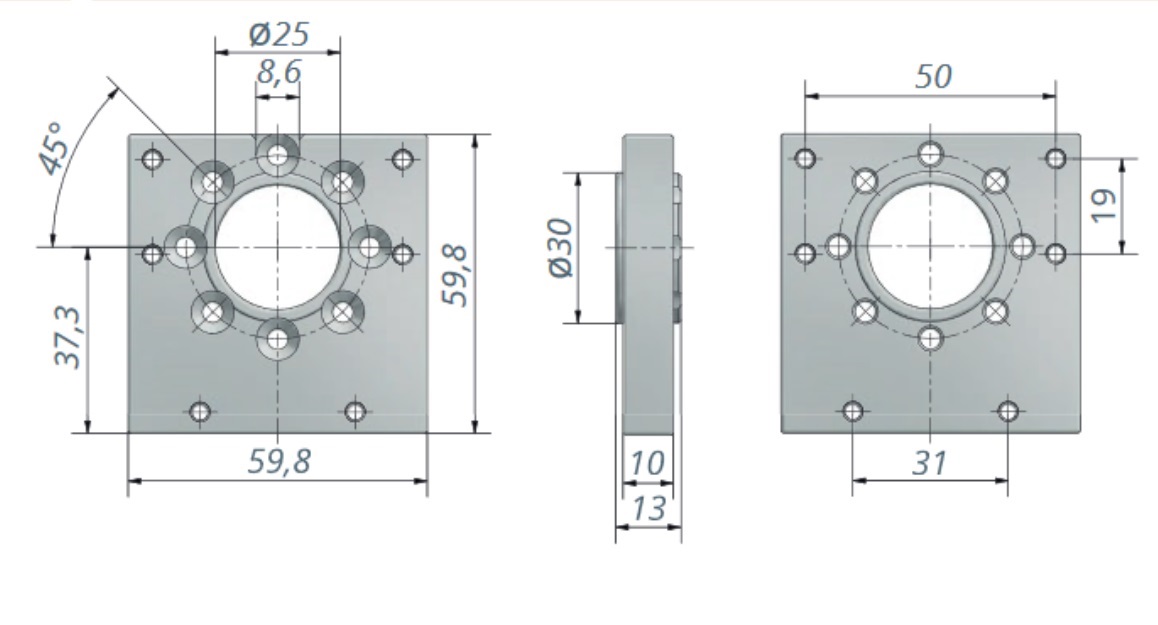

Mounting flange for Ket-Motion 2020 gearbox l Aluminium l incl. mounting material l 45° grid

To ensure secure mounting of our Ket-Motion 2020 worm gear units, we offer you a mounting flange with screws and holes in a 45° grid. This aluminium mounting flange is used for the individual and simple fixing of our 2020 worm gear units:

The flange is supplied with fixing material.
