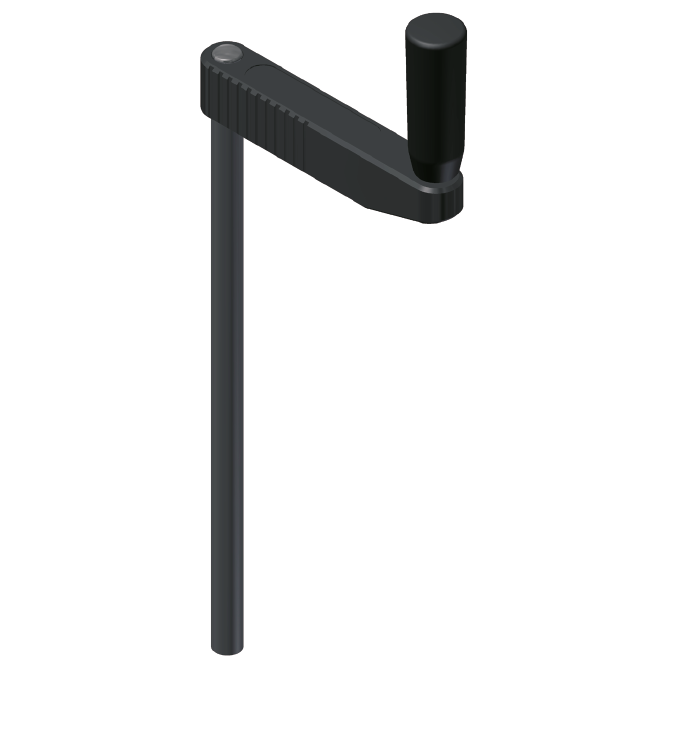

Inside hexagon 6mm l Aluminium profile tube l Axle length 200mm or 245mm l Glass-fibre reinforced plastic l Projection 110mm Properties  Our hand cranks in the design inside 6kt SW7 are available in different dimensions regarding throat depth. The hand cranks are characterized by their simple and at the same time modern design and are suitable for an easy and exact adjustment.In addition, our hand cranks are suitable for the profile bars, bevel gears and worm gears offered in our store.  Technical Specifications Item number 5187.00-V01A200 5187.00-V01A245 Execution inside hexagon SW6 inside hexagon SW6 Axis length 200mm 245mm Outreach 110mm 110mm Material crank handle glass fiber reinforced plastic glass fiber reinforced plastic Material Aluminum profile tube Aluminum profile tube Color crank body & handle black black back to the overview

Inside hexagon 7mm l Aluminium profile tube l Axle length 200mm or 245mm l Glass-fibre reinforced plastic l Projection 110mm Properties Our hand cranks in the design inside 6kt SW7 are available in different dimensions regarding throat depth. The hand cranks are characterized by their simple and at the same time modern design and are suitable for an easy and exact adjustment.In addition, our hand cranks are suitable for the profile bars, bevel gears and worm gears offered in our store.  Technical Specifications Item number 5187.00-V02A200 5187.00-V02A245 Execution inside hexagon SW7 inside hexagon SW7 Axis length 200mm 245mm Outreach 110mm 110mm Material crank handle glass fiber reinforced plastic glass fiber reinforced plastic Material Aluminum profile tube Aluminum profile tube Color crank body & handle black black back to the overview

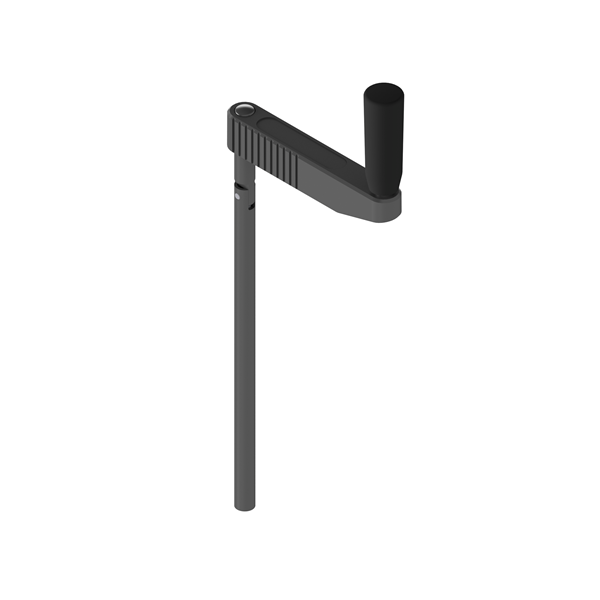

Inside hexagon 6mm l 90° foldable l Aluminium profile tube l Axle length 214,5mm Ø 12 mm l Glass-fibre reinforced plastic l Projection 110mmCrank handle grip and crank extension are made of glass-fibre reinforced synthetic material.The crank handle 5186 allows exact adjustment and can be folded by 90°. Furthermore, it is characterized by a modern design. Version internal hex 6 mm Crank extension 110 mm Axis length / Diameter 214,5 mm /  Ø 12 mm Axis version 90° foldable Material crank handle glass-fibre reinforced synthetic material Material crank extension glass-fibre reinforced synthetic material Weight 178g Material Aluminium black anodized To fix the crank handle we recommend our crank holder. Matching our crank handles you can also get bevel gears, worm gears and profile rods in our online shop.

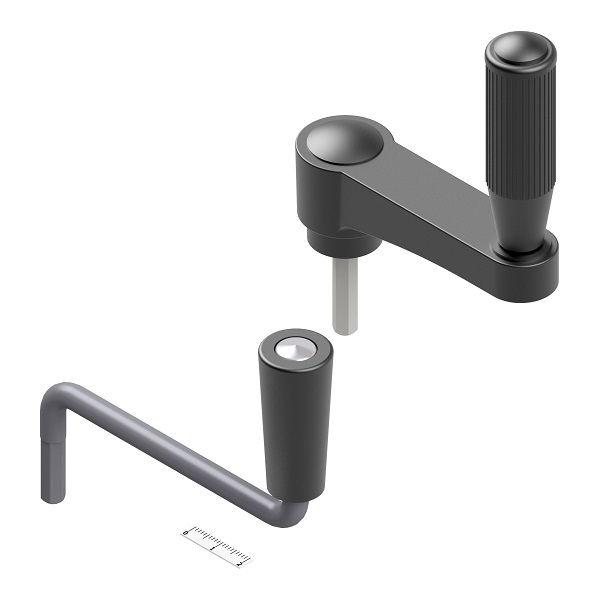

hexagon 7mm l 6 versions to choose from l Shaft length 33 - 93 mm l Glass-fibre reinforced plastic l Projection 65 - 105 mm l Insertion depth 12 - 60mm Features Our hand cranks in the 6kt SW6 design are available in various dimensions with regard to shaft length, throat depth and insertion depth. The hand cranks are characterized by their simple and at the same time modern design and are suitable for an easy and exact adjustment. In addition, our hand cranks are suitable for the profile tubes, bevel gearboxes and worm gearboxes offered in our store. Technical data Item number  5156.00-00 5157.00-00 5159.00-00 5165.00-00 5190.00-0000 5190.00-0013 Execution  6kant SW6 6kant SW6 6kant SW6 6kant SW6 6kant SW6 6kant SW6 Axis length  33mm 85mm 60mm 85,5mm 93mm 60mm Outreach  90mm 90mm 90mm 105mm 65mm 65mm Insertion depth  20mm 20mm 20mm 12mm 60mm 30mm Weight  63g 75g 68g 63g 63g 60g Material crank handle  glass fiber reinforced plastic glass fiber reinforced plastic glass fiber reinforced plastic glass fiber reinforced plastic glass fiber reinforced plastic glass fiber reinforced plastic Material Stainless steel Stainless steel Stainless steel Stainless steel galvanized galvanized Color crank body & handle  black black black black black black back to the overview

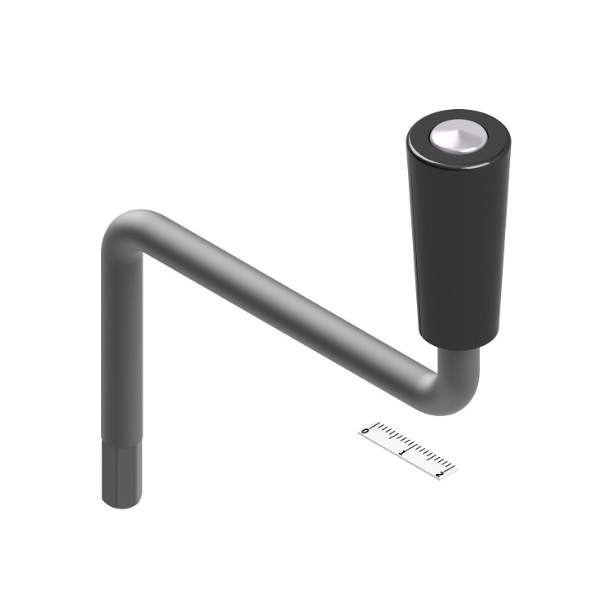

hexagon 7mm l 4 versions to choose from l Shaft length 62 - 129.5 mm l Glass-fibre reinforced plastic l Projection 65 - 110mm l Insertion depth 12 - 100mm Features Our hand cranks with a 6kt SW7 attachment have a modern design and are suitable for easy and precise adjustment. The crank handle and crank body are made of glass fiber reinforced plastic. In addition, the cranks can be selected in different variants depending on their axle length, throat depth and insertion depth. Matching to this crank handle you can also get profile tubes, bevel gearboxes and worm gearboxes in our store. Technical data Item number  5133.00-00 5180.00-0007 5190.00-0001 5190.00-0012 Execution  6kant SW7 6kant SW7 6kant SW7 6kant SW7 Axis length  62mm 80mm 89,5mm 129,5 Outreach  90mm 110mm 65mm 65mm Insertion depth  15m 12mm 60mm 100mm Weight  - 244g 98g 105g Material crank handle/ crank throat  glass fiber reinforced plastic  glass fiber reinforced plastic  glass fiber reinforced plastic  glass fiber reinforced plastic  Hexagonal version  Stainless steel  Stainless steel hardened, bright  galvanized  galvanized Color crank body & handle  black black black black  back to the overview

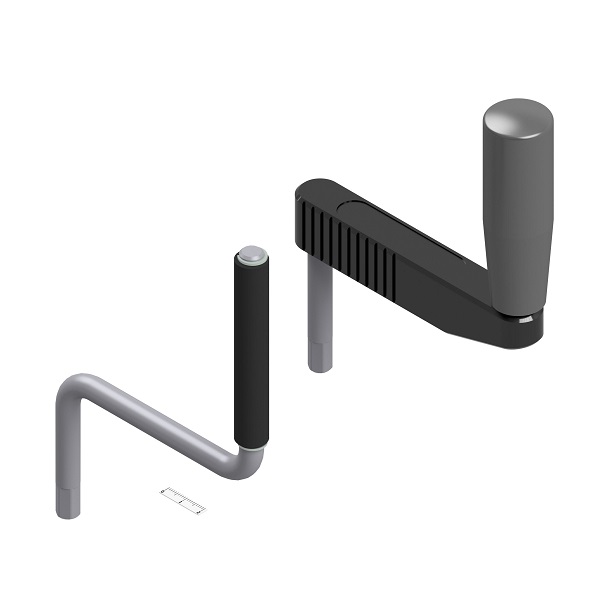

hexagon 9mm l 2 versions to choose from l Axle length 60 or 62mm l Projection 100 or 110mm l Insertion depth 15mm Features Various hand cranks with attachment 6kant SW9 in modern design for easy and exact adjustment. The crank handle and crank body are made of glass fiber reinforced plastic. Suitable for this crank handle you can also get profile tubes, bevel gears and worm gears in our store.  Technical data Article number 5108.00-00 5180.00-0000 Execution  6kt SW9 6kt SW9 Outreach  100mm 110mm Insertion depth  15mm 15mm Axis length  62mm 60mm Weight  260g 230g Material crank handle  glass fiber reinforced plastic  glass fiber reinforced plastic  Material crank throat  glass fiber reinforced plastic  glass fiber reinforced plastic  Hexagonal version  Stainless steel hardened, bright  Stainless steel hardened, bright Color  black black back to the overview

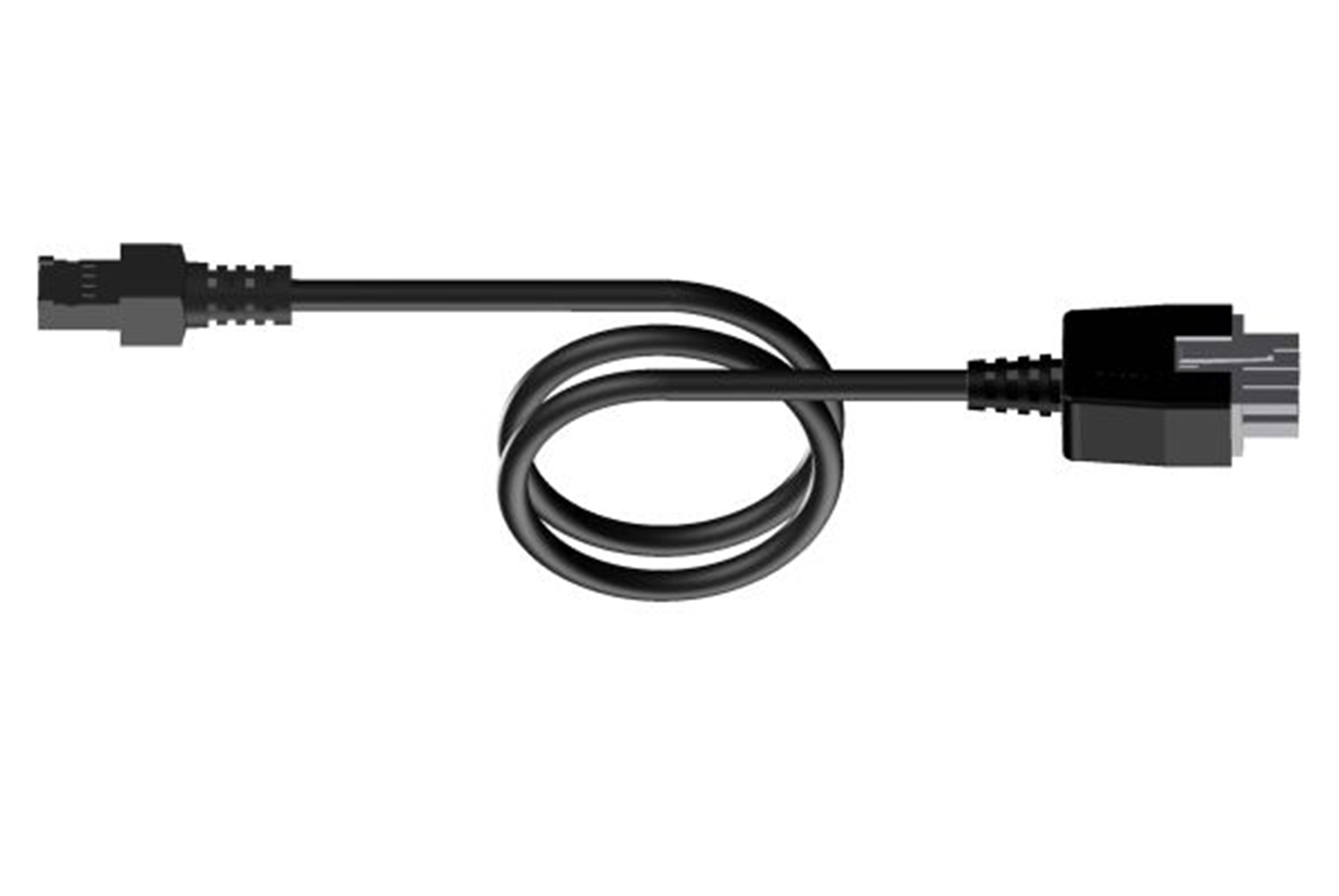

Motor cable with a length of 1750mm. The cables are available with or without invert power/sensor. The motor cables have two plugs: Plug 1: identical AMP-172160 6P Plug 2: identical Molex 557-08R210 8P oder plug JS-1149-08For use with the following drives: 3130 DC Motor drive 3120 Inline spindle drive 3121 DC Motor drive 3133.48 DC Motor

Motor cable with a length of 1950mm and 1000mm. The cables are available with or without invert power/sensor.  The motor cables have two plugs: Plug 1: identical AMP 8PPlug 2: identical DIN 41524 8P For use with the following drives: as spare part for: 3143.00-1XXX     as accessory for:  3143.00-2XXX back to the overview

Motor cable with a length of 1950mm and 1000mm. Particularity: cable Basic S / compact KTS. The motor cables have two plugs: Plug 1: identical Molex 557-08R210 8P or plug JS-1149-08Plug 2: identical AMP Serie HE 14 8P For use with the following drives: as spare part for: 3143.00-1XXX     as accessory for:  3143.00-2XXX back to the overview

Motor cable with a length of 1950mm. The motor cables have two plugs:Plug 1: (90°) identical AMP 8PPlug 2: identical DIN 41524 8P For use with the following drives: as spare part for: 3143.00-1XXX     as accessory for:  3143.00-2XXX

Y-cable for parallel operation with a length of 200mm. The terminals are made of brass with a nickel plated surface. The overmold is made of PVC. The cables are free of SVHC and CM. The operating temperature range is between 0°C and 85°C.  You can find the suitable hand switch here.

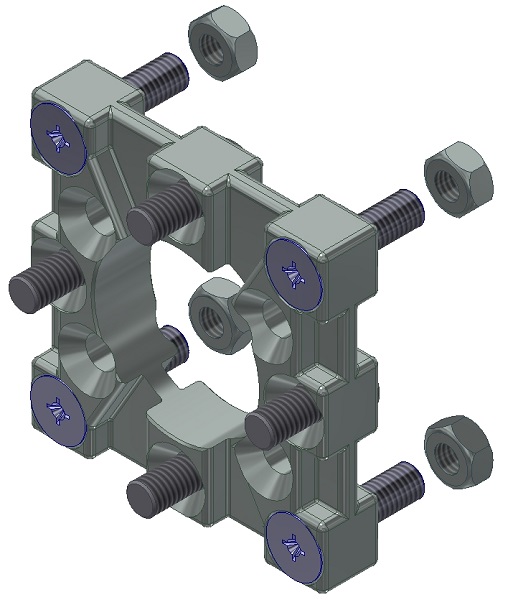

To ensure a secure fixing of our bevel gearboxes, we offer you a die-cast fixing flange (ZP5). It is used for individual and simple fixing of our cube gear units listed below: Number of bevel gears 2 Bevel gears 3 Bevel gears 4 Bevel gears On/Off  Hexagon socket SW6    Bevel gearbox 3870.00-1001 Bevel gearbox 3871.00-1001Bevel gearbox 3871.00-1002 Bevel gearbox 3872.00-1001 Hexagon socket SW7 Bevel gearbox 3870.00-1000Bevel gearbox 3870.00-1002 Bevel gearbox 3871.00-1003 Bevel gearbox 3872.00-1000 The delivery of the flange includes fastening material. Back to the overview

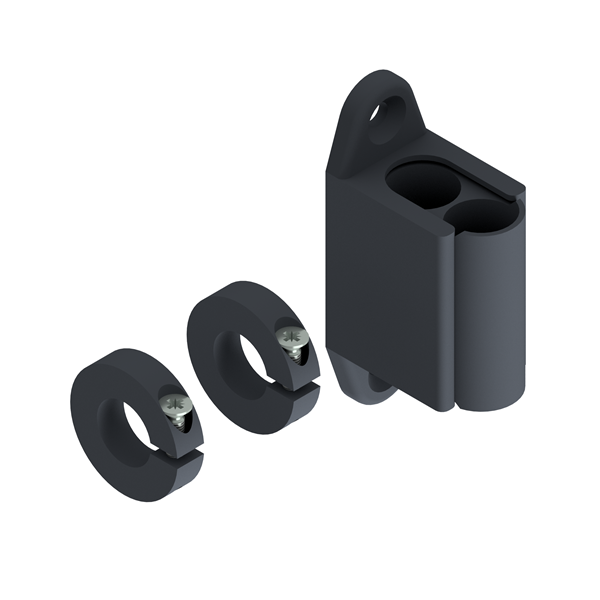

Accessories for hand cranks l Adjustable height from 12-45mm l With locking screw l Black plastic l For rods with 12mm diameterSet consisting of a crank holder and two clamping rings with fixing nut.The crank holder made of black plastic is suitable for rods with 12mm diameter. The holder can be adjusted in height from 12 to 45 mm.The clamping rings for fixing the crank rod to the crank holder are also made of black plastic.The optimal addition to our crank handle 5186.00-0000

Features This remote control consists of a radio transmitter (including battery, holder and fastening screws), radio receiver and operating instructions. This remote control is freely programmable and can be used for user-defined and application-specific control of your stepless adjustment. It is characterized by a clear design and ease of use. They can be used with all of our motor drives.. Special features Stepless adjustment User-defined and application-oriented control and control of the adjustment Ease of use Can be used with the Compact control and all Ketterer motor drives Special notes A manual switch with display is always required for programming and changing the stroke on site.

Features hand switchThe hand switch HSF-MDF-4M4-LD for motor drives has a display and four memory positions. The height and the stroke are set using the up-down buttons. The hand switch is freely programmable and can be used for user-defined and application-specific control of your stepless adjustment. The handset is characterized by a clear design and ease of use. They can be used with all of our motor drives.. Special features User-defined and application-specific control and control of the adjustmentEase of useCan be used with the Compact control and all Ketterer motor drivestechnical advice The hand switches with touch function require the Compacteco control with firmware version 1.9. A manual switch with display is always required for programming and changing the stroke on site.

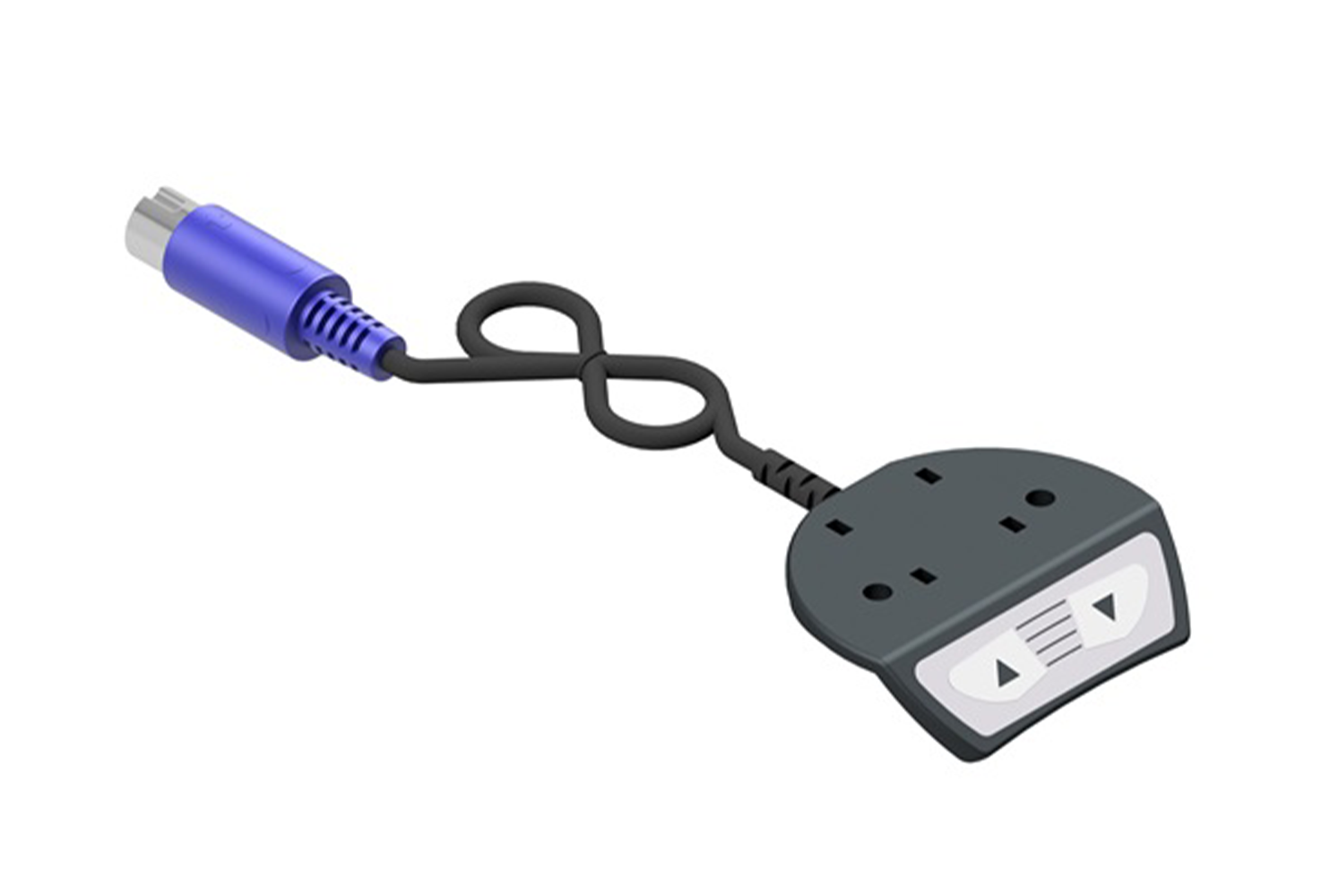

Simple up-down hand switch for an easy custom control of your stepless adjustment. The hand switch is characterized by a clear design and an ease of use. You can use it with the Compacteco control as well as with any of our motor drives. For parallel operation of hand controls, you can obtain the appropriate Y-cable from us.Supply voltage5VDC+/- 10%Power consumption (average)0mASwitching current50mALife endurance (Switching cycles)10.000Ambient temperature0 - 50°CCable length1800mm +/- 50mmDimensions (L,W,H)56mm x 66,9mm x 17,8mmWeight0,06kg (incl. cable)The hand switches with touch function need the Compacteco control with firmware version 1.9.For programming and varying of the stroke, a hand switch with display is required.

Features The hand switch HSU-C-FL-LD for motor drives has a display and four memory positions. The height and the stroke are set using the up-down buttons. The hand switch is freely programmable and can be used for user-defined and application-specific control of your stepless adjustment. The handset is characterized by a clear design and ease of use. They can be used with all of our motor drives.. Special features User-defined and application-specific control and control of the adjustment Ease of use Can be used with the Compact control and all Ketterer motor drives Technical advice The hand switches with touch function require the Compacteco control with firmware version 1.9. A manual switch with display is always required for programming and changing the stroke on site.

Features The hand switch TOUCH basic-DN manual switch for motor drives has up-down buttons with which the height and the stroke can be set. The hand switch is freely programmable and can be used for user-defined and application-specific control of your stepless adjustment. The handset is characterized by a clear design and ease of use. They can be used with all of our motor drives. Special features User-defined and application-specific control and control of the adjustment Ease of use Can be used with the Compact control and all Ketterer motor drives Technical advice The hand switches with touch function require the Compacteco control with firmware version 1.9. A manual switch with display is always required for programming and changing the stroke on site.

FeaturesThe hand switch HSU-C-FL-LD for motor drives has a display and four memory positions. The height and the stroke are set using the up-down buttons. The hand switch is freely programmable and can be used for user-defined and application-specific control of your stepless adjustment. The handset is characterized by a clear design and ease of use. They can be used with all of our motor drives. Special Features User-defined and application-specific control and control of the adjustmentEase of useCan be used with the Compact control and all Ketterer motor drivesTechnical advice The hand switches with touch function require the Compacteco control with firmware version 1.9. A manual switch with display is always required for programming and changing the stroke on site.

The hand switch is characterized by a clear design and an ease of use. You can use it with the Compacteco control as well as with any of our motor drives. This remote control consists of an IR transmitter (incl. battery and holder) and R-receiver. For parallel operation of hand controls, you can obtain the appropriate Y-cable from us. Supply voltage 5VDC+/- 10% Power consumption (average) 75mA Life endurance (Switching cycles) 10.000 Ambient temperature 0 - 50°C Cable length 2070mm +/- 50mm Dimensions (L,W,H) 141mm x 129mm x 9,6mmwithout mounting plate Weight 0,13kg (incl. cable) The hand switches with touch function need the Compacteco control with firmware version 1.9. For programming and varying of the stroke, a hand switch with display is required.
