Nominal speed 120rpm l Static pressure load 10,000N l Static tensile load 10,000 N l Maintenance-free l 2 versions selectable Features Electrified drive system consisting of motor, control, spindle and spindle nut. The drive is designed for high tensile and compressive forces. The self-locking system design ensures safe operation. In addition to the drive system, a 1-channel remote control is also included in the set.   Technical data Series 3062 Voltage 230V~/50Hz Current 1,0 A Inrush current (factor) X 1,2 Power motor 220 W Rated torque 5 Nm / Peak torque 7 Nm (kurzzeitig) No-load speed 134 U/min Rated speed 120 U/min bei 5Nm Operating mode 2,5 min on, 45 min off Ambient temperature / humidity  Operation T=-10°C …. +60°C /H max. 90% Storage: T=-15°C….+70°C / dry non-condensing Operating temperature Motor  overheating protection with shutdown at approx. 110°C Protection class IP40 Max. short-time static pressure load 10.000 N Max short-time static tensile load 10.000 N Spindle type 25 x 4 Travel speed at nominal load 8 mm/s Scope of delivery The set includes: 1 x electromotive spindle drive, consisting of the motor incl. control unit1 x 1-channel remote control1 x spindle 25 x 4 / 1,5 m long1 x spindle nut  1 x crank with safety spring for note locking (optional) Technical notes After shutdown due to overheating min 15 min pause time is necessary.

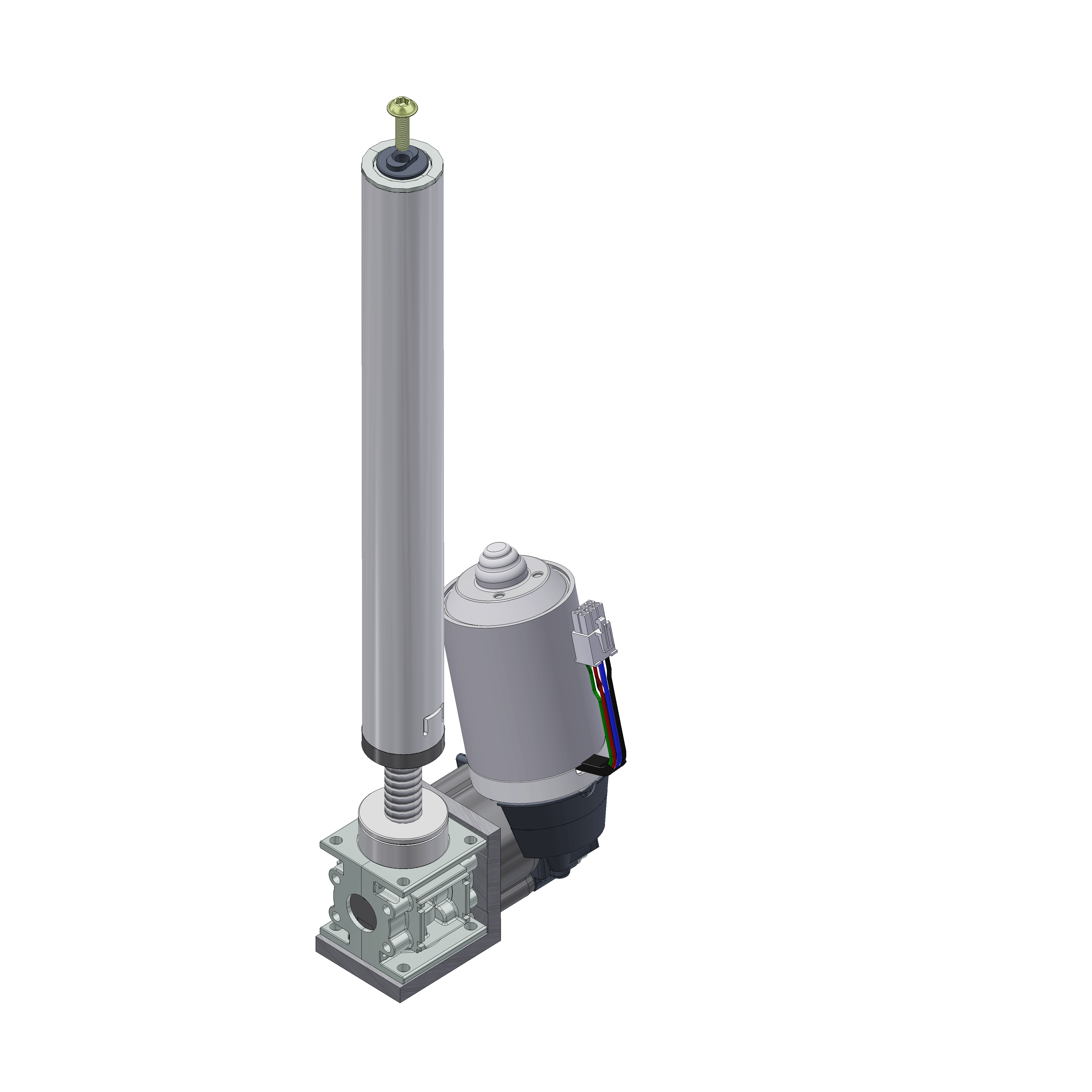

Idle speed 270 rpm l Traversing speed 12-45 mm/s l For push and pull movements l Powerful 24 V DC motor with worm gear unit Features Powerful 24 V DC motor with worm gear, designed for non-rotating through-spindle for push and pull movements.A cable with AMP connector and integrated Hall sensors allow simple and safe control of the entire system. Special features Two integrated Hall sensors for detecting rotations and the direction of rotation Various types of internal thread for continuous spindle Good self-locking properties Fast and powerful Spindle must be ordered separately Series 4778.00-0002 4778.00-0004 4778.00-0006 Drive motor DC Motor 24 V  DC Motor 24 V  DC Motor 24 V  Sensor / supply Hall/5 V DC/0,3 A Hall/5 V DC/0,3 A Hall/5 V DC/0,3 A Protection class IP30 IP30 IP30 Operating temperature 0° bis +30° 0° bis +30° 0° bis +30° Electric current (IN) at max. load  8 A 8 A 8 A Idle running speed 270 U/min 270 U/min 270 U/min Duty cycle idle speed 20% (bei 5 Min.) 20% (bei 5 Min.) 20% (bei 5 Min.) Duty cycle at max. load 10 s ON 240 s OFF 13 s ON 240 s OFF 8 s ON 240 s OFF Max. lifting force* 1900 N 3700 N 950 N Traverse speed (constant from F= 0 bis Fmax.)** 24mm / s 12 mm / s 45 mm / s Static Self locking *** 200 kg 380 kg 200 kg Output (Inner thread) SG16x8P4 RH Tr16x4 RH SG14x16P4 RH * Determined for service life of 10,000 double strokes** The controller regulates the system in such a way that the travel speed in the entire drive working range is kept as constant as possible*** In combination with controller, which has a short circuit brake Technical information The spindle is not included in the scope of delivery and must be ordered separately Attention: It is essential to observe the correct installation position (see installation example). The drive must be protected against the effects of lateral forces by a separate guide system. The operating range of the drive (rated torque) is determined for a service life of 10,000 double strokes. The holding torque of the drive can be increased by using a control unit with a short-circuit brake.

Lifting force 600Nm l Travelling speed 48 mm/s l Simple mounting l Installation space requirement 40x63 mm Features The electromotive solution for the sit/stand workstation. Infinitely variable height adjustment with customised lifting height. A very slim design enables the complete inline drive to be integrated into the table leg. Special features Simple attachment Integrated position measuring system 1-fold telescopic Technical specifications Series 3122.00-V01EXXXHXXX Motor DC Motor 24 V Sensor/Power supply Hall/5 V DC/0,3 A Protection class IP30 Duty cycle 20% (at 5 Min.) Idle running speed 180 rpm (24 V) 180 rpm * Stroke max. retracted height -171 mm Type of spindle SG12x16P4 RH ** Max. lifting force 600 N Max. drive torque 2,5 Nm Movement speed 48 mm/s * in conjunction with LogicData control unit Compact-3 ** other spindle types available on request Safety instructions Depending on the spindle used, the self-locking of the system must be checked.
