Drive with throughgoing spindel 3146
Versatile drive with through-spindle TR12x3, Hall sensors, and flexible installation – ensures precise push and pull movements.
| Quantity | Unit price |
|---|---|
| To 4 |
€161.48*
|
| To 9 |
€150.65*
|
| To 19 |
€139.94*
|
| From 20 |
€129.17*
|
Available in 30 days, delivery time 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Product number:
3146.00-0003
Weight:
1.39 kg
Product information "Drive with throughgoing spindel 3146"
Compact DC motor with an integrated worm gear, featuring a continuous, non-rotating spindle for precise push and pull movements.
Special Features

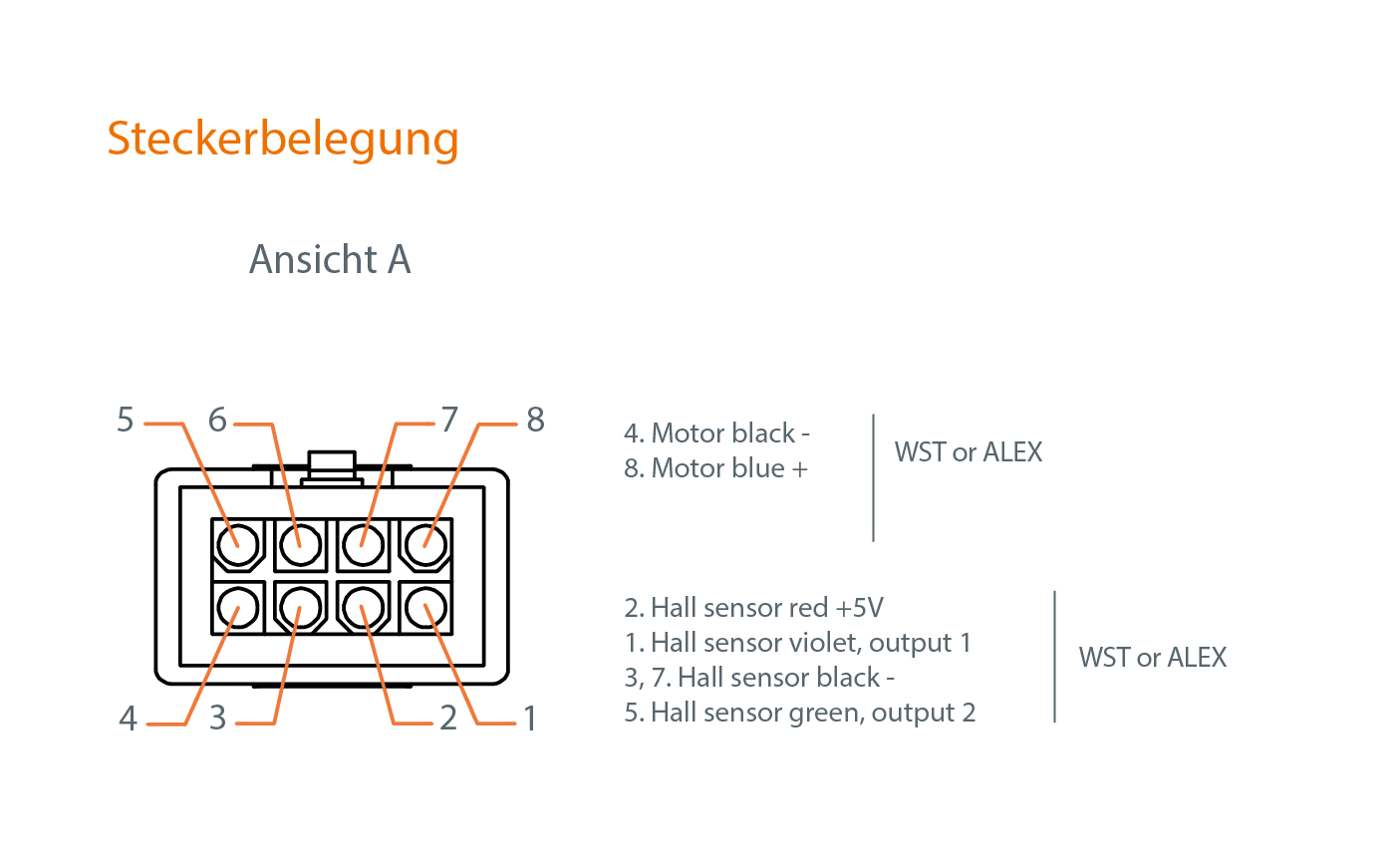

- Two integrated Hall sensors for measuring rotations and direction
- Includes a TR12x3 through-spindle
Technical Data
| Model | 3146.00-0003 | ||
| Motor |
DC Motor 24 V
| ||
|
Sensor/Power supply
|
Hall/5 V DC/0.3 A
| ||
|
Protection class
| IP30 | ||
|
Duty cycle
|
20% (at 5 min.)
| ||
|
Idle running speed
|
115 rpm (24 V) 120 rpm *
| ||
|
Type of spindle
|
Tr12x3 RH
| ||
| Spindle length |
| ||
| Max. drive torque | 1200 N | ||
| Movement speed | 6 mm/s * |
* in combination with LogicData control box Compact-3
Technical Notes
- The self-locking capability of the system must be evaluated depending on the spindle used

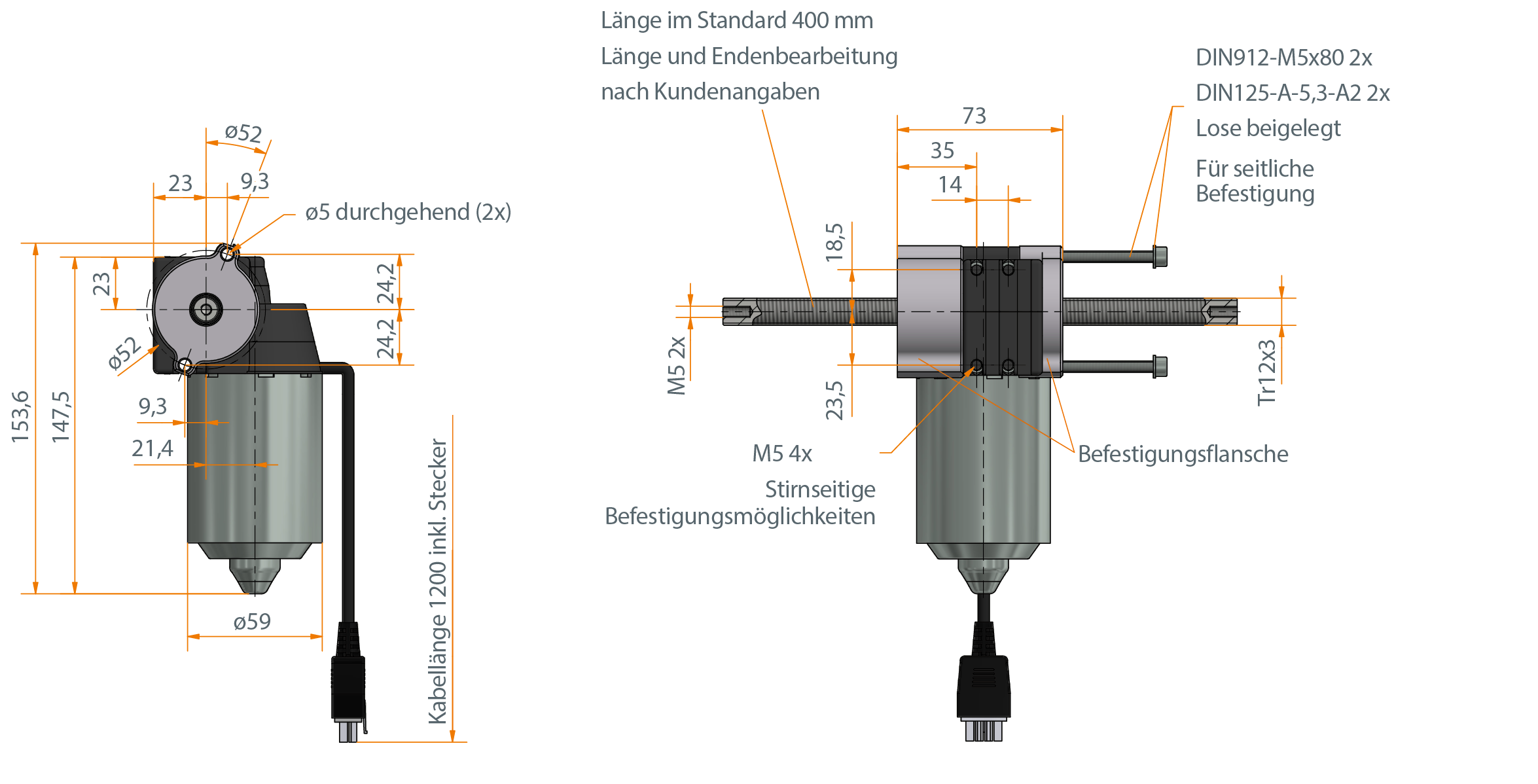

- Important Note: The mounting flanges are only loosely attached to the motor housing. For system installation, the side mounting holes should be used and secured with the provided screws. If side mounting is not required, the flanges can simply be omitted.
- The drive can be installed both horizontally and vertically
