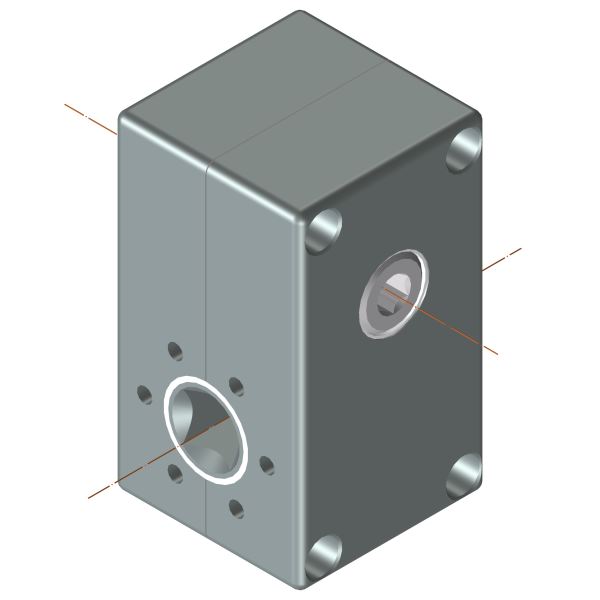

Worm gearbox for the deflection of a rotary movement at an angle of 90°.The gearbox is characterized by a compact design with maximum torque, sturdiness and smooth power transmission. A flexible screw fixing enables a simple mounting.Special features Maintenance-free Case hardened worm and cog wheel Housing made of zinc die-casting Size 40 x 40 x 70 mm Axial distance 25 mm Designed for the manual operation 4731.00-2242 Ratio 1:1 Max. output torque 2 Nm

Worm gearing for the deflection of a rotary movement at an angle of 90°.The gearbox is characterized by a compact design at maximum torque, sturdiness and smooth power transmission.A flexible screw fixing enables a simple mounting. Special features Maintenance-free Case hardened worm and cog wheel Housing made of zinc die-casting Size 40 x 40 x 70 mm Axial distance 25 mm Designed for the manual operation 4743.00-2151 4744.00-2251 Ratio 2:1 17:1 Max. output torque 3 Nm 3 Nm

Worm gearing for the deflection of a rotary movement at an angle of 90°. The Worm gearing for the deflection of a rotary movement at an angle of 90°. The gearbox is characterized by a compact design with maximum torque, sturdiness and smooth power transmission. A flexible screw fixing enables a simple mounting. Special features Maintenance-free Case hardened worm and cog wheel Housing made of zinc die-casting Size 40 x 40 x 70 mm Axial distance 25 mm Designed for the manual operation 4739.00-2311 4743.00-2311 4744.00-2311 4745.00-2311 Ratios 8,5:1 2:1 17:1 30:1 Max. output torque 9 Nm 3 Nm 12 Nm 17 Nm

Worm gear 4747 Universally applicable and maintenance-free worm gearbox with an axial distance of 14 mm and several different transmission ratios. The drive is located on the wide side of the gearbox. The worm wheel assembly is right-handed. The rotational direction on the shaft is arbitrary. The gearbox is characterized by a compact design with maximum torque, sturdiness and smooth power transmission. A flexible screw fixing enables a simple mounting. Special features Maintenance-free grease lubrication Case hardened worm and cog wheel Housing made of zinc die-casting Axial distance 14 mm Duty cycle 10 % at 5 min (30 s ON, 270 s OFF) Input speed 120 U/min Input / Output hex 6mm Size 42 x 35 x 17 mm 6 ratios as standard Technical data   4747.00-00 4749.00-00 4751.00-00 Ratio 4,33:1 2,5:1 1:1 Self-locking static yes no no Max. output torque 3 Nm 3 Nm 3 Nm Max. input torque 1,9 Nm 2,6 Nm 5,2 Nm   4752.00-00 4754.00-00 4755.00-00 Ratio 3.33:1 6:1 13:1 Self-locking static yes yes yes Max. output torque 3 Nm 3 Nm 3 Nm Max. input torque 2,4 Nm 1,8 Nm 1,3 Nm

Universally applicable and maintenance-free worm gearbox with an axial distance of 14 mm and several different transmission ratios. The drive is located on the wide side of the gearbox. The worm wheel assembly is right-handed. The rotational direction on the shaft is arbitrary. The gearbox is characterized by a compact design with maximum torque, sturdiness and smooth power transmission. A flexible screw fixing enables a simple mounting. Special features  Maintenance-free grease lubrication Case hardened worm and cog wheel Housing made of zinc die-casting Axial distance 14 mm Input / Output hex 6mm Size 42 x 35 x 17 mm 6 ratios as standard Speed range till: 50 rpm max. torque: 1 Nm Ratio: 1 : 1 Input/Output: hex 6mm Length of input: 2 x 13 mm Length of output: 25 mm Dimensions: 42 x 35 x 17 mm Weight: 100 g Self-locking: no On/Off duration: 20% (at 5 Min.) Allowable operating temperature: 0°C to 40°C Housing: Zinc die-casting Special features: Case hardened worm and cog wheel In our store you can also find technical accessories for this gear unit.

8 variants Transmission ratio 1:1 to 23:1 l Max torque 1.7 - 4 Nm l Outer dimensions 42x35x17 mm l Drive narrow side l Centre distance 14mm Worm gearbox  4748 The worm gear box have the drive on the narrow side of the gear. The worm gear set is clockwise. The direction of rotation on the shaft is arbitrary.The worm gear box boxis universally applicable, compact and maintenance-free in one size with a 14 mm centre distance and various reduction ratios. The gearbox has a flexible screw fastening, which enables easy assembly. Special features Maintenance-free grease lubrication Hardened steel worm and worm wheel Zinc die-cast housing Size 42 x 35 x 17 mm  7 Translations as standard Centre distance 14 mm ▪▪ Drive/ output 6ktSW6 4748.00-00     4750.00-00      4751.00-00      4753.00-00     Ratio 4,33:1 10:1 1:1 2,8:1 Static self-locking Ja Ja Nein Nein Max. output torque 3 Nm 4 Nm 2 Nm 3 Nm Max. input torque 1,7 Nm 1,7 Nm 4 Nm 2 Nm   4757.00-00     4758.00-00      4763.00-00       4767.00-00       Ratio 14:1 15:1 23:1 2:1 Static self-locking Ja Ja Ja Nein Max. output torque 5 Nm 4 Nm 3 Nm 3 Nm Max. input torque 1,8 Nm 1,3 Nm 1 Nm 2,8 Nm

7 reduction ratios from 1 : 1 to 65 : 1 l Anodised aluminium housing l With keyway 12 mm / 4 mm l Centre distance 15 mm Worm gear reducer Ket Motion 2015 Universally applicable and maintenance-free worm gearbox with an axial distance of 15 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 15 mm Input and Output: Drive: 6mm / 2mm key Backlash on the drive shaft: 1° +/- 0,5° Type: Worm made of case-hardened steel Worm wheel made of special brass with high wear resistance. Maintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 40 x 40 x 30 mm   Technical specifications Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Max.drive torquw M in Nm* Drive side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2015.00-S0PR47 47 : 1 yes 100/500/1000 1,7/1,4/1,2 0,11/0,09/0,08 200 200 34 2015.00-S0PR40 40 : 1 yes 100/500/1000 1,7/1,6/1,5 0,15/0,14/0,13 150 150 29 2015.00-S0PR30 30 : 1 no 100/500/1000 2,6/2,3/2,0 0,2/0,18/0,16 100 100 43 2015.00-S0PR18 18 : 1 no 100/500/1000 2,8/2,5/2,3 0,37/0,33/0,3 50 50 42 2015.00-S0PR12 12 : 1 no 100/500/1000 3,0/2,8/2,5 0,56/0,52/0,46 50 50 45 2015.00-S0PR05 5 : 1 no 100/500/1000 2,7/2,6/2,4 0,89/0,85/0,79 50 50 61 2015.00-S0PR01 1 : 1 no 100/500/1000 1,0/0,6/0,3 1,28/0,77/0,38 50 50 78 * Short-term peak load <1s Axial load on the output side 500 Nm Worm gearbox application Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

Worm gearbox Ket Motion 2015 Universally applicable and maintenance-free worm gearbox with an axial distance of 15 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary. Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 15 mm Input and Output: Drive: 6mm / 2mm key Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 40 x 40 x 30 mm Technical specifications Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Max.drive torque M in Nm* Drive side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2015.00-D0PR47 47 : 1 yes 100/500/1000 1,7/1,4/1,2 0,11/0,09/0,08 200 200 34 2015.00-D0PR40 40 : 1 yes 100/500/1000 1,7/1,6/1,5 0,15/0,14/0,13 150 150 29 2015.00-D0PR30 30 : 1 no 100/500/1000 2,6/2,3/2,0 0,2/0,18/0,16 100 100 43 2015.00-D0PR18 18 : 1 no 100/500/1000 2,8/2,5/2,3 0,37/0,33/0,3 50 50 42 2015.00-D0PR12 12 : 1 no 100/500/1000 3,0/2,8/2,5 0,56/0,52/0,46 50 50 45 2015.00-D0PR05 5 : 1 no 100/500/1000 2,7/2,6/2,4 0,89/0,85/0,79 50 50 61 2015.00-D0PR01 1 : 1 no 100/500/1000 1,0/0,6/0,3 1,28/0,77/0,38 50 50 78 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect.The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l housing anodised aluminium l with keyway 12mm/4mm l shaft distance 20mm Worm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm key Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-S0PR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-S0PR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-S0PR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-S0PR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-S0PR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-S0PR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-S0PR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-S0PR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-S0PR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l housing anodised aluminium l with keyway 12mm/4mm l shaft distance 20mm Worm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: 12mm / 4mm feather key groove Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical information Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-D0PR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-D0PR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-D0PR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-D0PR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-D0PR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-D0PR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-D0PR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-D0PR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,8/2,3/1,7 200 200 70 2020.00-D0PR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1sAxial load on the output side 500 Nm Application Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l anodised aluminium housing l with splined shaft profile DIN5463-6X16x20 l shaft distance 20mm Worm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm keyOutput: splined hub profile DIN 5463 6x16x20 Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-K0PR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-K0PR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-K0PR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-K0PR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-S0PR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-K0PR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-K0PR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-K0PR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-K0PR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l anodised aluminium housing l with splined shaft profile DIN5463-6X16x20 l shaft distance 20mmWorm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Drive shaft diameter 12mm / 4mm feather key groove Splined hub profile output DIN5463 6x16x20 Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical information Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-D0KR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-D0KR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-D0KR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-D0KR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-D0KR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-D0KR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-D0KR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-D0KR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-D0KR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1sAxial load on the output side 500 Nm Application Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gearbox can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l anodised aluminium housing l with turntable l shaft distance 20 mm l maintenance-free grease lubrication Worm gear Ket-Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm key Output: Turntable 20mm Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: maintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-D0PR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-D0PR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-D0PR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-D0PR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-D0PR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-D0PR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-D0PR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-D0PR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-D0PR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l anodised aluminium housing l with turntable l shaft distance 20 mm l maintenance-free grease lubricationWorm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm key Output: Turntable 20mm Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: maintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-D0DR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-D0DR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-D0DR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-D0DR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-D0DR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-D0DR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-D0DR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-D0DR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-D0DR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

Features Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary. Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm key Output: for spindle TR14x2 Nr. 13713.14-V00L1000 Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i  Self-locking static Output- speed range n in rpm Max. output torque M in Nm Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-S0G0R65 65 : 1 ja 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-S0G0R18 18 : 1 ja 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-S0G0R05 5 : 1 nein 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 * Short-term peak load <1s Axial load on the output side 500 NmApplicationWorm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

3 reduction ratios from 5:1 to 65:1 l Housing anodised aluminium l For spindle TR14x2 l Keyway 12mm/4mm l Centre distance 20mm Ket Motion 2020 worm gearbox unit Universal and maintenance-free worm gear unit in one size with a centre distance of 20 mm. The worm gears with two drive journals are available in 3 different ratios. The housing is encapsulated against grease leakage and dust exposure. The worm gear set is left-handed. The direction of rotation on the shaft is arbitrary. Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm key Output: for spindle TR14x2 Nr. 13713.14-V00L1000 Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i  Self-locking static Output- speed range n in rpm Max. output torque M in Nm Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-D0G0R65 65 : 1 ja 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-D0G0R18 18 : 1 ja 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-D0G0R05 5 : 1 nein 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 * Short-term peak load <1s Axial load on the output side 500 Nm ApplicationWorm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

Reduction ratios 65:1 l Housing anodised aluminium l With turntable l Axle spacing 20mm l Maintenance-free grease lubrication l Backlash-free Backlash-free worm gearbox Ket-Motion with rotary plate and one drive journal 65:1 Centre distance 20mm 1 Nm Universal and maintenance-free worm gearbox in one size with a centre distance of 20 mm. The housing is encapsulated against grease leakage and dust exposure. The worm gear set is left-handed. The direction of rotation on the shaft is arbitrary.Lifetime of 1,000 hours at: full load and Input speed of 100 rpm and  Duty cycle 10% at 5 min and Ambient temperature 20 C° Axial load on drive side max. 600N Axial load on output side max. 1500N   Duty cycle: 10 % to 5 Min ( 30 sec ON, 4,5 min OFF) Operating temperature: -20 to 60 C° Output torque: max 1Nm Self-locking: yes Centre distance: 20 mm Drive and downforce: Drive : 12mm / 4mm keyOutput : Rotary plate 44mm Perm. forces output side(axial and radial): 500 N Reverse play: <0,05° to 0,1Nm <0,5° to 1 Nm Execution: Maintenance-free Grease lubricationfree of play Housing: Housing made of anodised aluminium External dimensions: 60 x 60 x 35 mm   Further translations on request. Application Worm gearboxes transmit the motive force at right angles via a sliding effect. The gearboxes are characterised by their low-noise operation and robustness. The worm gearbox can be used for high power transmission in confined spaces.

Reduction ratios 65:1 l Housing anodised aluminium l With turntable l Axle spacing 20mm l Maintenance-free grease lubrication l Backlash-free Backlash-free worm gearbox Ket-Motion with rotary plate and two drive journal | 65:1 | Centre distance 20mm | 1 Nm Universal and maintenance-free worm gearbox in one size with a centre distance of 20 mm. The housing is encapsulated against grease leakage and dust exposure. The worm gear set is left-handed. The direction of rotation on the shaft is arbitrary.Lifetime of 1,000 hours at: full load and Input speed of 100 rpm and  Duty cycle 10% at 5 min and Ambient temperature 20 C° Axial load on drive side max. 600N Axial load on output side max. 1500N Duty cycle: 10 % to 5 Min ( 30 sec ON, 4,5 min OFF) Operating temperature: -20 to 60 C° Output torque: max 1Nm Self-locking: yes Centre distance: 20 mm Drive and downforce: Drive : 12mm / 4mm keyOutput : Rotary plate 44mm Perm. forces output side (axial and radial): 500 N Reverse play: <0,05° to 0,1Nm <0,5° to 1 Nm Execution: Maintenance-free Grease lubricationfree of play Housing: Housing made of anodised aluminium External dimensions: 60 x 60 x 35 mm   Further translations on request. Application Worm gearsbox transmit the motive force at right angles via a sliding effect. The gearboxes are characterised by their low-noise operation and robustness. The worm gearboxes can be used for high power transmission in confined spaces.

Worm gearbox  Ket Motion 2030 Universally usable and maintenance-free worm gearbox with an axis distance of 30 mm and with nine different reduction ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm gearbox pair is left-handed. The direction of rotation on the shaft is arbitrary. Service life of 1,000 hours with: full load and   input speed of 500 rpm and  duty cycle 20% with 5 min and  ambient temperature 20 °C   Duty cycle of: 20 % bei 5 Min ( 1 min ON, 4 min OFF) amnient temperature: -20 bis 60 C° Axis distance: 30 mm Drive and output: Drive : 12j6 / 4mm feather key groove Output : 14H7 / 5mm feather key groove Permissible force on drive side: FA= 800 N when FR= 0 N and FR= 800 N when FA= 0 N Backlash on the drive shaft: 1° +/- 0,5° Execution: Case hardened steel worm and worm wheelMaintenance-free grease lubrication Housing: Aluminium housing, anodized  External dimensions: 80 x 80 x 40 mm Technical data Item number Ratio i Self-locking static Output speed rangen in rpm Max. output torque M in Nm Max. drive torque M in Nm Drive side Degree of efficiency in % Radial force1) FR in N Axial force2) FA in N 2030.00-S0PR64 64 : 1 yes 100/500/1000 8,5/7,5/6,0 0,5/0,4/0,3 700 600 27 2030.00-S0PR45 45 : 1 yes 100/500/1000 10,5/9,5/9,0 0,9/0,8/0,8 700 600 25 2030.00-S0PR34 34 : 1 yes 100/500/1000 12,0/11,0/10,0 1,2/1,1/1,0 600 500 29 2030.00-S0PR25 25 : 1 yes 100/500/1000 13,5/12,0/11,0 1,3/1,2/1,1 500 500 41 2030.00-S0PR20 20 : 1 yes 100/500/1000 15,0/13,5/12,0 1,7/1,6/1,4 500 400 43 2030.00-S0PR17 17 : 1 no 100/500/1000 17,0/15,0/14,0 2,2/1,9/1,8 400 400 46 2030.00-S0PR10 10 : 1 no 100/500/1000 20,0/18,0/16,0 3,4/3,1/2,8 400 300 58 2030.00-S0PR05 5 : 1 no 100/500/1000 19,0/17,0/15,0 5,4/4,9/4,3 400 300 70 2030.00-S0PR01 1 : 1 no 100/500/1000 2,0/1,5/1,0 2,7/2,1/1,4 400 300 73   1) The values of FR apply only when FA = 0 N2) The values of FA apply only when FR = 0 N Application  Worm gearboxes transmit the motive force at right angles via a sliding action. The gear units are characterized by their low-noise operation and robustness. The worm gearbox can be used for high power transmission in confined spaces. Back to the overview

Worm gearbox Ket Motion 2030 Universally usable and maintenance-free worm gear with an axis distance of 30 mm and with nine different reduction ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm gear pair is left-handed. The direction of rotation on the shaft is arbitrary. Service life of 1,000 hours with: full load and   input speed of 500 rpm and  duty cycle 20% with 5 min and  ambient temperature 20 °C   Duty cycle of: 20 % bei 5 Min ( 1 min ON, 4 min OFF) amnient temperature: -20 bis 60 C° Axis distance: 30 mm Drive and output: Drive : 12j6 / 4mm feather key groove Output : 14H7 / 5mm feather key groove Permissible force on drive side: FA= 800 N when FR= 0 N and FR= 800 N when FA= 0 N Backlash on the drive shaft: 1° +/- 0,5° Execution: Case hardened steel worm and worm wheelMaintenance-free grease lubrication Housing: Aluminium housing, anodized  External dimensions: 80 x 80 x 40 mm Technical data Item number Ratio i Self-locking static Output speed range n in rpm Max. output torque M in Nm Max. drive torque M in Nm Drive side Degree of efficiency in % Radial force1) FR in N Axial force2) FA in N 2030.00-D0PR64 64 : 1 yes 100/500/1000 8,5/7,5/6,0 0,5/0,4/0,3 700 600 27 2030.00-D0PR45 45 : 1 yes 100/500/1000 10,5/9,5/9,0 0,9/0,8/0,8 700 600 25 2030.00-D0PR34 34 : 1 yes 100/500/1000 12,0/11,0/10,0 1,2/1,1/1,0 600 500 29 2030.00-D0PR25 25 : 1 yes 100/500/1000 13,5/12,0/11,0 1,3/1,2/1,1 500 500 41 2030.00-D0PR20 20 : 1 yes 100/500/1000 15,0/13,5/12,0 1,7/1,6/1,4 500 400 43 2030.00-D0PR17 17 : 1 no 100/500/1000 17,0/15,0/14,0 2,2/1,9/1,8 400 400 46 2030.00-D0PR10 10 : 1 no 100/500/1000 20,0/18,0/16,0 3,4/3,1/2,8 400 300 58 2030.00-D0PR05 5 : 1 no 100/500/1000 19,0/17,0/15,0 5,4/4,9/4,3 400 300 70 2030.00-D0PR01 1 : 1 no 100/500/1000 2,0/1,5/1,0 2,7/2,1/1,4 400 300 73    1) The values of FR apply only when FA = 0 N2) The values of FA apply only when FR = 0 N Application Worm gearboxes transmit the motive force at right angles via a sliding action. The gear units are characterized by their low-noise operation and robustness. The worm gearbox can be used for high power transmission in confined spaces. Back to the overview

9 reduction ratios from 1:1 to 65:1 l material-saving zinc housing l with keyway 12mm/4mm l centre distance 20mm  Worm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm key Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Zinc External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i Self-locking static Output- speed rangen in rpm Max. output torqueM in Nm  Peak torque output* Max. drive torqueM in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-SZPR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-SZPR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-SZPR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-SZPR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-SZPR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-SZPR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-SZPR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-SZPR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-SZPR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l material-saving zinc housing l with keyway 12mm/4mm l centre distance 20mm  Worm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox unit in one size with a centre distance of 20 mm. The worm gear units with two drive journals are available in 9 different ratios. The housing is encapsulated against grease leakage and dust exposure. The worm gearbox set is left-handed. The direction of rotation on the shaft is arbitrary.   Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm key Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Zinc External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i Self-locking static Output- speed rangen in rpm Max. output torqueM in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-DZPR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-DZPR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-DZPR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-DZPR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-DZPR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-DZPR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-DZPR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-DZPR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-DZPR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l material-saving zinc housing l with splined shaft profile DIN5463-6X16x20 l centre distance 20mm Worm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm keyOutput: splined hub profile DIN 5463 6x16x20 Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i Self-locking static Output- speed range n in rpm Max. output torque M in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-SZKR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-SZKR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-SZKR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-SZKR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-SZKR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-SZKR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-SZKR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-SZKR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-SZKR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.

9 reduction ratios from 1:1 to 65:1 l material-saving zinc housing l with splined shaft profile DIN5463-6X16x20 l centre distance 20mm Worm gearbox Ket Motion 2020 Universally applicable and maintenance-free worm gearbox with an axial distance of 20 mm and seven different transmission ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm wheel assembly is left-handed. The direction of rotation on the shaft is arbitrary.  Lifetime of 1000 hours with: full load and  input speed of 500 rpm and  duty cycle 20% with 5 min and ambient temperature 20 C° On/Off duration: 20 % at 5Min ( 1 min ON, 4 min OFF) Permitted operating temperature: -20 to 60 C° Axial distance: 20 mm Input and Output: Drive: 12mm / 4mm keyOutput: splined hub profile DIN 5463 6x16x20 Permitted forces output side (axial and radial): 500 N Backlash on the drive shaft: 1° +/- 0,5° Type: case hardened worm and cog wheelmaintenance-free grease lubrication Housing: Aluminium, anodized External dimension: 60 x 60 x 35 mm Technical specifications Item number ratio i Self-locking static Output- speed rangen in rpm Max. output torqueM in Nm  Peak torque output* Max. drive torque M in Nm Input side Degree of efficiency in % Radial force 1) FR in N Axial force 2) FA in N 2020.00-K0PR65 65 : 1 yes 100/500/1000 4,5/3,8/3,0 15 Nm 0,2/0,2/0,2 500 500 29 2020.00-K0PR40 40 : 1 yes 100/500/1000 5,5/4,8/4,0 20 Nm 0,4/0,3/0,3 400 400 39 2020.00-K0PR30 30 : 1 no 100/500/1000 8,5/7,0/5,5 30 Nm 0,6/0,5/0,4 350 350 45 2020.00-K0PR23 23 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 0,9/0,7/0,5 250 250 50 2020.00-S0PR18 18 : 1 no 100/500/1000 11,0/9,0/7,0 60 Nm 1,1/0,9/0,7 250 250 55 2020.00-K0PR15 15 : 1 no 100/500/1000 12,0/10,0/8,0 70 Nm 1,5/1,3/1,0 250 250 52 2020.00-K0PR13 13 : 1 no 100/500/1000 15,0/13,0/11,0 75 Nm 2,1/1,8/1,5 200 200 56 2020.00-K0PR05 5 : 1 no 100/500/1000 10,0/8,0/6,0 50 Nm 2,9/2,3/1,7 200 200 70 2020.00-K0PR01 1 : 1 no 100/500/1000 1,5/1,0/0,65 15 Nm 2,1/1,4/0,9 250 250 73 * Short-term peak load <1s Axial load on the output side 500 Nm Application worm gear 65: 1 - 1: 1 Worm wheels transmit the motive force at right angles via a sliding effect. The gearboxes are characterized by their low-noise operation and robustness. The worm gears can be used for high power transmissions in tight spaces.
