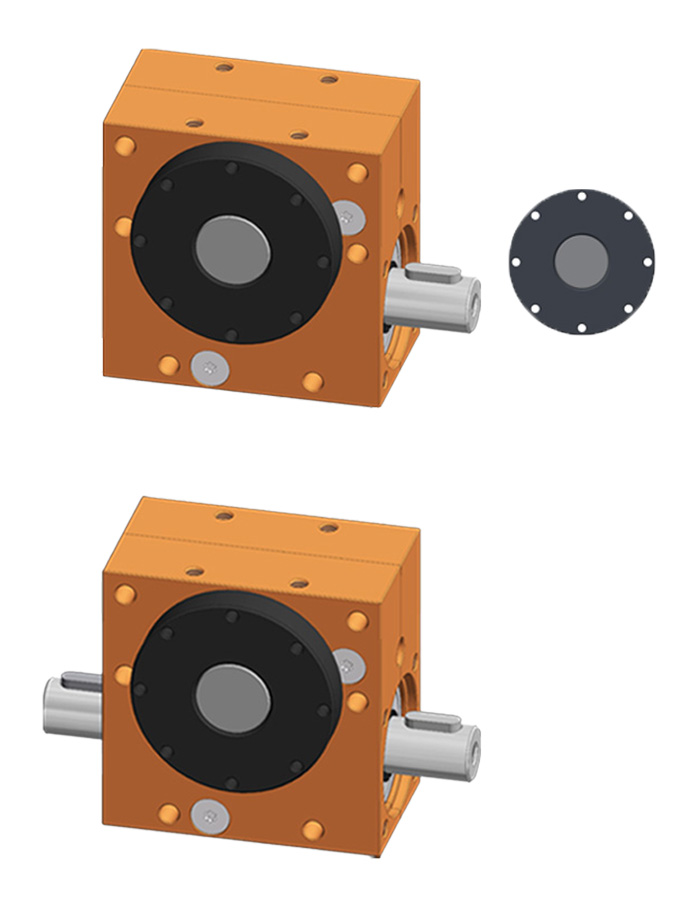

Low-backlash gear Ket-Motion 2020 DS with turntable
| Quantity | Unit price |
|---|---|
| To 4 |
€229.50*
|
| To 9 |
€221.00*
|
| To 19 |
€212.50*
|
| From 20 |
€204.00*
|
Available, delivery time: 1-3 days
Product information " Low-backlash gear Ket-Motion 2020 DS with turntable"
The low-backlash and maintenance-free worm gear is ideal for demanding positioning tasks and high-precision measurement applications. Its sealed housing prevents grease leakage and reliably protects against dust. The rotation direction of the shaft can be freely selected.
Special Features
- Maintenance-free grease lubrication
- Housing: Anodized aluminium
- Gear ratio: 65:1
- Minimal blacklash:
< 0,05° (3') to MDrive = 0,1 Nm
< 0,5° (30') to MDrive = 1 Nm - Duty cycle: 10% in a 5-minute cycle (0.5 min ON, 4.5 min OFF)
-
Service life: Up to 1,000 operating hours under the following conditions:
- Full load
- Input speed of 100 RPM
- Duty cycle of 10% in a 5-minute cycle
- Ambient temperature of 20°C
- Full load
Technical data
| Item number | Reduction ratio i
| Self-locking static |
Max. output-speed n in min -1 |
Max. output-torque M in Nm |
Max. drive-torque M in Ncm
|
Max. axial load on drive side in N |
Max. axial load on output side in N |
Degree of efficiency in %
|
|
2020.00-S0DS65 2020.00-D0DS65 | 65:1 | yes | 100 | 1 | 5 | 600 | 1500 | 35 |
Note: The link will take you to our Nextcloud platform, where you
can directly download the STEP file. Please be aware that you will be
redirected to an external site.
