Electric motor drive system 3062
| Quantity | Unit price |
|---|---|
| To 4 |
€1,074.00*
|
| To 9 |
€1,035.18*
|
| To 19 |
€1,009.30*
|
| From 20 |
€980.83*
|
Available, delivery time: 1-3 days
Product information "Electric motor drive system 3062"
Nominal speed 120rpm l Static pressure load 10,000N l Static tensile load 10,000 N l Maintenance-free l 2 versions selectable
Features
Electrified drive system consisting of motor, control, spindle and spindle nut. The drive is designed for high tensile and compressive forces. The self-locking system design ensures safe operation. In addition to the drive system, a 1-channel remote control is also included in the set.

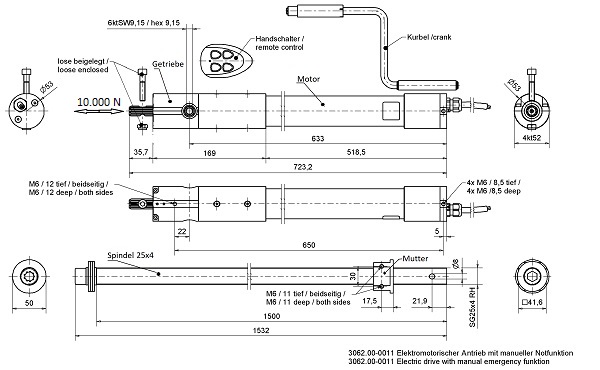

Technical data
| Series | 3062 |
| Voltage | 230V~/50Hz |
| Current | 1,0 A |
| Inrush current (factor) | X 1,2 |
| Power motor | 220 W |
| Rated torque | 5 Nm / |
| Peak torque | 7 Nm (kurzzeitig) |
| No-load speed | 134 U/min |
| Rated speed | 120 U/min bei 5Nm |
| Operating mode | 2,5 min on, 45 min off |
| Ambient temperature / humidity | Operation T=-10°C …. +60°C /H max. 90% Storage: T=-15°C….+70°C / dry non-condensing |
| Operating temperature Motor | overheating protection with shutdown at approx. 110°C |
| Protection class | IP40 |
| Max. short-time static pressure load | 10.000 N |
| Max short-time static tensile load | 10.000 N |
| Spindle type | 25 x 4 |
| Travel speed at nominal load | 8 mm/s |
Scope of delivery

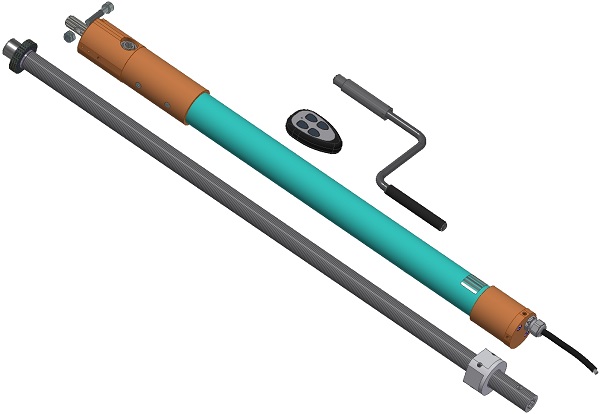

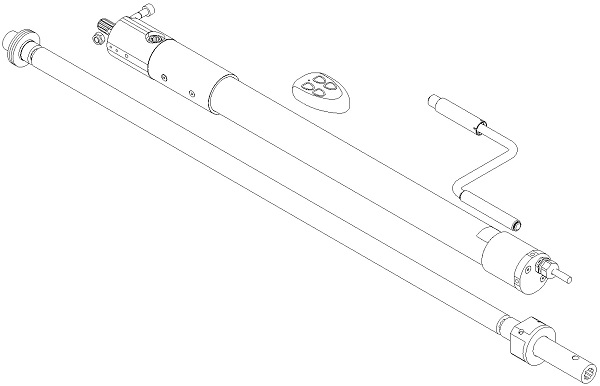

The set includes:
1 x electromotive spindle drive, consisting of the motor incl. control unit
1 x 1-channel remote control
1 x spindle 25 x 4 / 1,5 m long
1 x spindle nut
1 x crank with safety spring for note locking (optional)
Technical notes
After shutdown due to overheating min 15 min pause time is necessary.
