Inline spindle drive 3120 Heavy load
| Quantity | Unit price |
|---|---|
| To 4 |
€149.46*
|
| To 9 |
€139.47*
|
| To 19 |
€129.47*
|
| From 20 |
€119.54*
|
Available in 30 days, delivery time 1-3 days
Product information "Inline spindle drive 3120 Heavy load"
An electromechanical spindle drive with a matching spindle nut enables stepless adjustment of the stroke height. Thanks to its slim design, the drive fits seamlessly into narrow guides and can move loads of up to 250 kg.
Special Features
The compact inline design allows the entire drive to be integrated directly into the table leg.
- Slim inline design
- Integrated position measurement system
- Spindle nut made of POM-C included

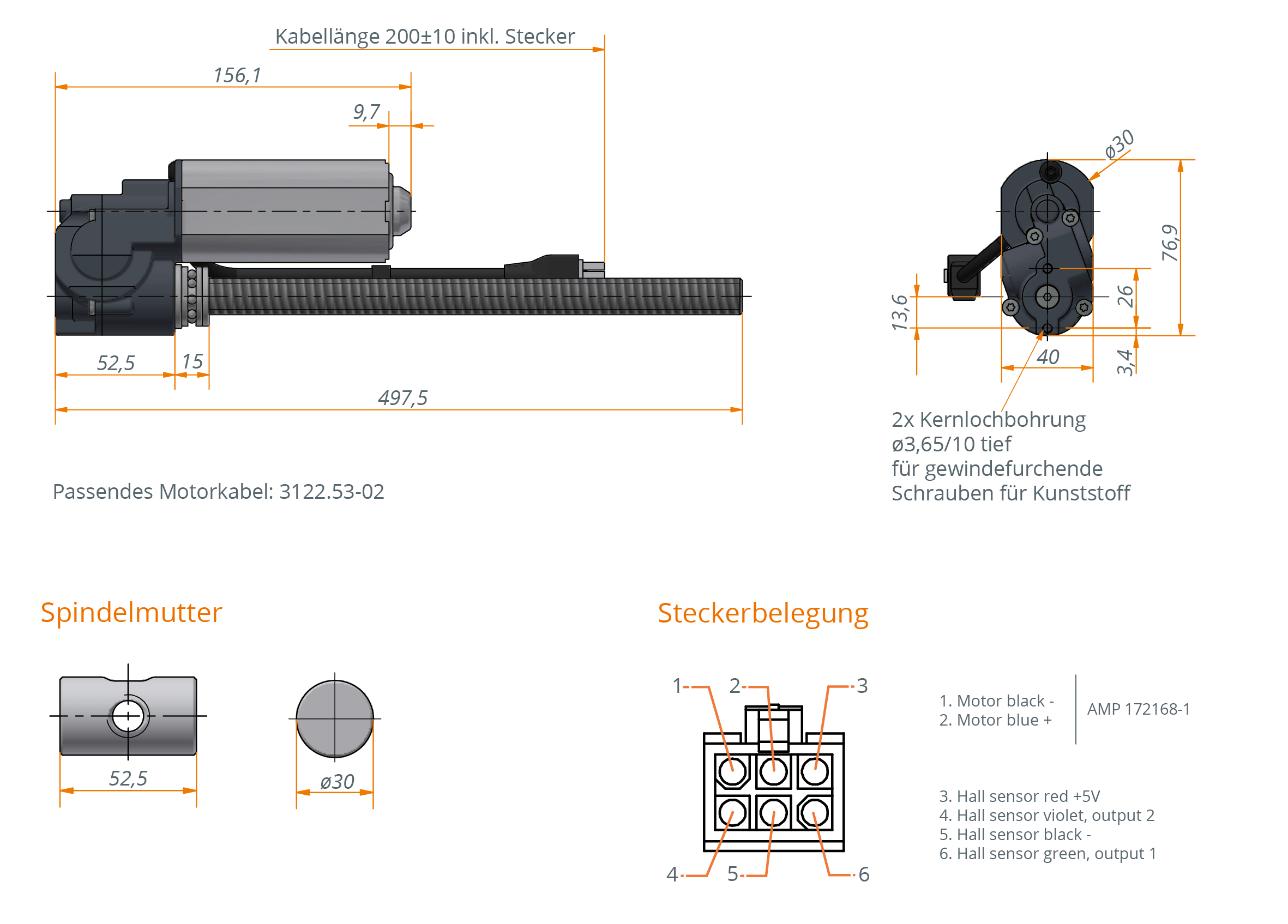

Technical Data
| Model | 3120.00-1000 |
| Motor |
DC Motor 24 V
|
|
Sensor/Power supply
|
Hall/5 V DC/0.3 A
|
| Protection class | IP30 |
| Duty cycle |
20% (at 5 min.)
|
|
Idle running speed
|
100 rpm (24 V) 150 rpm * |
| Stroke | 430 mm |
| Type of spindle | Tr16x4RH |
|
Max. lifting force
| 2500 N |
| Max. drive torque | 5 Nm |
| Movement speed | 10 mm/s |
| Cable | 0.2 m, connector AMP 6 Pin |
* in combination with LogicData control box Compact-3

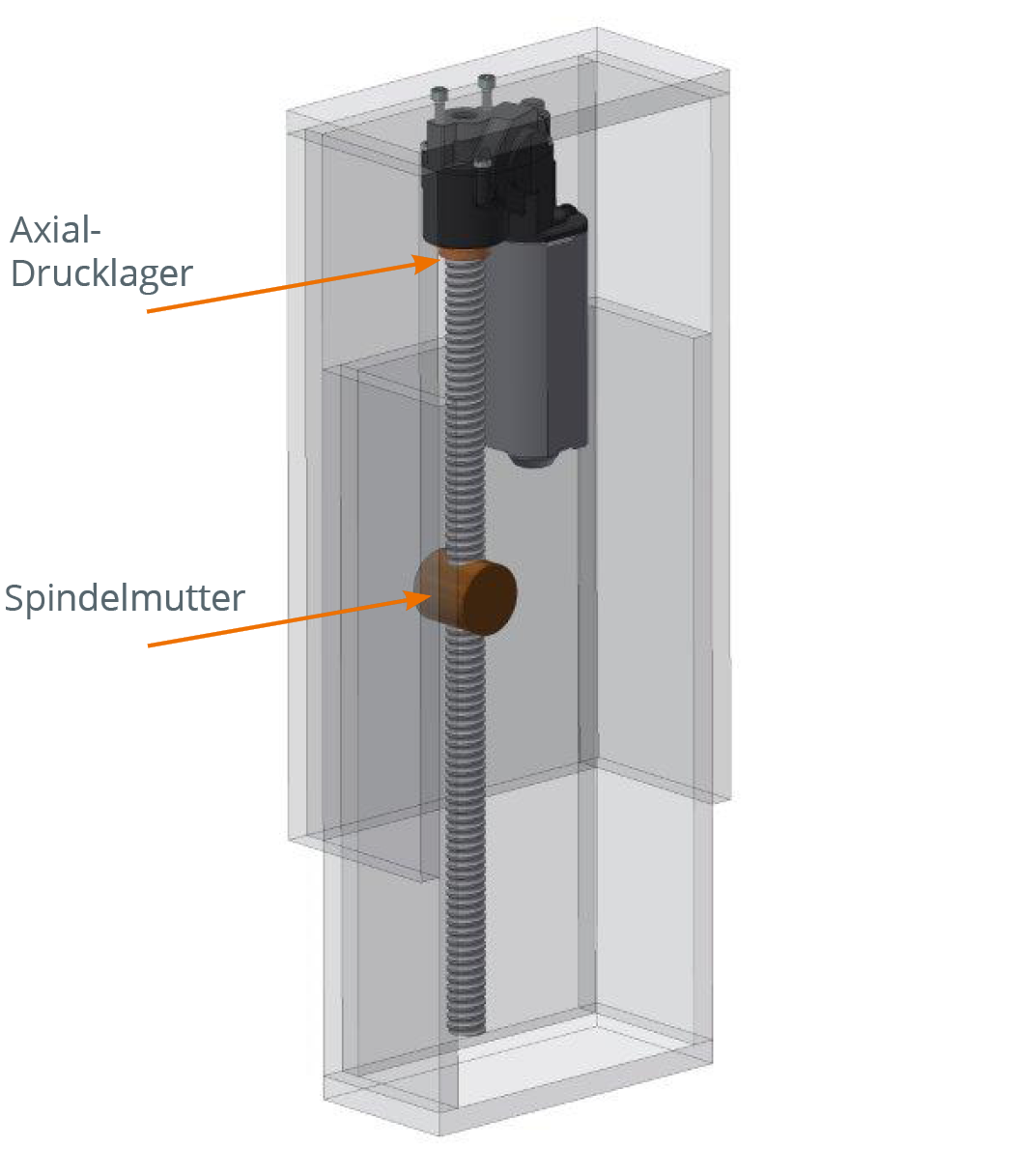

Technical Notes
- The system's self-locking capability depends on the spindle used and must be verified.
- The spindle nut is to be directly attached to the frame or guide wall.
- An axial thrust bearing is installed between the drive and the spindle to ensure secure load handling.
- Compatible motor cable: 3122.53-02
3D data (in STEP format) is saved to your computer as a zip file. After
unzipping the files, you can open and view the data using an STP viewer
(e.g. the free Autodesk Viewer). Please note that you will be taken to
an external website. Create a customer account there to download the 3D
files.
