Inline spindle drive 3122
| Quantity | Unit price |
|---|---|
| To 4 |
€122.86
|
| To 9 |
€114.70
|
| To 19 |
€106.49
|
| From 20 |
€98.33
|
Available, delivery time: 1-3 days
Description
Product information "Inline spindle drive 3122"

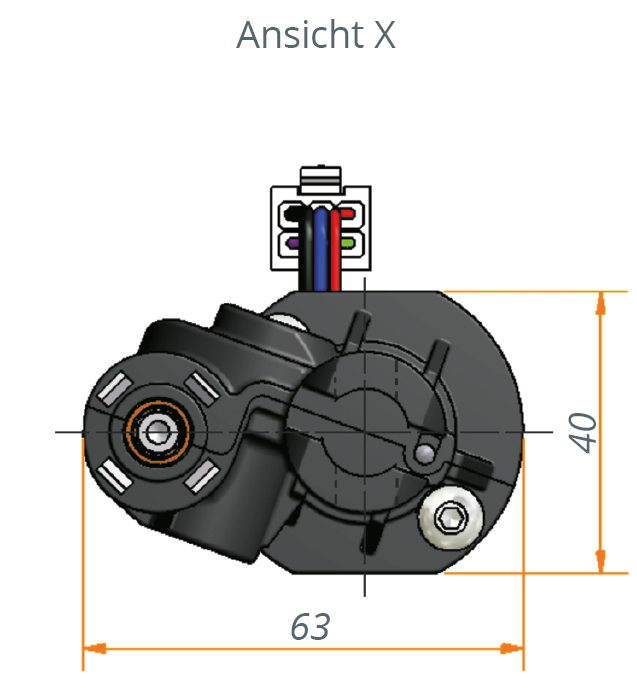

Lifting force 600Nm l Travelling speed 48 mm/s l Simple mounting l Installation space requirement 40x63 mm
Features
The electromotive solution for the sit/stand workstation. Infinitely variable height adjustment with customised lifting height. A very slim design enables the complete inline drive to be integrated into the table leg.
Special features
- Simple attachment
- Integrated position measuring system
- 1-fold telescopic

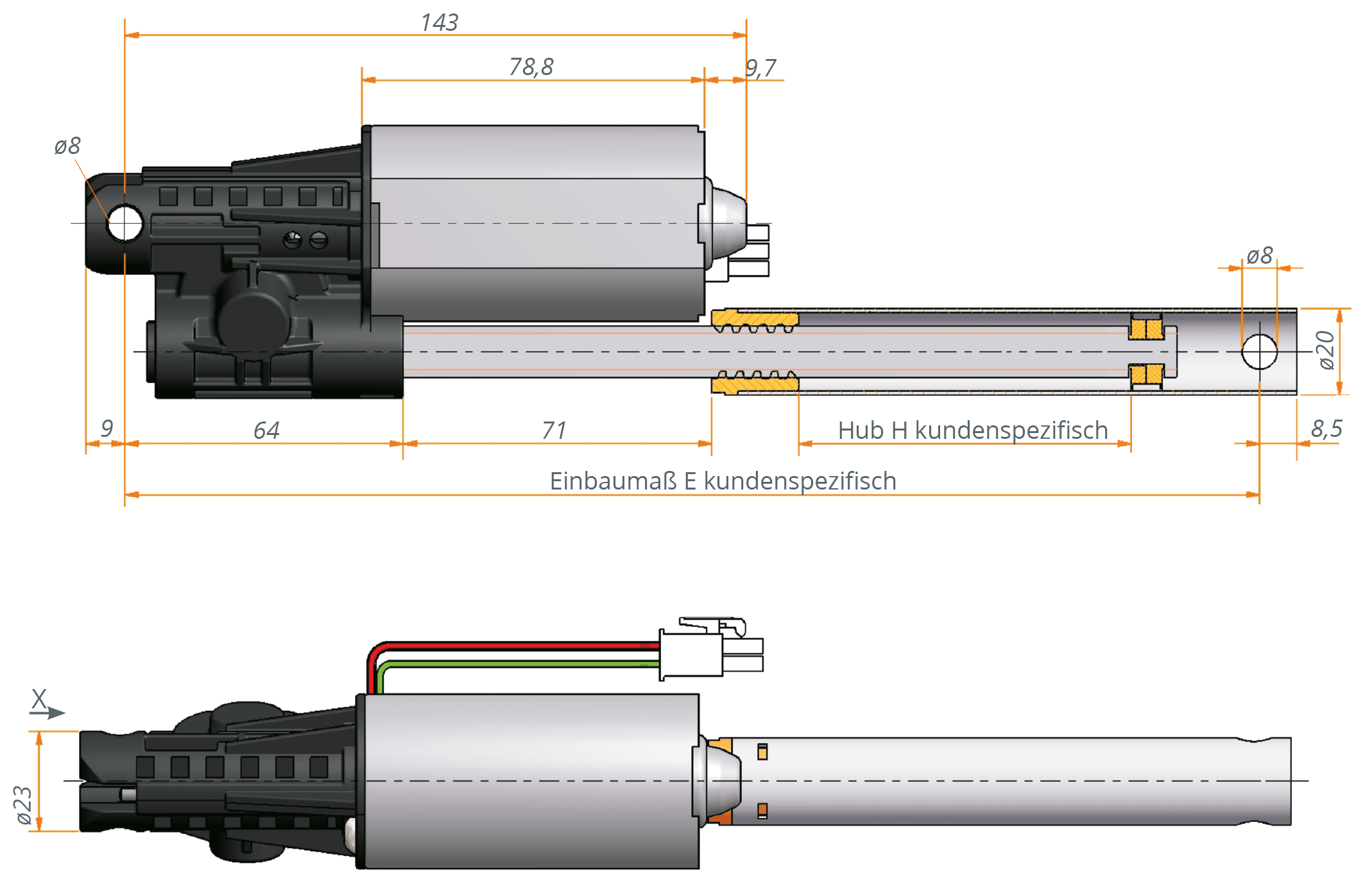

Technical specifications
| Series | 3122.00-V01EXXXHXXX |
| Motor | DC Motor 24 V |
| Sensor/Power supply | Hall/5 V DC/0,3 A |
| Protection class | IP30 |
| Duty cycle | 20% (at 5 Min.) |
| Idle running speed | 180 rpm (24 V) 180 rpm * |
| Stroke max. | retracted height -171 mm |
| Type of spindle | SG12x16P4 RH ** |
| Max. lifting force | 600 N |
| Max. drive torque | 2,5 Nm |
| Movement speed | 48 mm/s |
* in conjunction with LogicData control unit Compact-3
** other spindle types available on request
Safety instructions
Depending on the spindle used, the self-locking of the system must be checked.
Documents 1
3D files
Note: The link will take you to our Nextcloud platform, where you
can directly download the STEP file. Please be aware that you will be
redirected to an external site.
Design and safety notices
