Motor drive for through going spindle 4778
| Quantity | Unit price |
|---|---|
| To 4 |
€199.92*
|
| To 9 |
€186.18*
|
| To 19 |
€172.87*
|
| From 20 |
€159.57*
|
Available, delivery time: 1-3 days
Product information "Motor drive for through going spindle 4778"

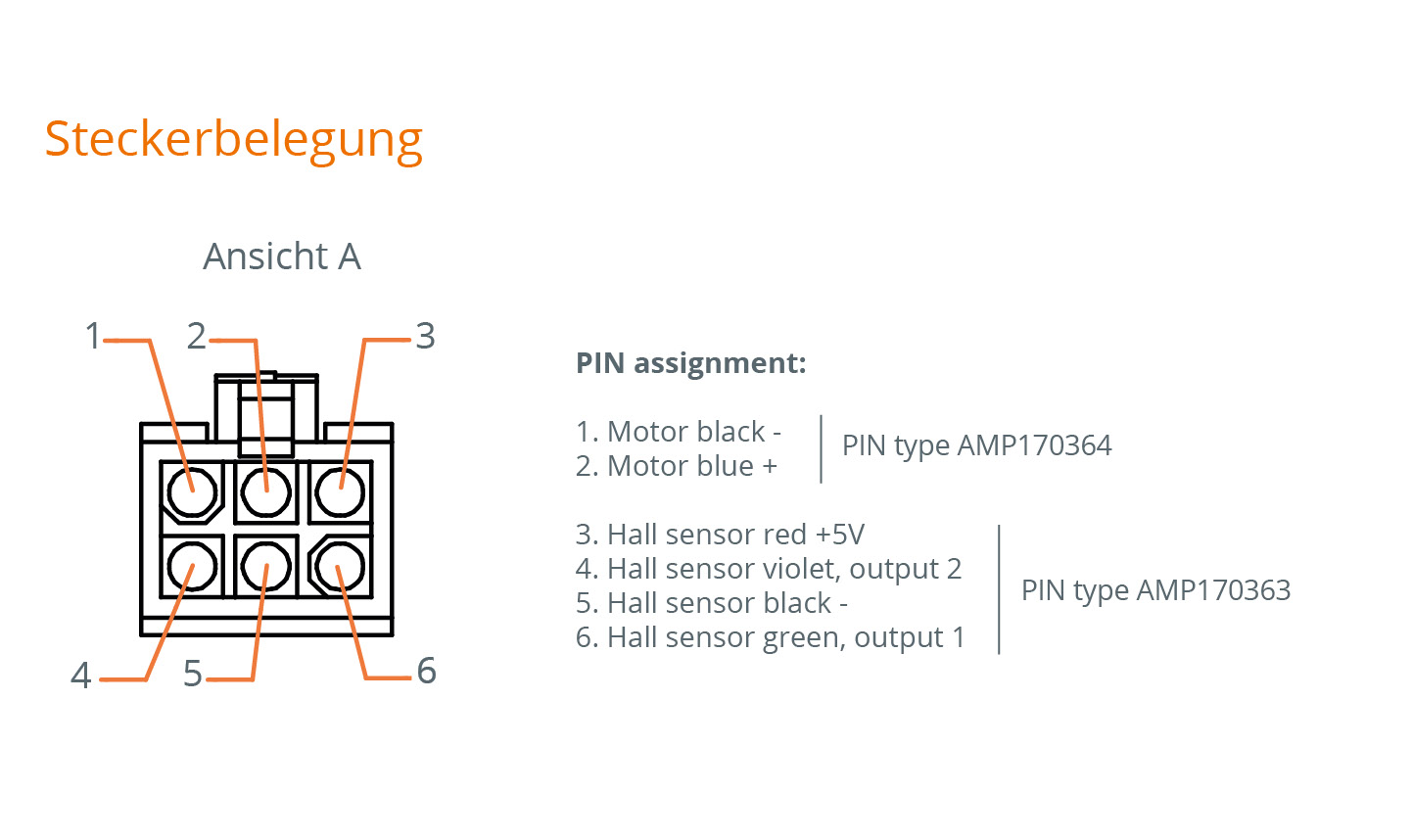

This high-performance 24V DC motor with worm gear is specially designed for use with a non-rotating continuous spindle, enabling precise push and pull movements. Equipped with an AMP connector cable and integrated Hall sensors, the motor ensures safe operation and reliable control of the entire system.
Special Features
- Two integrated Hall sensors for detecting rotations and direction of rotation
- Available with different internal thread types for continuous spindle connection
- Excellent self-locking properties for secure positioning
- Fast and powerful performance for demanding applications
- Spindle must be ordered separately
Variant Key
The motor variants are defined by the different internal thread types used for spindle connection.
Technical Notes
- The spindle is not included in delivery and must be ordered separately.

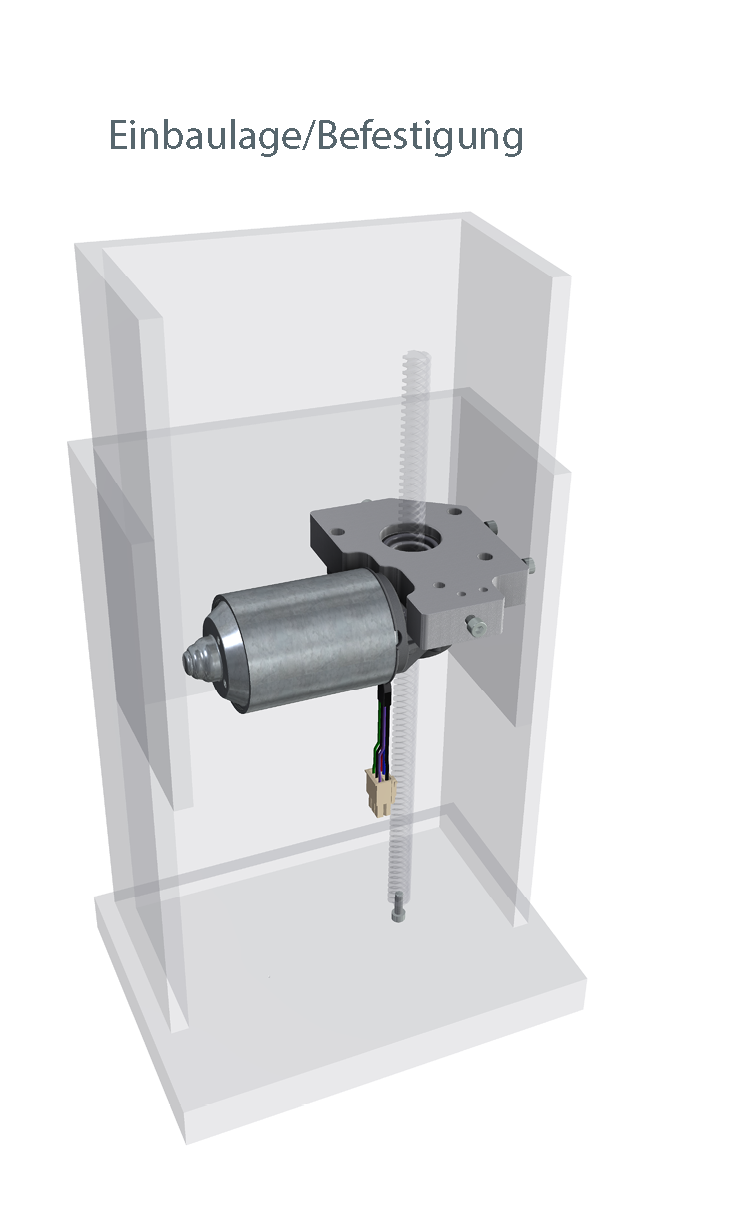

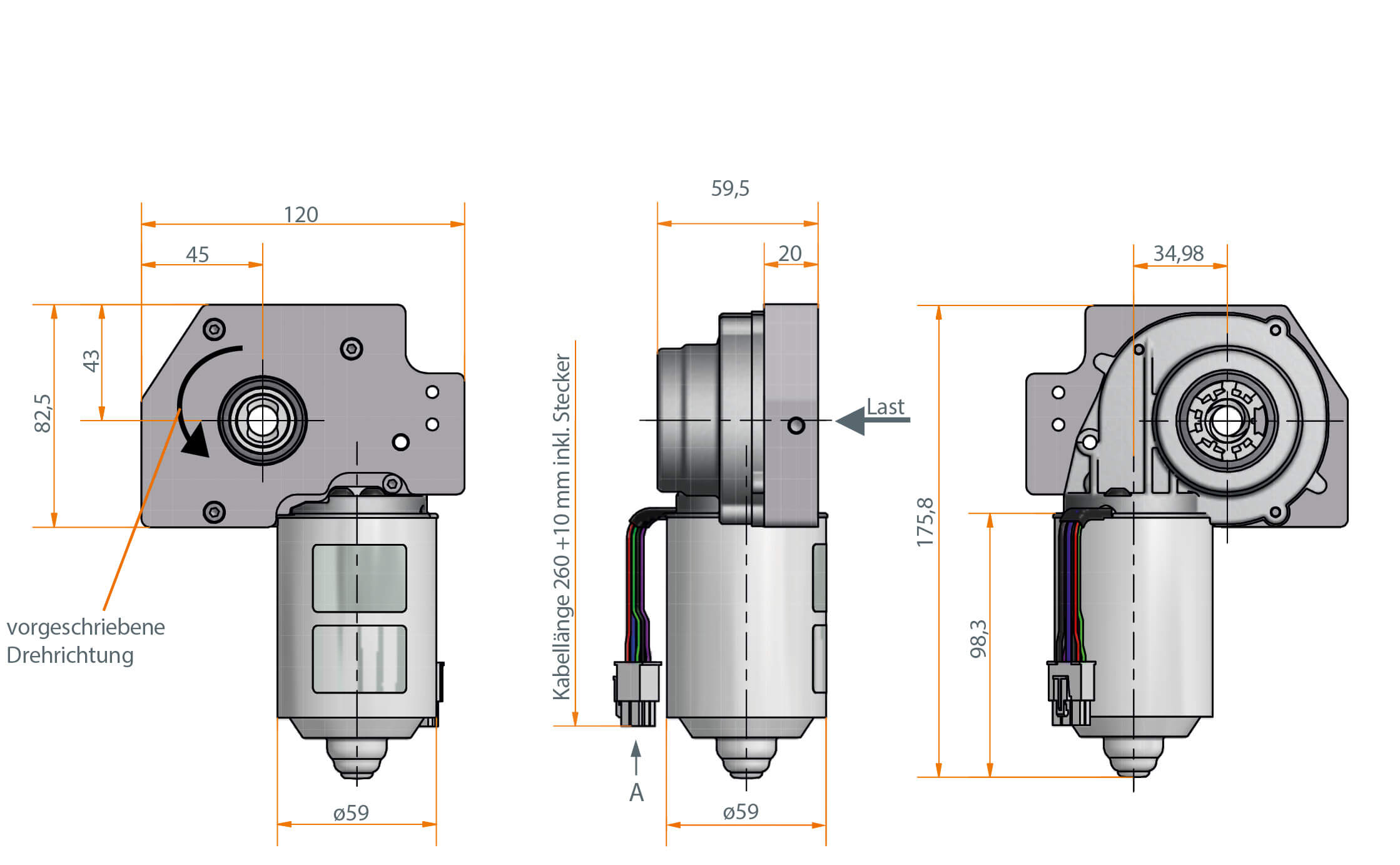

- Always ensure the correct installation position (see installation example).
- The drive must be protected against lateral forces by a separate guiding system.
- The rated torque is designed for a lifetime of 10,000 double strokes.
- When operated with a control unit featuring a short-circuit brake, the holding torque of the drive can be increased.
Technical Data
| Model |
4778.00-0002
|
4778.00-0004
|
4778.00-0006
|
|
Motor
|
DC motor 24 V
|
DC motor 24 V
|
DC motor 24 V
|
|
Sensor/Power supply
|
Hall/5 V DC/0.3 A
|
Hall/5 V DC/0.3 A
|
Hall/5 V DC/0.3 A
|
|
Protection class
|
IP30
|
IP30
|
IP30
|
|
Operating temperature
|
0° to +30°
|
0° to +30°
|
0° to +30°
|
|
Electric current (IN) at max. load
|
8 A
|
8 A
|
8 A
|
|
Idle running speed
|
270 rpm
|
270 rpm
|
270 rpm
|
|
Duty cycle idle speed
|
20% (at 5 min.)
|
20% (at 5 min.)
|
20% (at 5 min.)
|
|
Duty cycle at max. load
|
10 s ON 240 s OFF
| 13 s ON 240 s OFF
| 8 s ON 240 s OFF
|
|
Max. lifting force*
|
1900 N
|
3700 N
|
950 N
|
|
Traverse speed (constant from F= 0 bis Fmax.)**
|
24 mm/s
|
12 mm/s
|
45 mm/s
|
| Static Self locking *** | 200 kg | 380 kg | 200 kg |
| Output (Inner thread) | SG16x8P4 RH | Tr16x4 RH | SG14x16P4 RH |
* Determined for service life of 10,000 double strokes
** The
controller regulates the system in such a way that the travel speed in
the entire drive working range is kept as constant as possible
*** In combination with controller, which has a short circuit brake
Note: The link will take you to our Nextcloud platform, where you
can directly download the STEP file. Please be aware that you will be
redirected to an external site.
