Aluminum Claw Coupling
Torque-flexible aluminum claw couplings, perfect for worm and bevel gear drives, available in various sizes.
| Quantity | Unit price |
|---|---|
| To 4 |
€38.65*
|
| To 9 |
€36.00*
|
| To 19 |
€33.50*
|
| From 20 |
€30.90*
|
Available, delivery time: 1-3 days
Stock:
7
Product number:
5790.12-0001
Weight:
0.02 kg
Description
Product information "Aluminum Claw Coupling"
High-quality torsionally elastic claw couplings made of aluminum, available in 7 variants. Suitable for bores Ø 8–12 mm or for custom machining with keyway profile. The couplings reliably connect two shafts and compensate for speed and torque shocks.
Features
- Material: Aluminum (claw) and Elastollan (damping element)
- Damping element hardness: 75 Shore A
- Temperature range: -20°C to +60°C
- Weight: approx. 28 g
- Flexible connection of two shafts
- Compensates speed and torque shocks
- Allows misalignment compensation
Applications
The torsionally elastic claw couplings, also known as flexible couplings, are widely used in mechanical engineering. They dampen speed and torque shocks and compensate for misalignment of drive shafts. Especially suitable in combination with worm gears 2010 and bevel gears 200.
Technical Variants

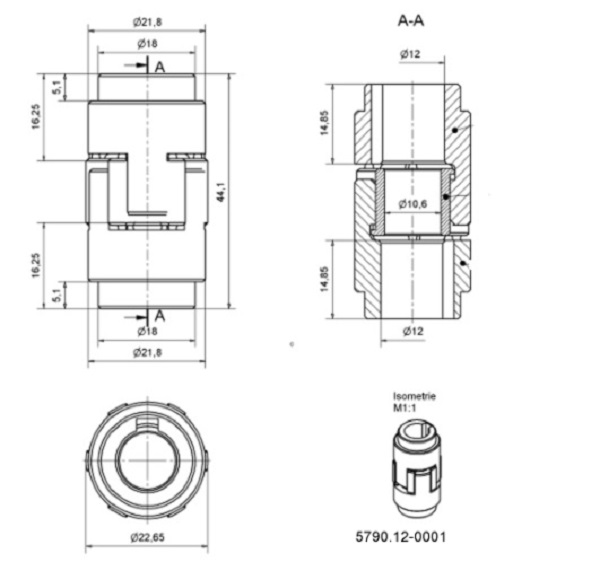

- Article no. 5790.12-0001: Bore 1 Ø 12mm 4P9, Bore 2 Ø 12mm 4P9
- Article no. 5790.12-0002: Bore 1 Ø 12mm 4P9, Bore 2 for custom machining
- Article no. 5790.12-0003: Bore 1 Ø 12mm 4P9, Bore 2 Ø 8mm clamping connection
- Article no. 5790.12-0004: Bore 1 Ø 10mm 4P9, Bore 2 Ø 10mm 4P9
- Article no. 5790.12-0005: Bore 1 Ø 8mm 4P9, Bore 2 Ø 8mm 4P9
- Article no. 5790.12-0006: Bore 1 Ø 10mm 4P9, Bore 2 Ø 6mm clamping connection
- Article no. 5790.12-0007: Bore 1 Ø 12mm 4P9, Bore 2 for keyway profile (DIN5463 6x12x20)
