Angular gear Ket-Bee 200X TxD-Gearbox
| Quantity | Unit price |
|---|---|
| To 4 |
€168.00*
|
| To 9 |
€161.80*
|
| To 19 |
€155.60*
|
| From 20 |
€149.35*
|
Product information "Angular gear Ket-Bee 200X TxD-Gearbox"
Product Description
This series of bevel gear units includes four different sizes and is ideally suited for use as an angle gearbox in a wide range of applications. It features a compact design, high torque transmission, reliable stability, and smooth power transfer. Easy screw mounting enables straightforward installation.
Key Features

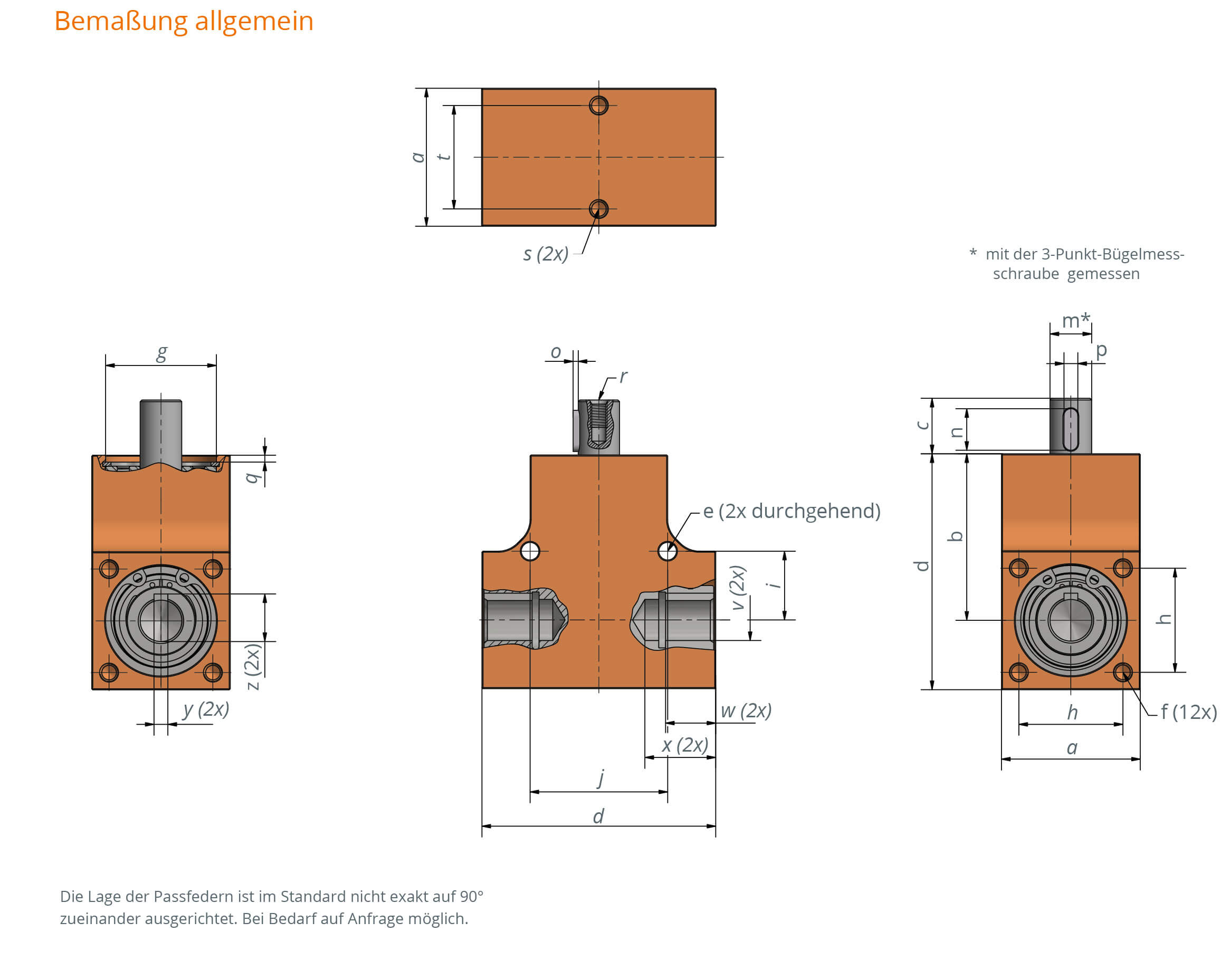

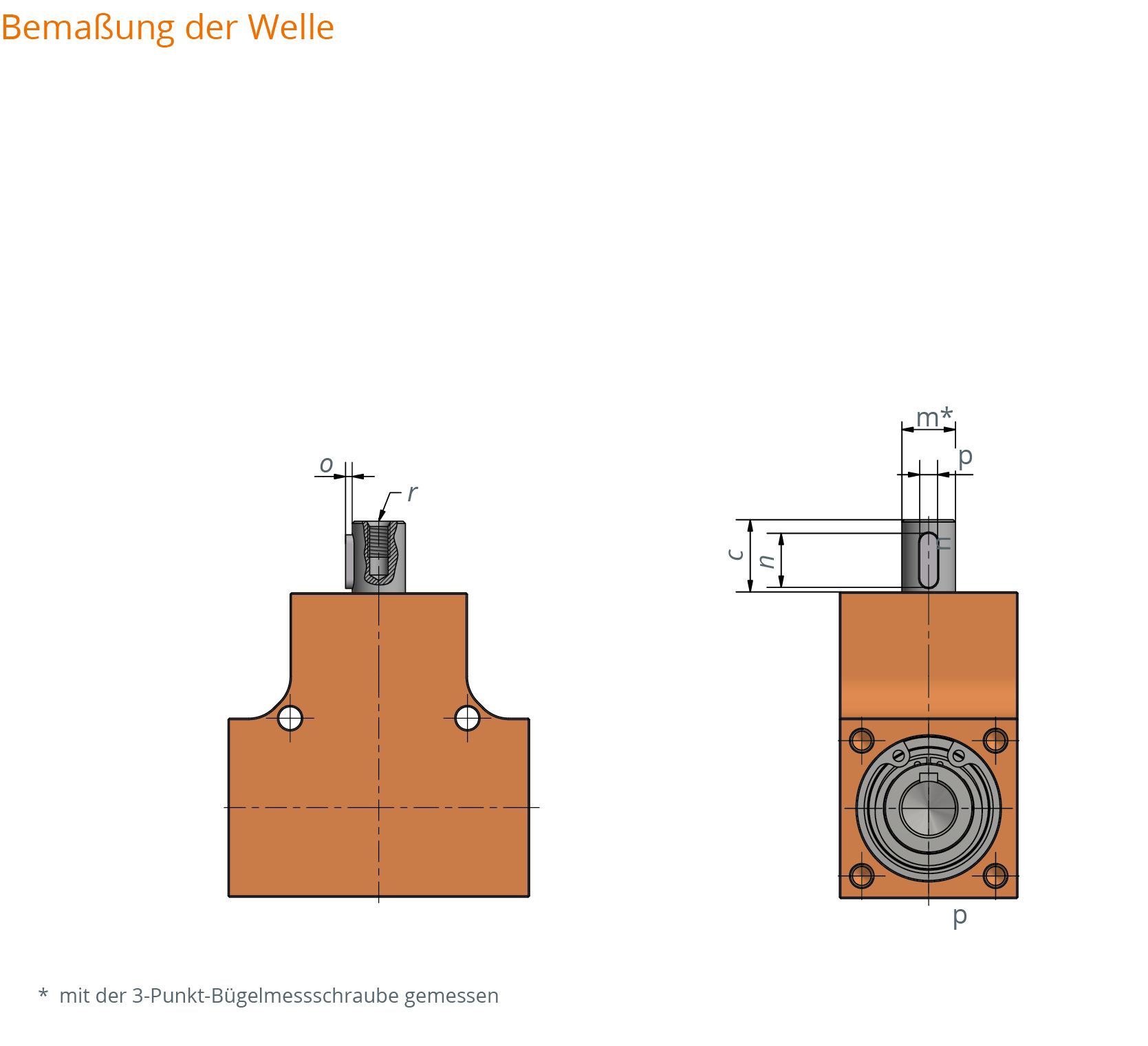

Configuration: 1x solid shaft and 2x blind hollow shafts with opposite rotation
Quiet and maintenance-free operation due to hardened steel bevel gears
Sturdy housing made from anodized aluminum
Gear ratio: 1:1
Operating temperature range: -20 °C to +60 °C
Backlash at output shaft: 3° ± 1°
Duty cycle: 20% over 5 minutes (1 minute ON, 4 minutes OFF)
Designed for a service life of 1000 hours under:
full load
an input speed of 500 rpm
and a 20% duty cycle within a 5-minute interval

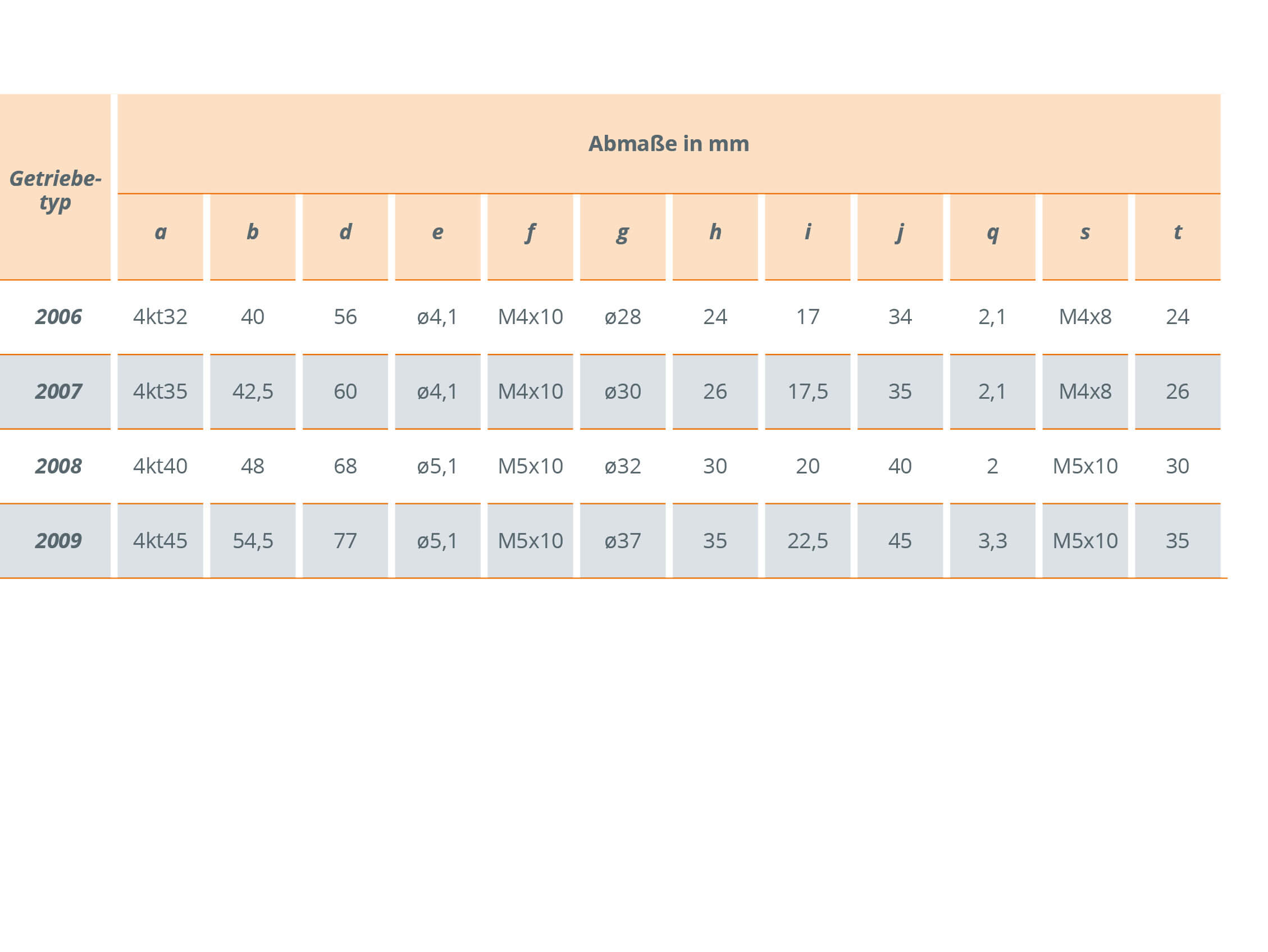

| Order No. |
Speed Range n in min-1 |
Max. Torque M* in Nm |
Radial and Axial Load ** FR in N FN in N |
Component Weight in kg |
||
| 2006.00-T0D10R1 | 100/500/1000 | 8/3/1.5 | 550 |
|
||
| 2007.00-T0D12R1 | 100/500/1000 | 10/4/2 |
|
0.40 | ||
| 2008.00-T0D12R1 | 100/500/1000 | 12/5/2.5 |
|
0.59 | ||
| 2009.00-T0D12R1 | 100/500/1000 |
|
750 | 0.80 |
* The values for FR apply only when FA = 0 N
The values for FA apply only when FR = 0 N
Application Examples
In our Ket-Bee family, we offer gear units for simple 90° redirection (200x L-Gearbox) as well as for power distribution to two drives (200x T-Gearbox).
Our standard components provide a wide range of solutions for implementing drive tasks efficiently. With a variety of worm gear units from the Ket-Motion series, nearly all automation requirements can be handled with ease.
