Bevel Gear Ket-Flex 3872
| Quantity | Unit price |
|---|---|
| To 4 |
€84.15*
|
| To 9 |
€78.54*
|
| To 19 |
€72.93*
|
| From 20 |
€67.32*
|
Product information "Bevel Gear Ket-Flex 3872"
The Ket-Flex 3872 bevel gearbox with lateral spindle outputs is specifically designed for use in conveyor technology and plant engineering. It is perfectly suited for aisle adjustments, curve modifications, as well as the flexible adjustment of side guides in conveyor systems. Thanks to the lateral spindles, the gearbox can be easily adapted to different dimensions and requirements – for example in conveyor belts.
Special Features
-
Maintenance-free for reliable long-term operation
-
Durable, hardened steel bevel gears with ball bearings for maximum stability
-
Robust housing made of high-quality die-cast zinc
-
Gear ratio 1:1 for precise movements
-
Long service life: up to 20,000 load cycles at 10 Nm and 110 rpm, tested with duty cycle 30 s ON / 240 s OFF at +25 °C
-
High load capacity: maximum torque of 10 Nm (higher torque possible at reduced speeds)

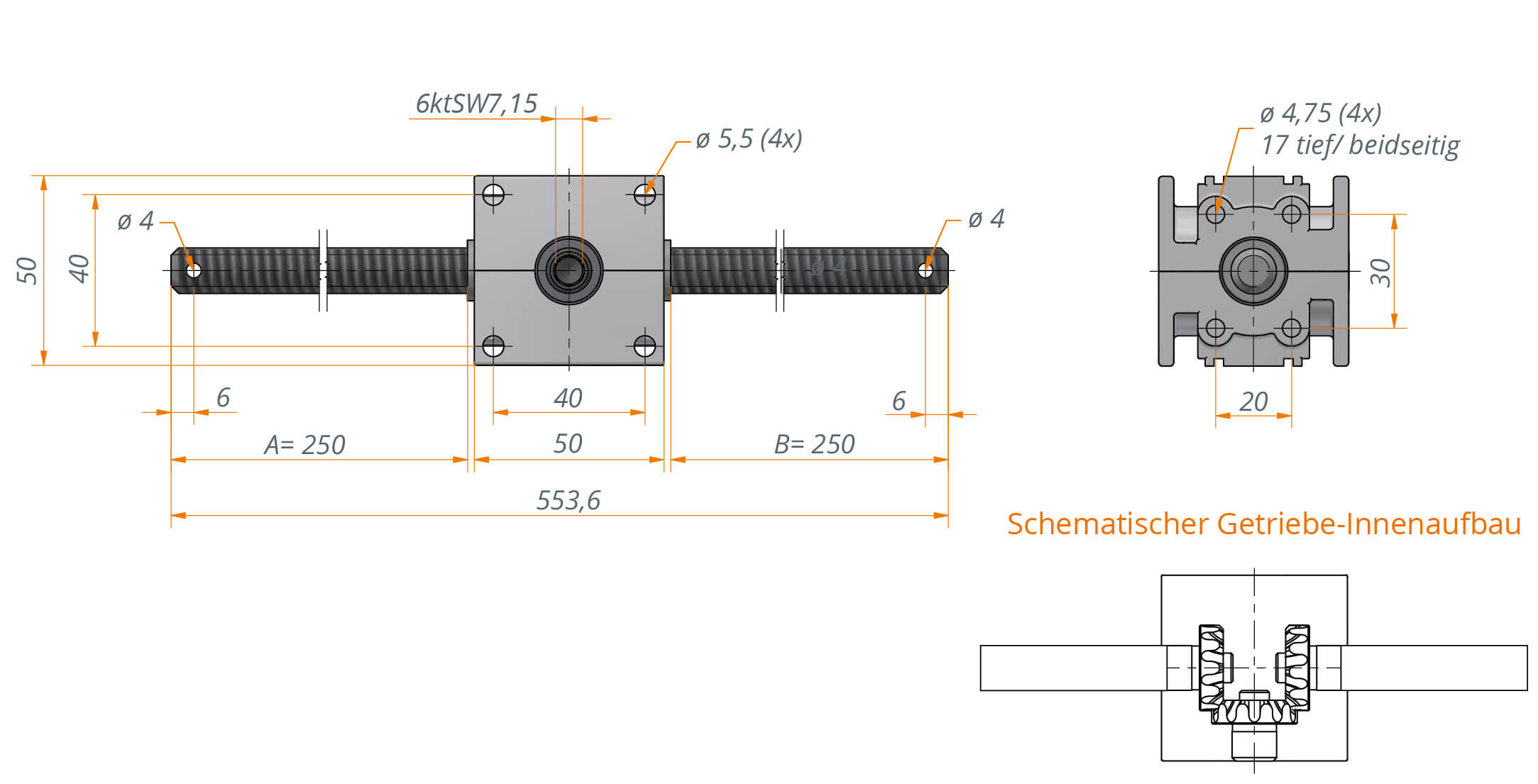

Technical Data
| Preferred variant
|
3872.00-0077
|
|
Number of bevel gear
| 3 |
|
Material Spindle*
|
1.0715 (11SMn30)
|
|
Type of spindle*
| TR12x3 RH |
|
Length A*
| 250 mm |
| Length B* | 250 mm |
* The features can be customized according to customer specifications, as well as the spindle end machining.
Note: The link will take you to our Nextcloud platform, where you
can directly download the STEP file. Please be aware that you will be
redirected to an external site.
Login

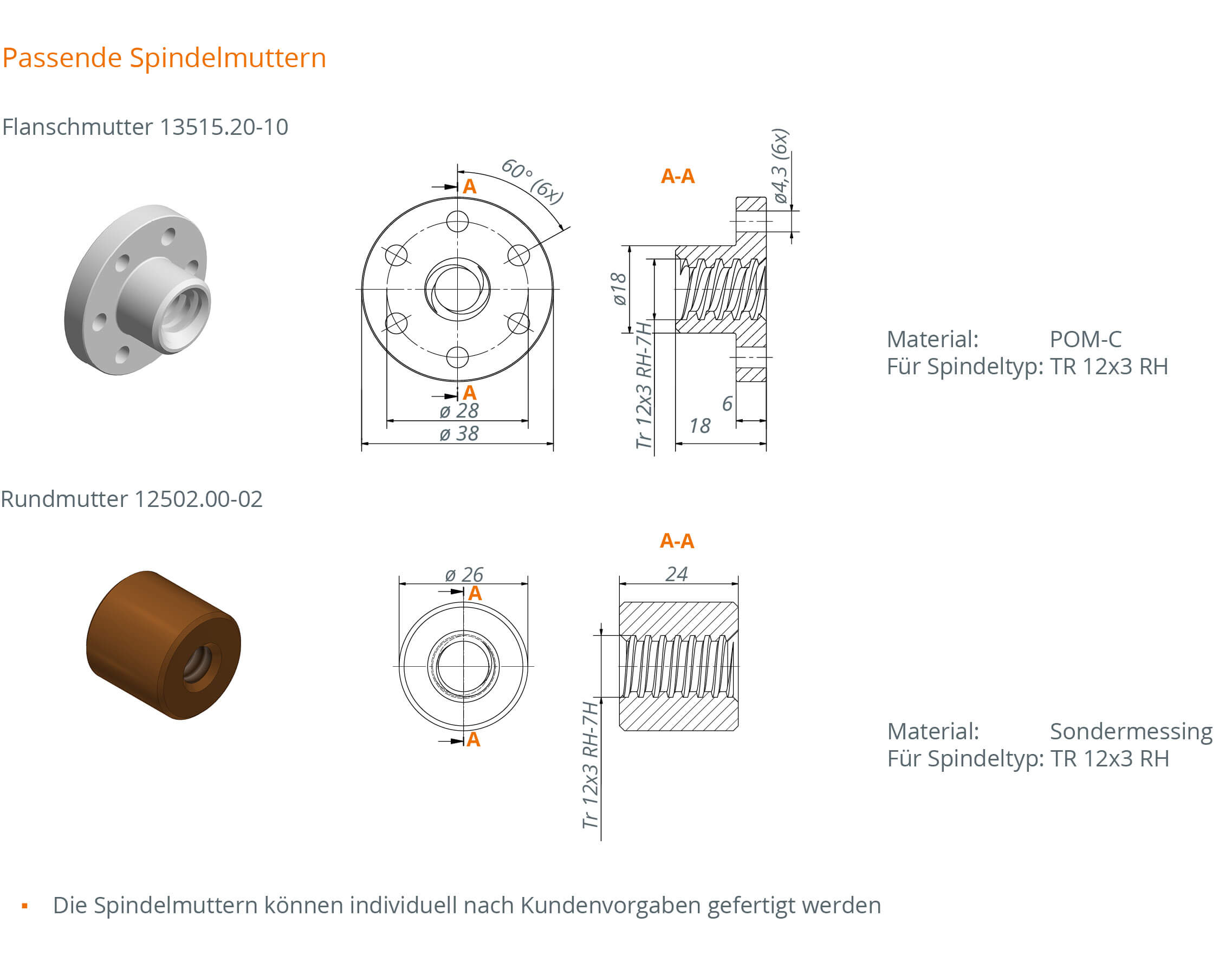

Zubehör
