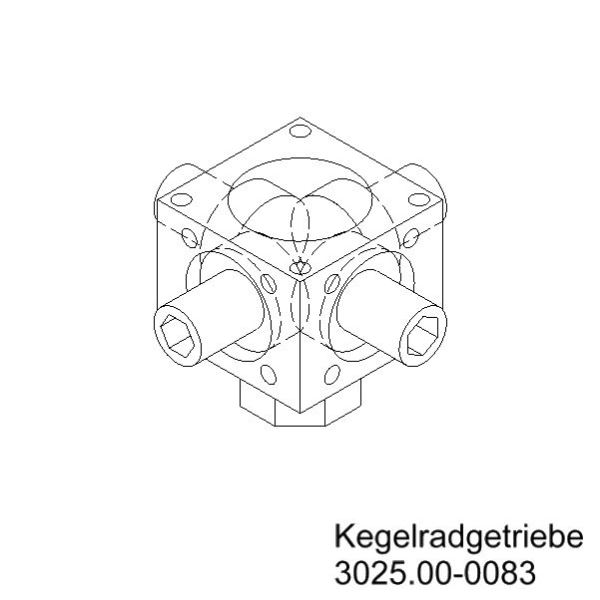

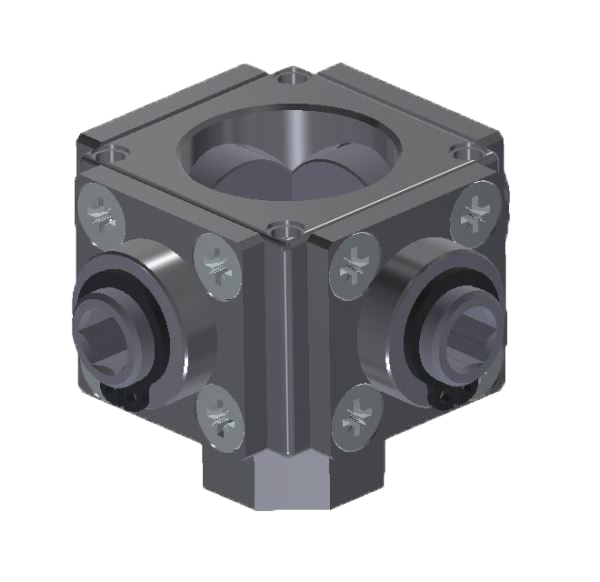

Bevel gear 3025
3 Nm bevel gearbox with 1:1 ratio: various deflection angles, 4 input/outputs, ideal for various applications.
| Quantity | Unit price |
|---|---|
| To 4 |
€33.90*
|
| To 9 |
€32.70*
|
| To 19 |
€31.51*
|
| From 20 |
€30.45*
|
Available, delivery time: 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock:
74
Product number:
3025.00-0083
Weight:
0.07 kg
Product information "Bevel gear 3025"
Features
Our bevel gearboxes with 3 Nm and a 1:1 ratio are also called reversing gearboxes. Therefore, a selection of different reversing angles is available within this product group:
| 3025.00-0009 | 3025.00-0013 | 3025.00-0083 | |
| Deflection angle | 90°/270° | 90°/90°/180° | 90°/90°/90°/90° |

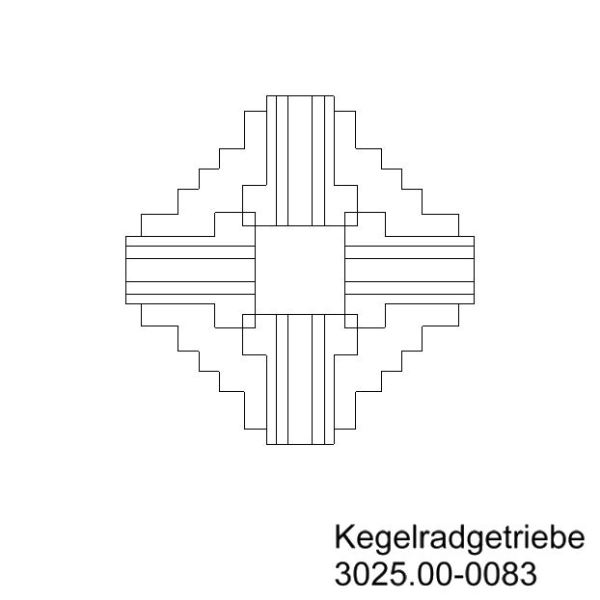

The bevel gearboxes consist of bevel gears and bevel pinions have 4 input and output drives. They are used to transmit or redirect torques. The forces are transmitted by case-hardened steel gears. The housing is made of glass fiber reinforced plastic. The reversing gear units are power gear units and are therefore suitable for use in a wide range of applications.

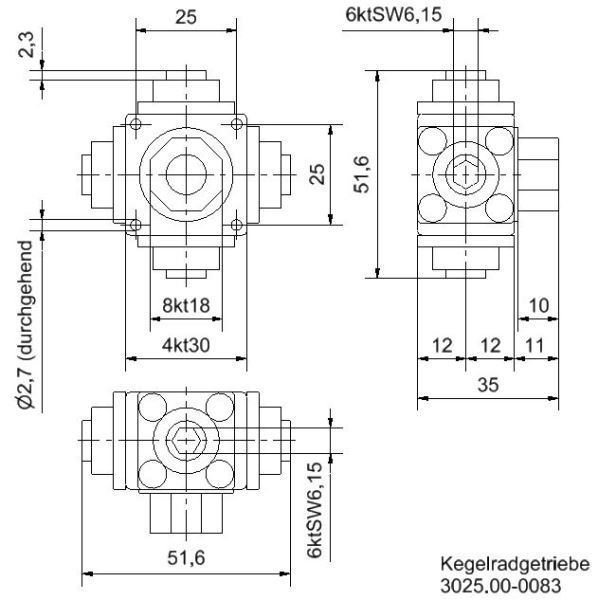

Technical data
| Speed range till: | 150 rpm |
| Max. drive torque: | 3 Nm |
| Ratio: | 1 : 1 |
| Input/Output: | hex 6mm |
| Rotational direction change: | yes |
| Allowable operating temperature: | 0 to 40 °C |
| On/Off duration: | 20% (at 5Min.) |
| Housing: | reinforced glass-fiber |
| Special features: | case hardened steel gear wheels |
Application bevel gear box
This bevel gear box can be used for many different drive solutions. For example, these gears can be found in the height adjustment of tables, sunshades, adjustable windows, etc. as well as any kind of linear adjustment in the industrial sector.
