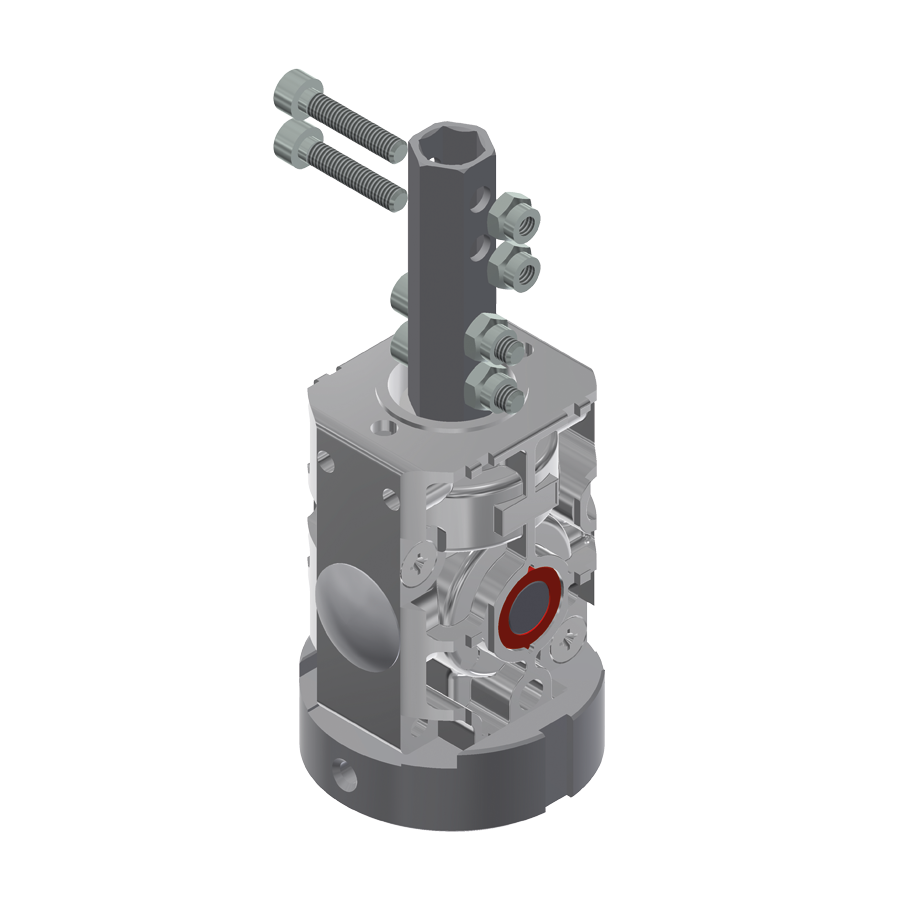

Bevel gear 3056
| Quantity | Unit price |
|---|---|
| To 4 |
€105.14*
|
| To 9 |
€98.12*
|
| To 19 |
€91.15*
|
| From 20 |
€84.13*
|
Available in 30 days, delivery time 1-3 days
Product information "Bevel gear 3056"
Bevel gearbox for redirecting rotational motion at a 90° angle.

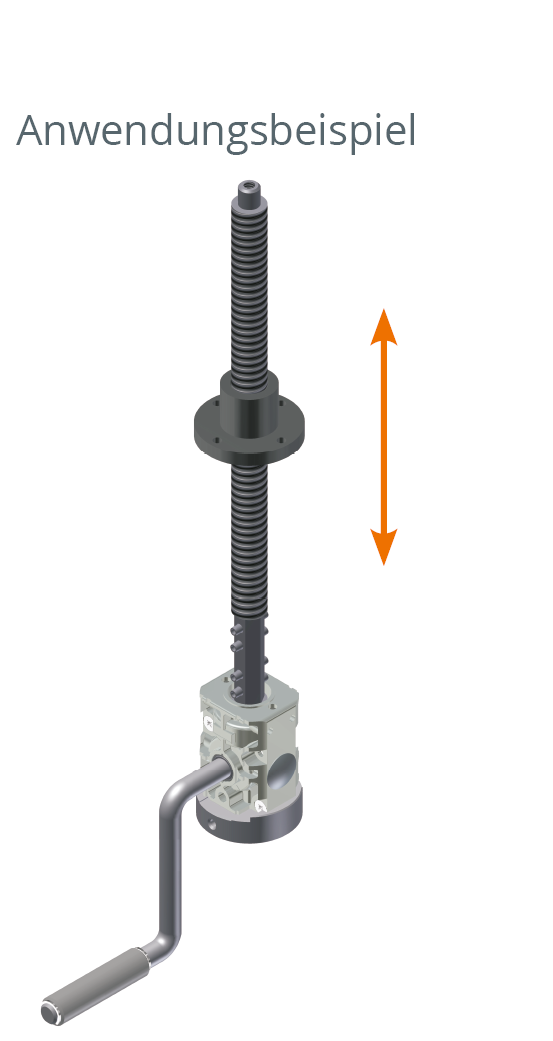

Perfectly suited for adjusting sunshades. A specially developed bevel gear design ensures exceptionally smooth operation. The gearbox is compatible with a variety of spindles.
Special Features
- Maintenance-free
- Hardened bevel gears made of steel
- Housing made of die-cast zinc
- Gear ratio: 1:2
- Designed for manual operation

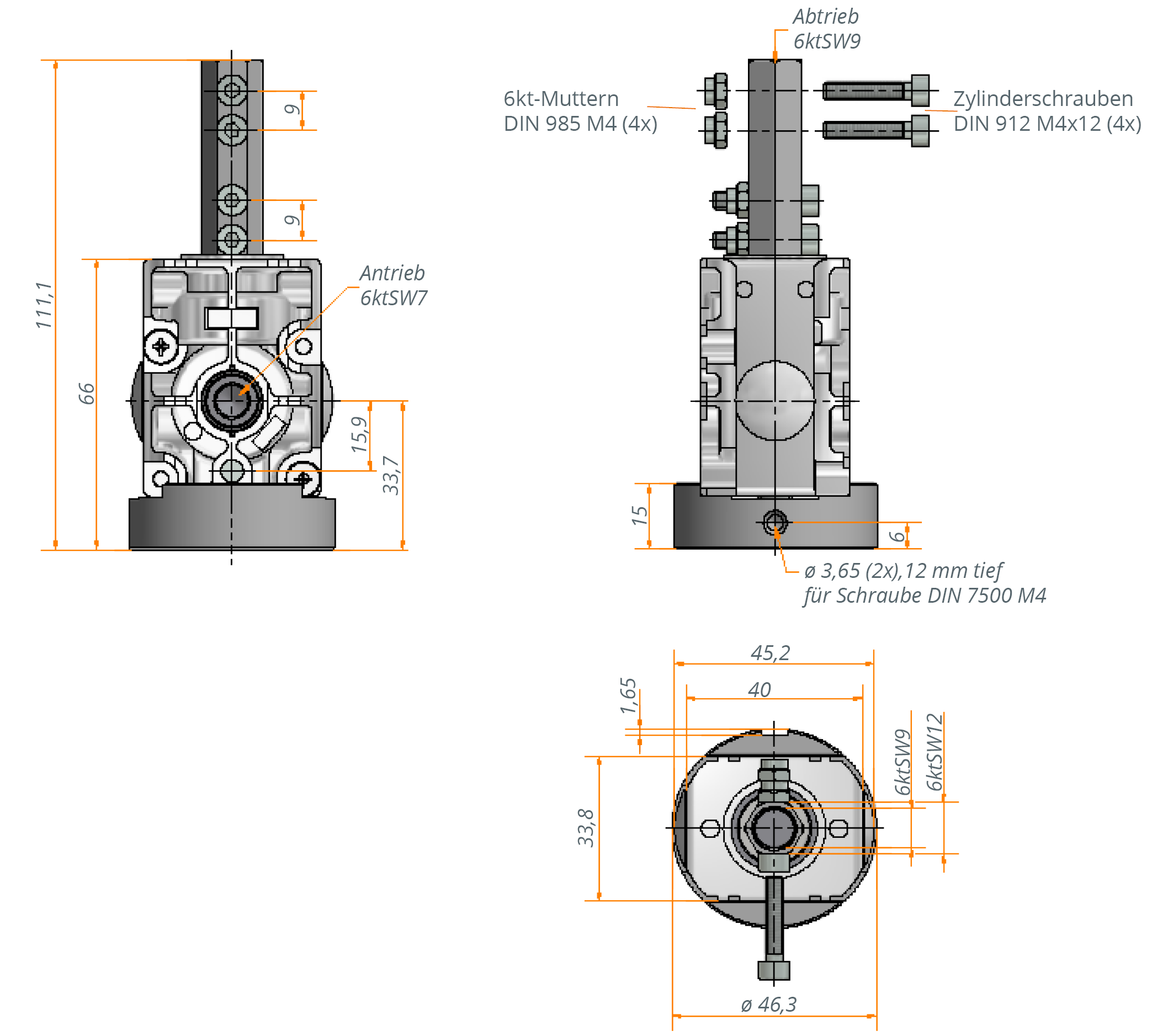

Technical Data
| Model | 3056.00-2000 |
| Ratio | 2:1 |
|
Input
|
hex 6 mm
|
| Output |
hex 9 mm
|
|
Number of bevel wheels
| 2 |
|
Housing material
| Zinc die casting |
|
Max. drive torque
| 6 Nm |
| Max. traction load static short term* | 8,000 N |
| Max. pressure load static short term* | 5,000 N |
* Peak load, e.g. caused by gusts of wind
Technical Notes
- Note: Spindle not included; manufactured upon customer request
- System self-locking capability depends on the spindle used and should be verified
3D data (in STEP format) is saved to your computer as a zip file. After
unzipping the files, you can open and view the data using an STP viewer
(e.g. the free Autodesk Viewer). Please note that you will be taken to
an external website. Create a customer account there to download the 3D
files.
