Bevel gear 3058
Maintenance‑free 90° bevel gearbox, 1:4 ratio, 10 Nm torque, 10 kN pull/12 kN push capacity – ideal for smooth sunshade adjustment.
| Quantity | Unit price |
|---|---|
| To 4 |
€206.30*
|
| To 9 |
€195.60*
|
| To 19 |
€178.80*
|
| From 20 |
€165.00*
|
Available, delivery time: 1-3 days
Stock:
18
Product number:
3058.00-0005
Weight:
0.77 kg
Description
Product information "Bevel gear 3058"
Bevel gear for redirecting rotational motion at a 90° angle – ideal for adjusting parasols. The specially designed bevel gear teeth ensure exceptionally smooth operation. The gear is compatible with various spindle types.
Special Features
- Excellent corrosion resistance
- Maintenance-free operation
- Hardened steel bevel gears with optimized surface protection
- Aluminum housing
- Gear ratio of 1:4
- Designed specifically for manual operation

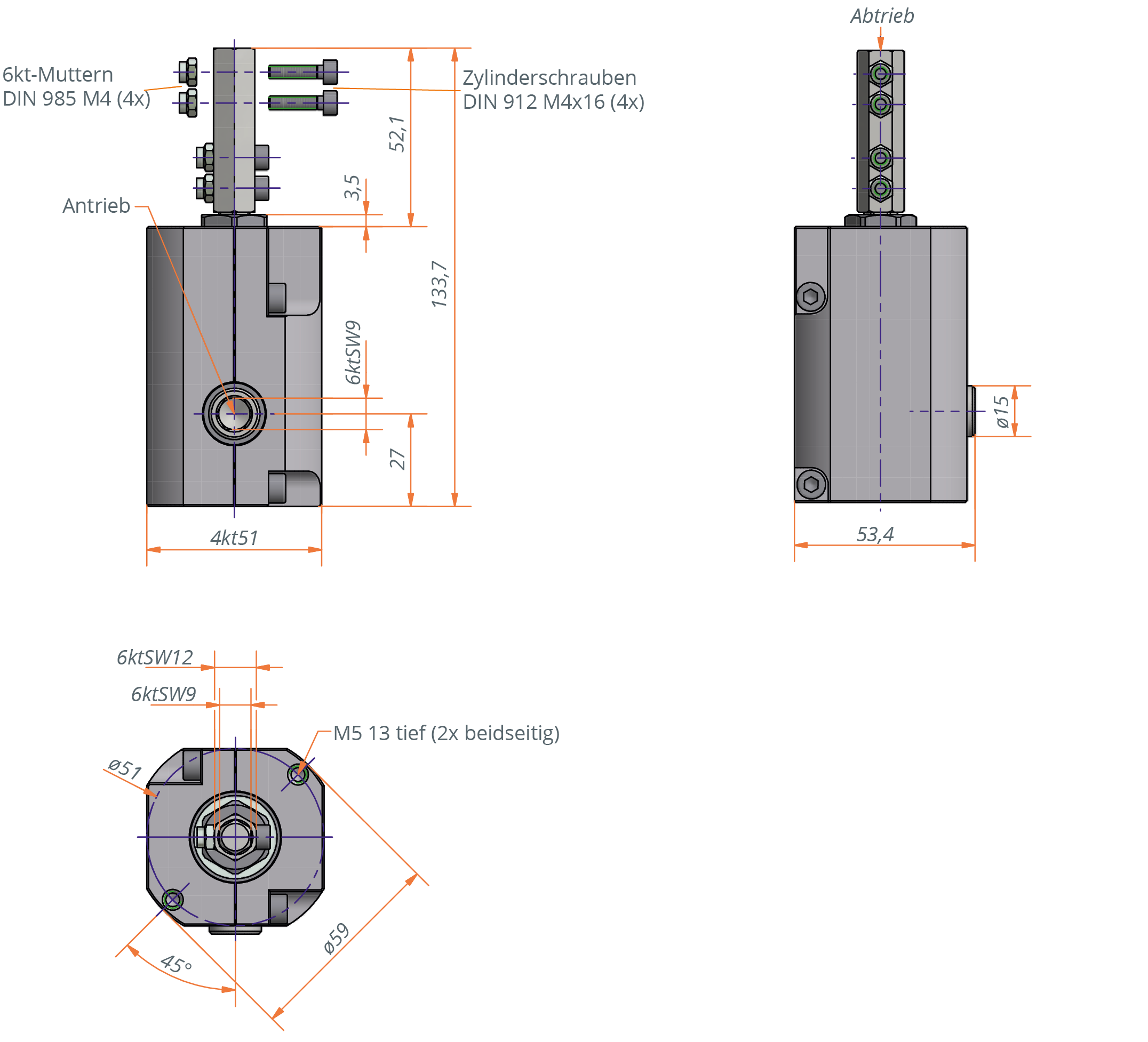

Technical Data
| Model | 3058.00-0005 |
| Ratio | 1:4 |
| Input |
hex 9 mm
|
| Output |
hex 9 mm
|
|
Number of bevel wheels
| 2 |
|
Housing material
| Aluminium |
|
Max. drive torque
|
10 Nm
|
|
Max. traction load static short term*
|
10,000 N
|
| Max. pressure load static short term* | 12,000 N |
* Peak load, e.g. caused by gusts of wind
Technical Notes
- Important Notice: The spindle is not included in the delivery but can be manufactured upon customer request.
- The system's self-locking capability depends on the spindle used and should be individually verified.
Datasheets
1
3D files
Note: The link will take you to our Nextcloud platform, where you
can directly download the STEP file. Please be aware that you will be
redirected to an external site.
