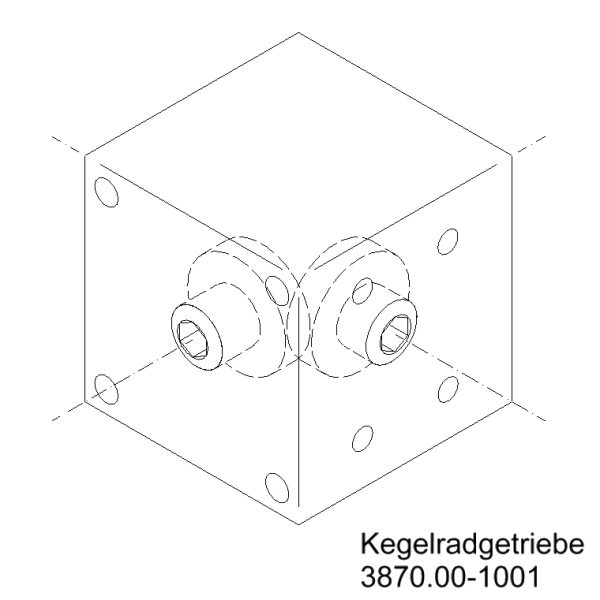

Bevel gear 3870 - 3871
Bevel gearbox with 10 Nm max. torque: special gearing for smooth running, maintenance-free, made of die-cast zinc.
| Quantity | Unit price |
|---|---|
| To 4 |
€60.08*
|
| To 9 |
€56.08*
|
| To 19 |
€52.07*
|
| From 20 |
€48.08*
|
Available, delivery time: 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock:
55
Product number:
3870.00-1001
Weight:
0.41 kg
Product information "Bevel gear 3870 - 3871"
Features

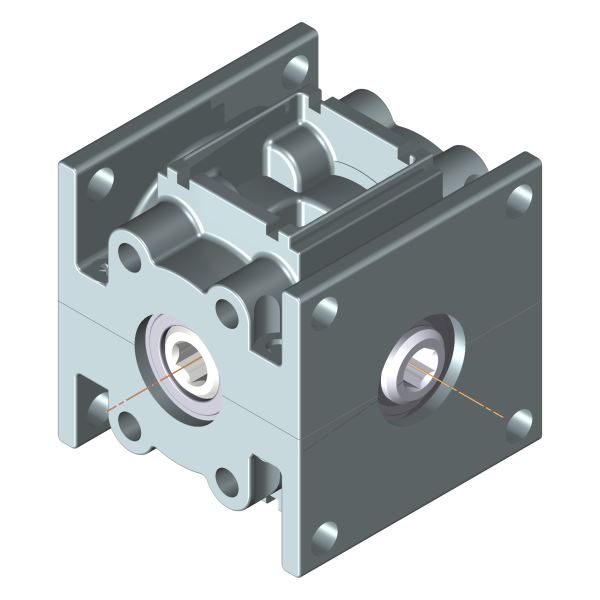

Our bevel gearboxes with a maximum torque of 10 Nm are used to deflect a rotary motion. The special toothing of the installed gears ensures smooth running of the gearbox. The bevel gearbox is also maintenance-free and consists of hardened steel bevel gears with ball bearings and a die-cast zinc housing.

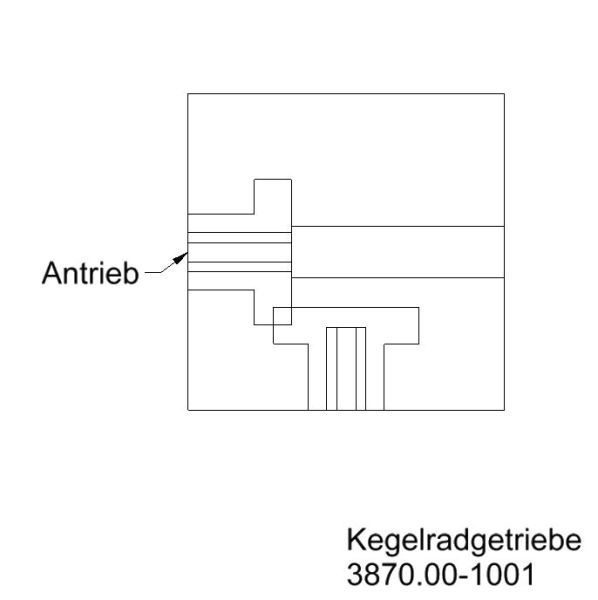

The bevel gearboxes in this product group differ in terms of input/output and the number of bevel gears:
| 3870.00-1001 | 3871.00-1001 | 3870.00-1002 | 3871.00-1003 | |
| In / Output | hex 6mm | hex 6mm | hex 7mm | hex 7mm |
| number of bevel gears | 2 | 3 | 2 | 3 |
| suitable mounting | Mounting flange for bevel gear | |||
Special features
- Maintenance-free
- Hardened, bearing seated steel gear cogs
- Housing made of zinc die-casting
- Lifetime 20,000 load changes: at 10 Nm, 110 rpm, with the duty cycle 30 s ON 240 s OFF and at + 25 °C
| Speed range till: | 150 rpm |
| Max. drive torque: | 10 Nm |
| Ratio: | 1 : 1 |

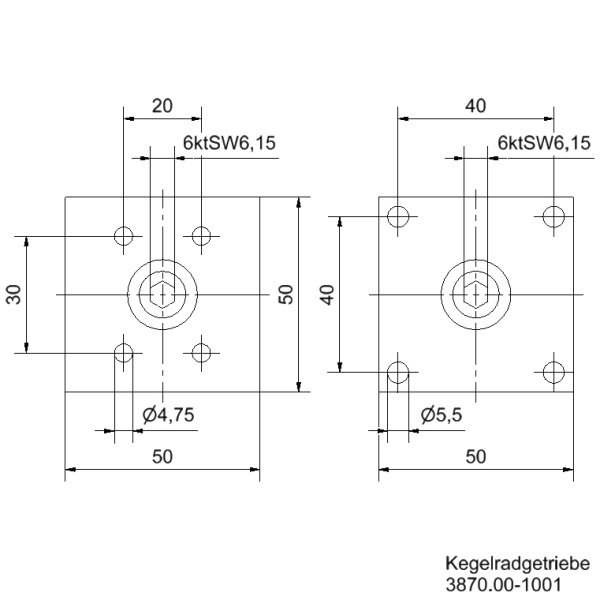

| Dimensions: | 50 x 50 x 50mm |
| Self-locking: | no |
| On/Off duration: | 20% (at 5Min.) |
| Allowable operating temperature: | -20°C to 40°C |
| Housing: | zinc die-casting |
| Special features: | hardened, bearing seated steel gear cogs |
Application bevel gearbox 10 Nm 1:1
The bevel gearbox 10 Nm 1:1 is suitable as a transfer gearbox or attachment gearbox for electric motors. These are used, among other things, for blinds and actuators in special machine construction.le as a transfer gearbox or attachment gearbox for electric motors. These are used, among other things, for blinds and actuators in special machine construction.
