Bevel gear 3889
Bevel gearbox for variable use thanks to the size and design of the small gearbox.
| Quantity | Unit price |
|---|---|
| To 4 |
€97.89*
|
| To 9 |
€93.89*
|
| To 19 |
€90.00*
|
| From 20 |
€86.10*
|
Available, delivery time: 1-3 days
Stock:
17
Product number:
3889.00-0000
Weight:
0.77 kg
Description
Product information "Bevel gear 3889"

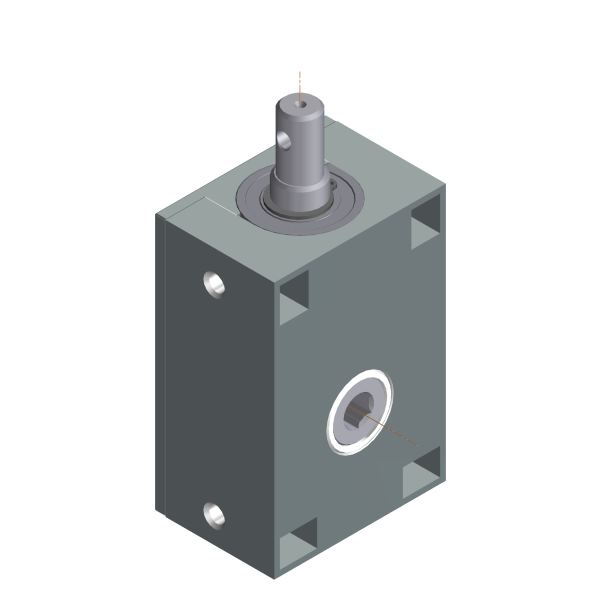

Our bevel gearbox is a compact small gearbox, also known as an angle gearbox, as the input and output shafts are positioned at an angle to each other.

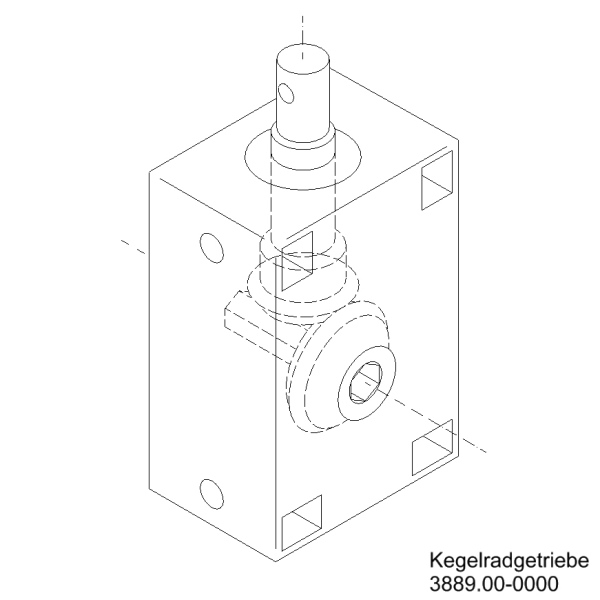

The gearbox consists of a bevel gear and a bevel pinion. Through the rolling motion of the bevel gears, the gearbox achieves a high degree of efficiency and ensures smooth power transmission in a compact design.
The durable zinc die-cast housing provides stability and long service life, while the galvanized steel bevel gears guarantee reliable operation even under continuous load.
Technical Data
|
Speed range up to
| 50 rpm |
|
Max. torque
|
5 Nm
|
| Gear ratio |
1:1.5
|
|
Input
|
Internal hex 9 mm |
|
Output
|
Shaft Ø 12.2 mm
|
|
Output length
|
20 mm
|
|

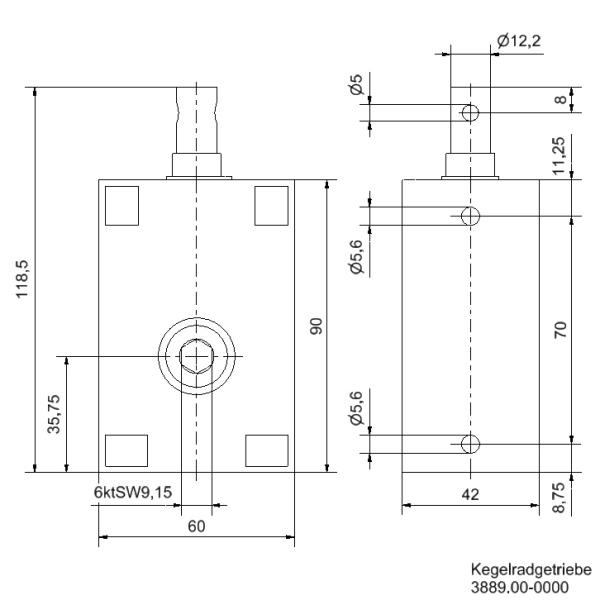

Dimensions
|
60 × 90 × 45 mm
|
|
Weight
|
767 g
|
|
Self-locking
| No |
|
Duty cycle
|
20 % (for 5 min.)
|
| Permissible operating temperature | 0 °C to +40 °C |
| Material | Zinc die-cast housing |
| Special features | Galvanized steel bevel gears |
