Bevel gear with spindle unit 3010 | 3011
Maintenance‑free bevel gear spindle unit, 1.3:1 ratio, available in CW or CCW spindle rotation, hardened gears and fiber‑reinforced plastic housing.
| Quantity | Unit price |
|---|---|
| To 4 |
€42.27*
|
| To 9 |
€40.61*
|
| To 19 |
€38.94*
|
| From 20 |
€37.15*
|
Available, delivery time: 1-3 days
Stock:
11
Product number:
3010.00-L10E300H200
Weight:
0.43 kg

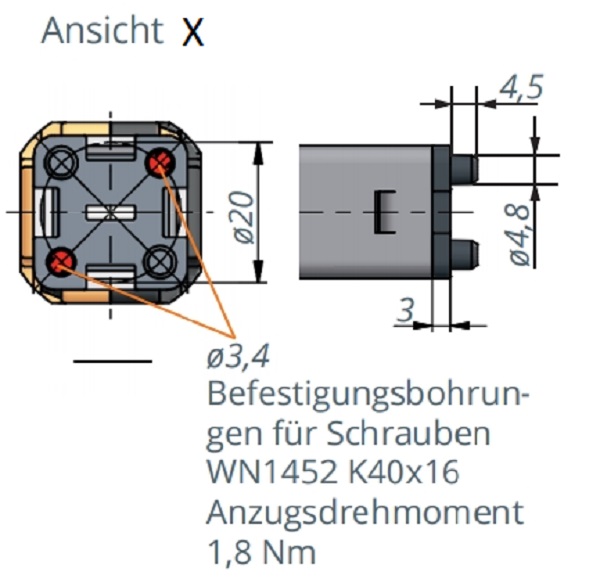

Description
Product information "Bevel gear with spindle unit 3010 | 3011"
The universal screw jack with bevel gear head and right-handed spindle is perfectly suited for a wide range of linear drive applications. Typical use cases include height-adjustable desks, various adjustment functions in furniture, and other linear positioning tasks in home and office environments.
Special Features
- Maintenance-free and durable design
- Drive torque at the gear head when operating with multiple spindle units: max. 3 Nm
Variant key
3010: Variants with a clockwise-rotating spindle
3011: Variants with a left-hand spindle
Technical Notes
- The screw jack must be protected against lateral forces using a separate guiding system.
- Spindle systems with a pitch > 3 mm may not be self-locking – self-locking must be verified in the application.
- The lifting unit is designed only for compression loads.
- When using multiple lifting units simultaneously, the maximum drive torque at the gear head of 3 Nm must be observed.
- Incorrect dimensioning of the guiding system may lead to damage to the lifting unit: Please familiarise yourself with the design and safety instructions for spindle drives.
Technical Data
| Model | 3010 | 3011 |
|
Type of spindle
|
TR14x3 RH
|
TR14x3 LH
|
|
Travel path
| 2.3 mm/rotation | 2.3 mm/rotation |
|
Required drive torque
|
1.2 Nm
|
1.2 Nm
|
|
Max. lifting force
|
1200 N
|
1200 N
|
|
Max. drive torque gear head for several spindle units*
|
3 Nm
|
3 Nm
|
|

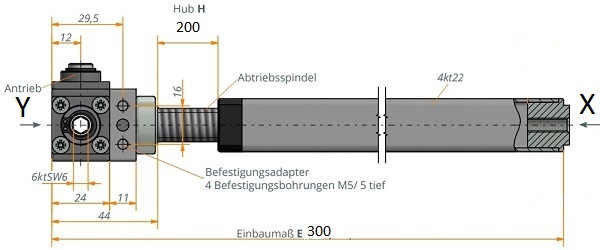

Max. Stroke
| Retracted length -99 mm
| Retracted length -99 mm
|
|
Ratio in direction of spindle
|
1.3:1
|
1.3:1
|
|
Ratio in direction of deflection
|
1:1
|
1:1
|
|

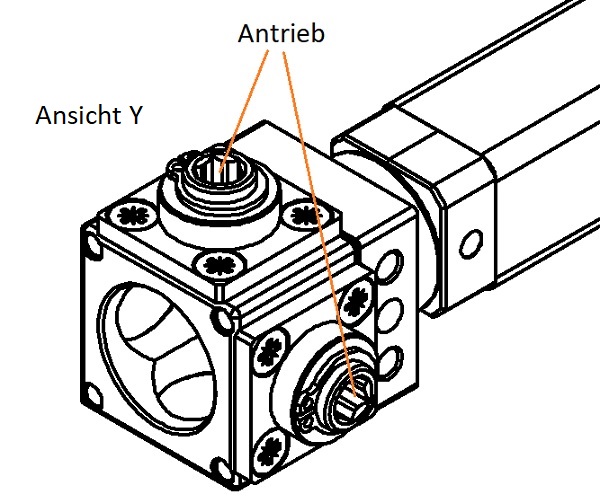

Input
| hex 6 mm | hex 6 mm |
* See technical notes
