DC-Motor drive 3121

Compact 24 V DC motor with 2-stage worm gear, integrated Hall sensors, and continuous internal hexagon (SW 6–8) for accurate positioning.
DC Motor mit Getriebe 24V

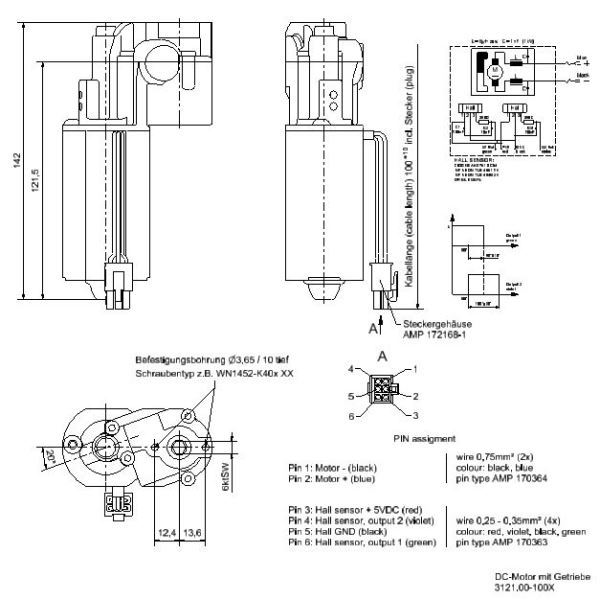

3121 DC Motor mit Getriebe 24V Zeichnung
DC Motor mit Getriebe 24V Zeichnung1
DC Motor mit Getriebe 24V

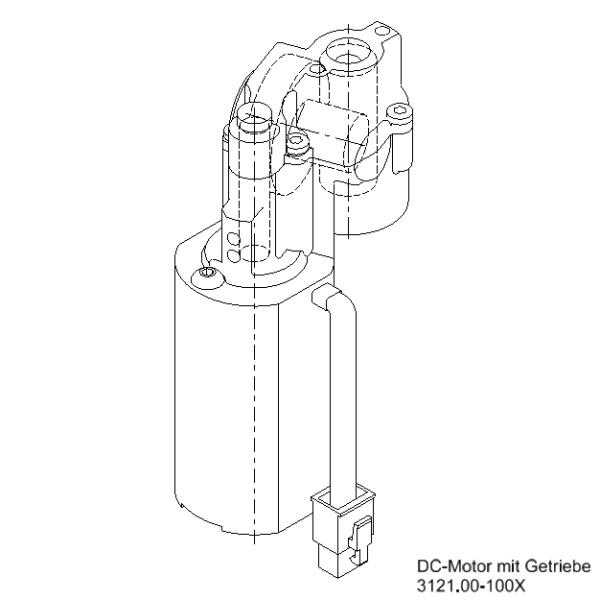

3121 DC Motor mit Getriebe 24V Zeichnung
DC Motor mit Getriebe 24V Zeichnung1
Quantity Unit price
To 4
€87.22*
To 9
€83.65*
To 19
€76.09*
From 20
€71.09*

Prices excl. VAT plus shipping costs

Available, delivery time: 1-3 days

Input
Nominal torque
Stock: 23
Product number: 3121.00-1002
Weight: 0.65 kg
Description

Product information "DC-Motor drive 3121"

Powerful 24 V DC motor with 2-stage worm gear with a continuous internal hexagon on the output. The motor cable with AMP plug and the integrated Hall-sensors allow secure connection and exact positioning of the entire system.

The included cable can be ordered here as a spare part.

Special features

  • Two integrated Hall-sensors for measurement of the revolutions and direction of rotation
  • Through going hexagon socket in wrench widths 6 mm, 7 mm, 8 mm
  • Good self-locking properties
  • 220 mm + 1750 mm motor cable with connector included
  • Can be combined with most Ketterer spindle systems

Technical notes

  • Please note the correct installation position of the drive! The drive is correctly mounted when it turns counterclockwise under load (see installation position/mounting).
  • The drive working range (nominal torque) is determined for a service life of 10.000 double strokes.
  • Through the controller* the system is regulated such that the speed in the entire drive working range is kept as constant as possible.
  • By using a controller with a short-circuit brake the holding torque position of the drive can be increased.
    * In combination with LogicData control box Compact-3

Model 3121.00-1002  3121.00-1003 3121.00-1004
Motor DC Motor 24 V DC Motor 24 V DC Motor 24 V
Sensor/Power supply Hall/5 V DC/0,3 A Hall/5 V DC/0,3 A Hall/5 V DC/0,3 A
Protection class IP30 IP30 IP30
Idle running speed 150 rpm (24 V) 150 rpm (24 V) 150 rpm (24 V)
Duty cycle idle speed 20% (at 5 min.) 20% (at 5 min.) 20% (at 5 min.)
Rated torque* 2,5 Nm 2,5 Nm 2,5 Nm
Duty cycle nominal load* 20 s ON 240 s OFF 20 s ON 240 s OFF 20 s ON 240 s OFF
Short term peak torque (<1sec) 4,5 Nm 4,5 Nm 4,5 Nm
Input hex 6mm hex 7mm hex 8mm


* Load determined for service life of 10.000 double strokes
