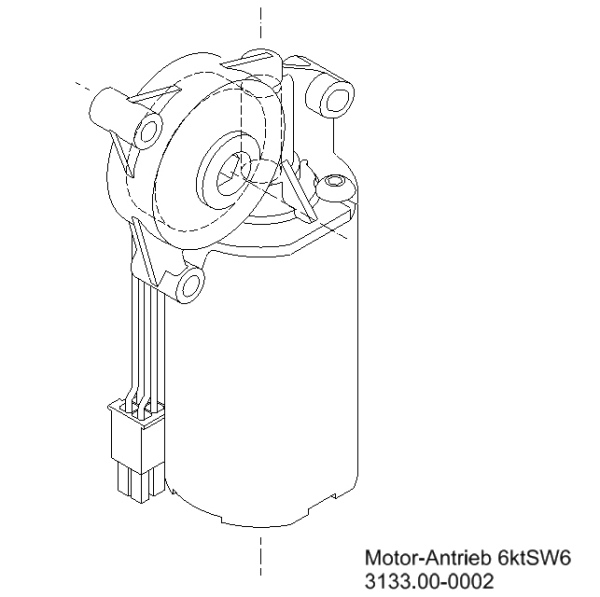

DC-Motor drive 3133.00

24 V DC motor with worm gear for tables, incl. Hall sensors, motor cable & spindle unit - versatile & safe.

€71.25*

Available, delivery time: 1-3 days

Input
Nominal torque
Version
Stock: 6
Product number: 3133.00-0002
Weight: 0.5 kg
Product information "DC-Motor drive 3133.00"

Compact 24 V DC motor with worm gear and continuous internal hexagon. Although the drive was developed for ergonomic table applications, it can be used in many other fields as well. A cable with AMP plug and an integrated Hall-sensor allows an easy and secure control of the entire system.

You can find a suitable spindle unit with motor adapter also in our shop.

Special features

  • Two integrated Hall-sensors for measurement of the revolutions and direction of rotation
  • Continuous internal hexagon in wrench widths 6 mm, 7 mm, 9 mm
  • Good self-locking properties
  • Low noise
  • 100 mm + 1750 mm motor cable with connector included
  • Can be combined with most Ketterer spindle systems

Technical notes

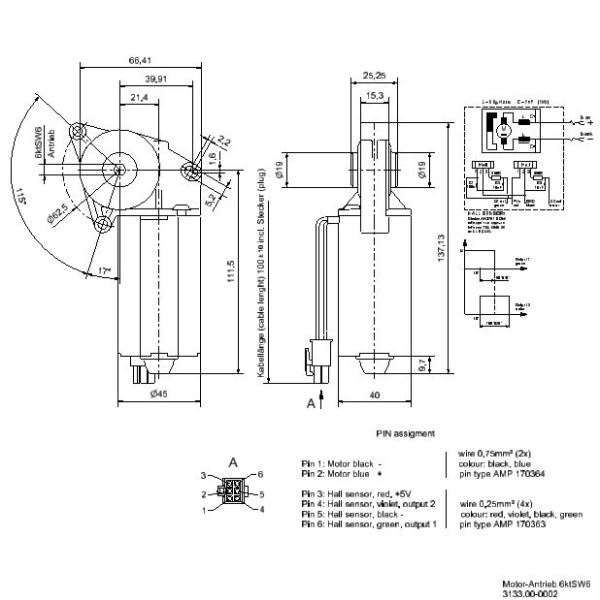

  • To ensure secure operation the motor must be operated in the predefined installation position (see installation position/mounting).
  • The drive working range (nominal torque) is determined for a service life of 10,000 double strokes.
  • The connection position of the drive in the entire system with vibration damping elements can be beneficial. However, the functional reliability position of the drive in the application should be tested.
  • Through the controller* the system is regulated such that the speed in the entire drive working range is kept as constant as possible.
  • By using a controller with a short-circuit brake the holding torque position of the drive can be increased.
* In combination with LogicData control box Compact-3


Model 3133.00-0002 3133.00-0003 3133.00-0001
Version with brake with brake with brake
Motor DC Motor 24 V DC Motor 24 V DC Motor 24 V
Sensor/Power supply Hall/5 V DC/0,3 A Hall/5 V DC/0,3 A Hall/5 V DC/0,3 A
Protection class IP30 IP30 IP30
Idle running speed 120 rpm (24 V) 120 rpm (24 V) 120 rpm (24 V)
Duty cycle with idle running 20% (at 5 Min.) 20% (at 5 Min.) 20% (at 5 Min.)
Rated torque* 2,5 Nm 2,5 Nm 2,5 Nm
Duty cycle with 3,5 Nm* 20 sec ON 4min. OFF 20 sec ON 4min. OFF 20 sec ON 4min. OFF
Short-term peak torque (< 1 sec) 5 Nm 5 Nm 5 Nm
Input hex 6mm hex 6 mm hex 6 mm


Model 3133.00-0014 3133.00-0010 3133.00-0012
Version without brake without brake without brake
Motor DC Motor 24 V DC Motor 24 V DC Motor 24 V
Sensor/Power supply Hall/5 V DC/0,3 A Hall/5 V DC/0,3 A Hall/5 V DC/0,3 A
Protection glass IP30 IP30 IP30
Idle running speed 120 rpm (24 V) 120 rpm (24 V) 120 rpm (24 V)
Duty cycle with idle running 20% (at 5 Min.) 20% (at 5 Min.) 20% (at 5 Min.)
Rated torque* 3,5 Nm 3,5 Nm 3,5 Nm
Duty cycle with 3,5 Nm* 20 sec ON 4min. OFF 20 sec ON 4min. OFF 20 sec ON 4min. OFF
Short-term peak torque (< 1 sec) 5 Nm 5 Nm 5 Nm
Input hex 6 mm hex 7 mm hex 9 mm


* Determined at full load for service life of 10.000 double strokes
