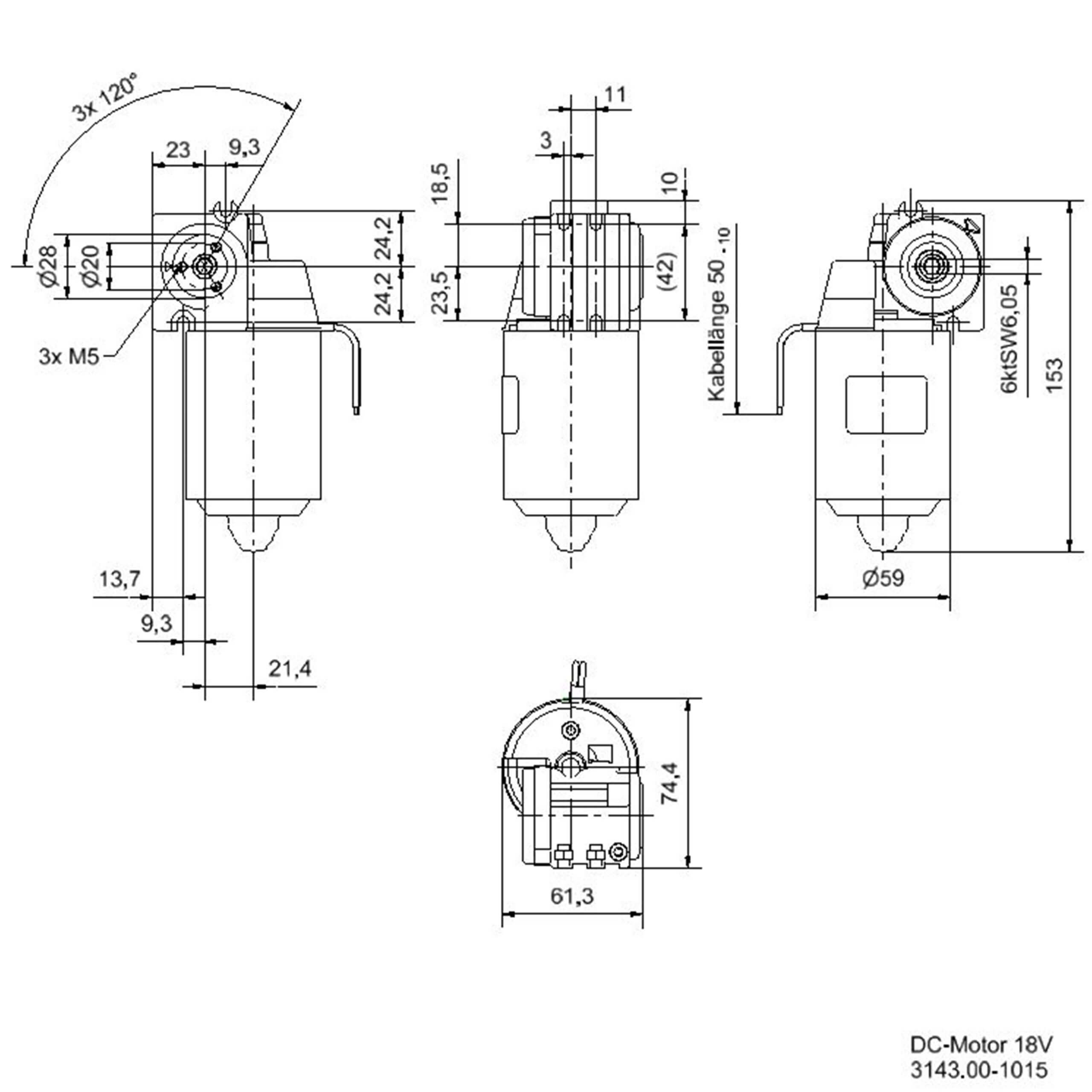

DC-Motor drive 3143

Compact motor drive with hexagon socket - ideal for upgrades from manual to electric motorised operation.

€142.80*

Available, delivery time: 1-3 days

Please note that we are in the period from 05.08.2024 to 16.08.2024 on a business holiday and can only process incoming orders within this period after our return. Deliveries can therefore only be made after the 16.08.2024. Thank you for your comprehension.
Input
Stock: 13
Product number: 3143.00-1015
Weight: 0.94 kg
Product information "DC-Motor drive 3143"
  • Nominal torque 5 Nm
  • Idle speed 115 rpm
  • 1 common drive variant
  • Drive inside hexagonal SW 6 or SW7


Features

Compact motor drive with one continuous hexagon socket.
The gear motor serves as a simple upgrade from the manually operated variant to the electric motor solution


Series 3143.00-1015 3143.00-1041
Motor operating voltage 6 - 30 V 6 - 30 V
Motor rated voltage 18 V 18 V
Drive: inside 6kt SW6 inside 6kt SW7
Gear number: 1 common 1 common
Duty cycle 20% (bei 5 Min.) 20% (bei 5 Min.)
Protection class IP 30 IP 30
Idle speed 115 U/min 115 U/min
max drive torque  5 Nm 5 Nm
Rated current 3,3 A bei 5 Nm 3,3 A bei 5 Nm
Weight: 981 g 981 g
Motor cable: 2 strands L50mm 2 strands L50mm


Powerful DC motor with worm gear and continuous hexagon socket. The drive was developed for ergonomic table applications, but is also used in many other areas.


Special features

  • Continuous hexagon socket in width across flats SW6 / SW7
  • Good self-locking properties
  • Can be combined with all Ketterer spindle systems


Technical information

  • The working range of the drive (nominal torque) is determined at the service life of 10,000 double strokes.
  • By using a control with short-circuit brake, the holding torque of the drive can be significantly increased.
