Deflection 90° l Transmission ratio 1:1 l Max. drive torque 4 Nm l hexagon SW6 l 4 variants axle: without , 50, 80 or 100 mm

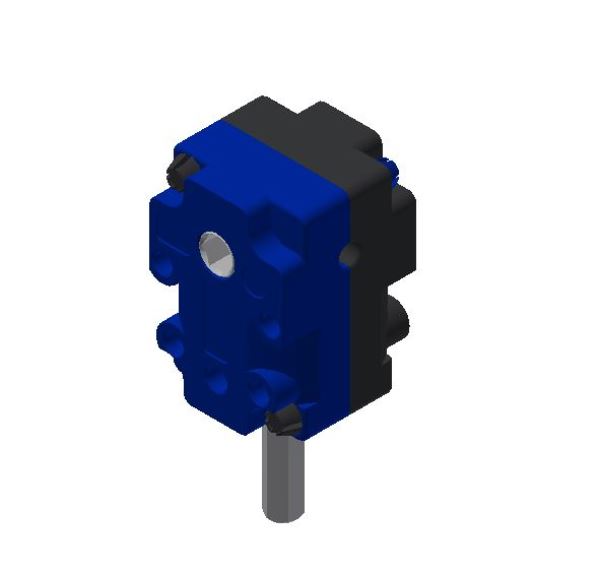

Features Deflection gear 3039

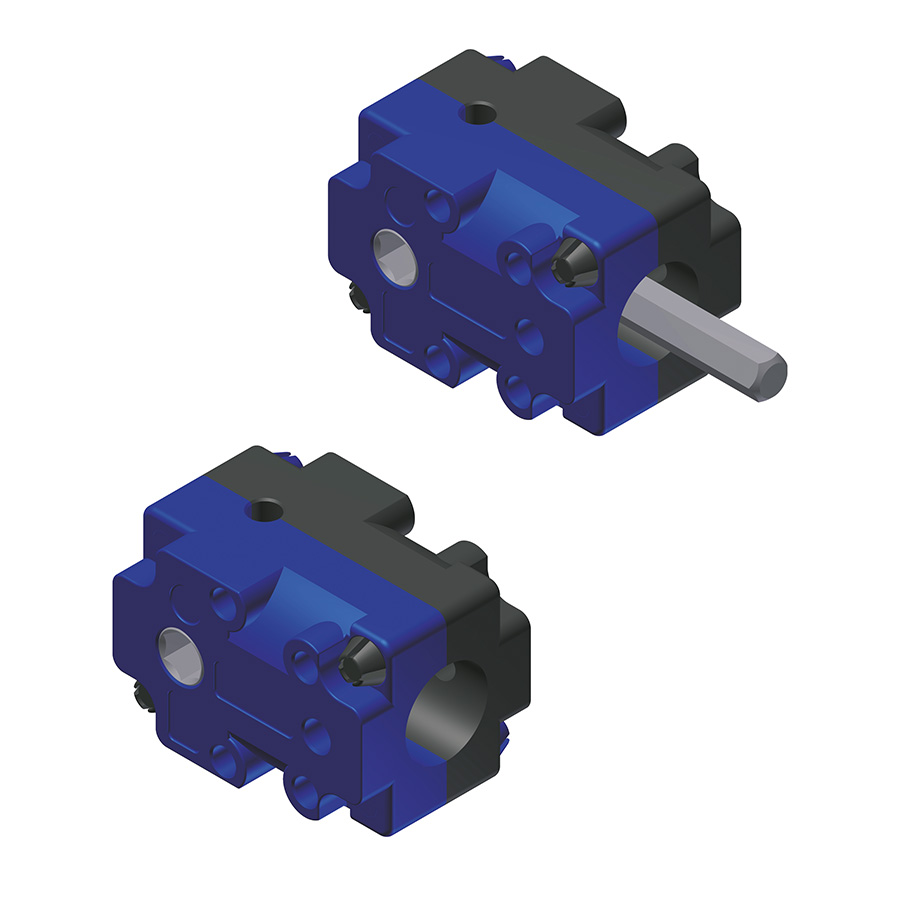

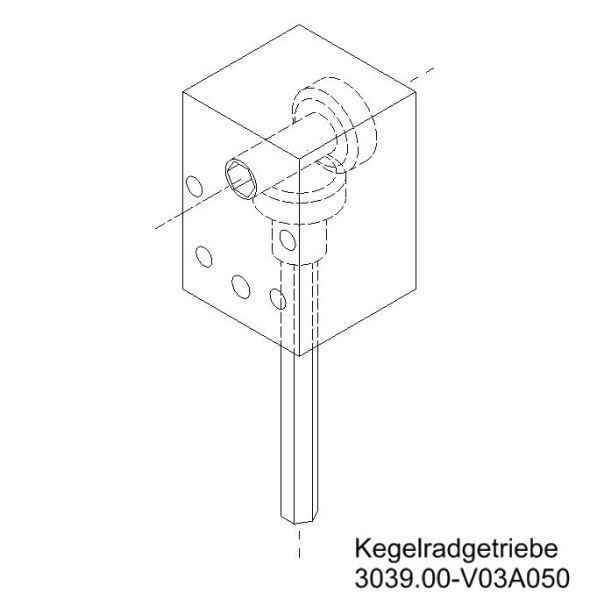

Bevel gearbox for the deflection of a rotary motion at a 90° angle. The gearbox can be supplied with a 6kt axis or without an axis. A simple screw mounting allows an uncomplicated assembly. The bevel gearboxes within this product group differ in their projection and can be selected as desired:
| 3039.00-0001 | 3039.00-V03A050 | 3039.00-V03A080 | 3039.00-V03A100 | |
| Throat | Without throat | 50mm | 80mm | 100mm |
Special features
- Maintenance-free
- Case hardened steel bevel wheels
- Housing made of reinforced glass-fiber
- Suitable for both manual and electric motor drives
Technical data
| Speed range till: | 150 rpm |
| Max. drive torque: | 4 Nm |
| Ratio: | 1 : 1 |
| Input/Output: | hex 6mm |
| Outreach: | without /50 mm / 80 mm / 100 mm |
| Number of bevel wheels: | 2 |

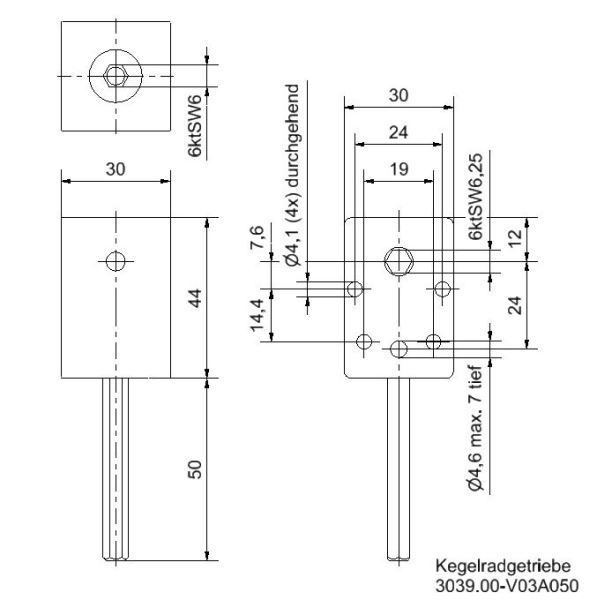

| Dimensions: | 30 x 30 x 44 mm |
| Weight: | 70 g - 88 g |
| Self-locking: | no |
| On/Off duration: | 20% (at 5Min.) |
| Allowable operating temperature: | 0°C to 40°C |
| Housing: | reinforced glass-fiber |
| Special features: |
case-hardened steel bevel wheels |
Application
The bevel gearboxes are suitable for both manual and electric motor drive. They are generally suitable for use wherever movement or forces have to be diverted.
