Deflection gear 3045
90° bevel gearbox: Maintenance-free, with/without 6-axis, simple installation. Ideal for manual/electric motorised drives.
| Quantity | Unit price |
|---|---|
| To 4 |
€32.70*
|
| To 9 |
€30.50*
|
| To 19 |
€28.35*
|
| From 20 |
€26.15*
|
Available, delivery time: 1-3 days
Stock:
17
Product number:
3045.00-3001
Weight:
0.08 kg
Description
Product information "Deflection gear 3045"

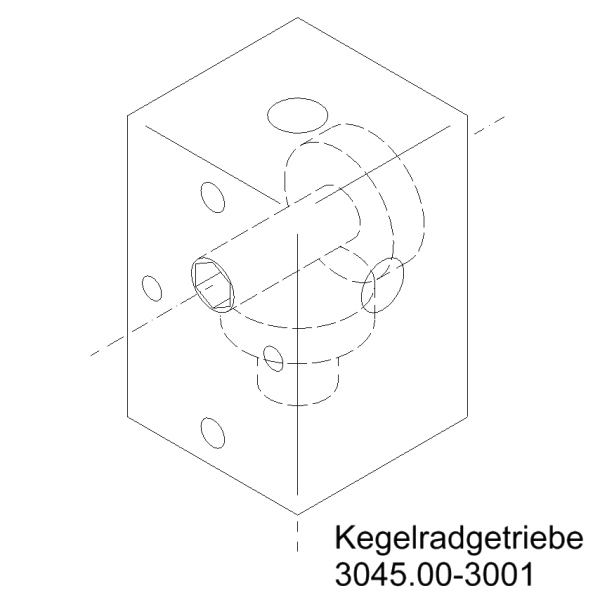

This bevel gearbox is designed for precise 90-degree redirection of rotary motion. It can be supplied with a custom-length hexagonal shaft or without a shaft, depending on your application needs. The simple screw-mount design allows for quick and easy installation.
Special Features
- Maintenance-free operation
- High-quality hardened steel bevel gears

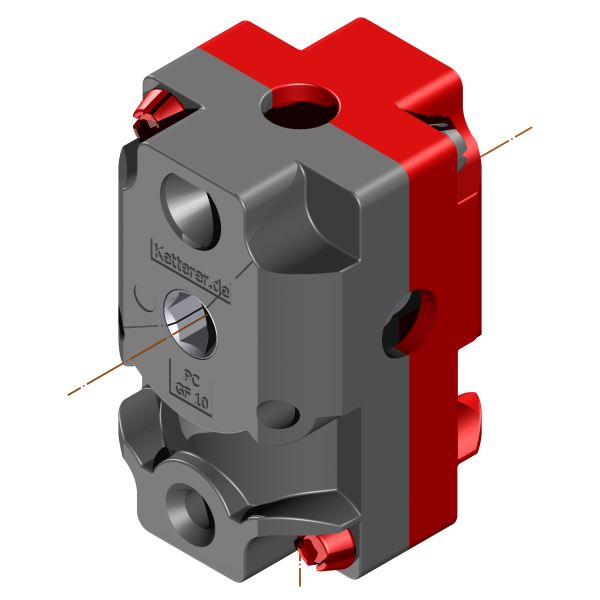

- Lightweight yet robust housing – made of glass fiber reinforced plastic

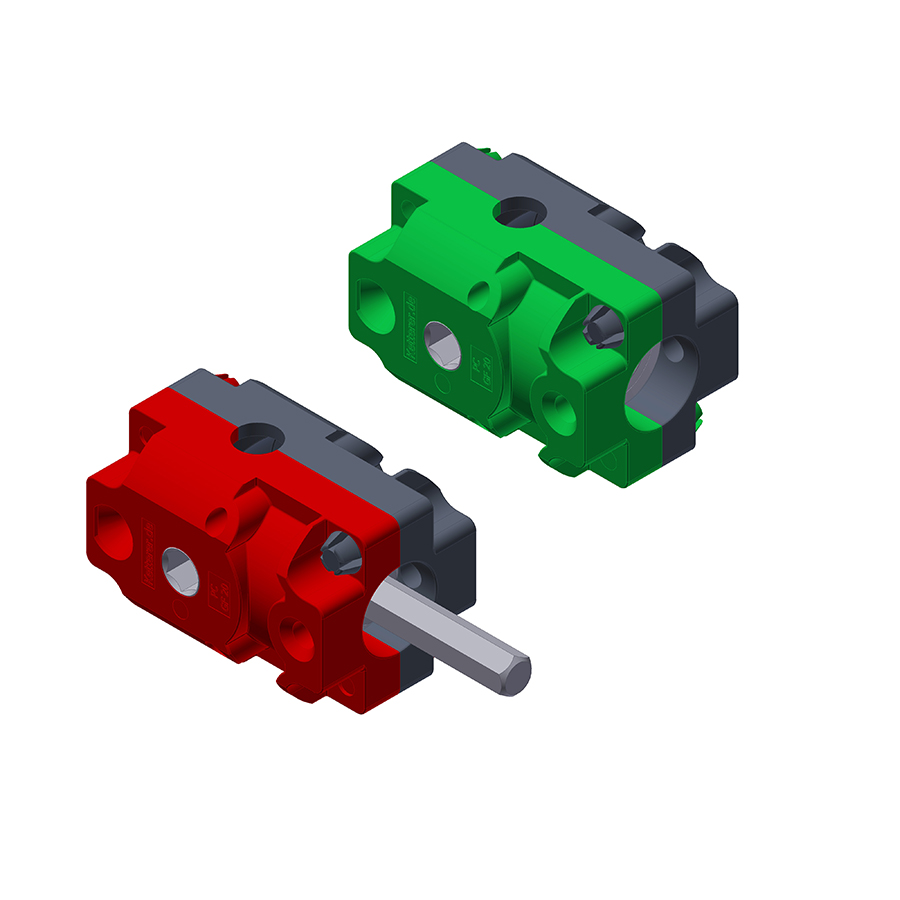

- Available in two gear ratios: 1 : 1 (red-black) und 2 : 1 (green-black)
-
Versatile use – suitable for both manual and motor-driven applications

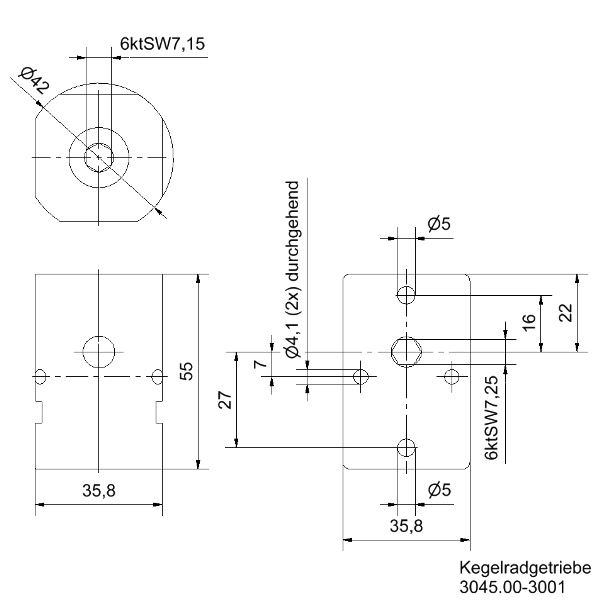

Technical Data
| Model | 3045.00-3001 | 3045.00-3002 | 3045.00-V04A050 | 3045.00-V04A080 | 3045.00-V04A100 |
|
Ratio
| 1:1 | 2:1* | 1:1 | 1:1 | 1:1 |
|
Input/Output
|
hex 7 mm
|
hex 7 mm
|
hex 7 mm
|
hex 7 mm
| hex 7 mm |
|
Number of bevel wheels
| 2 | 2 | 2 | 2 | 2 |
|
Max. drive torque
|
5.5 Nm
|
5.5 Nm
|
5.5 Nm
|
5.5 Nm
| 5.5 Nm |
|
Length A
| - | - | 50 mm | 80 mm | 100 mm |
|
Housing material
| Synthetic | Synthetic | Synthetic | Synthetic | Synthetic |
* Input to output
Datasheets
1
3D files
Note: The link will take you to our Nextcloud platform, where you
can directly download the STEP file. Please be aware that you will be
redirected to an external site.
