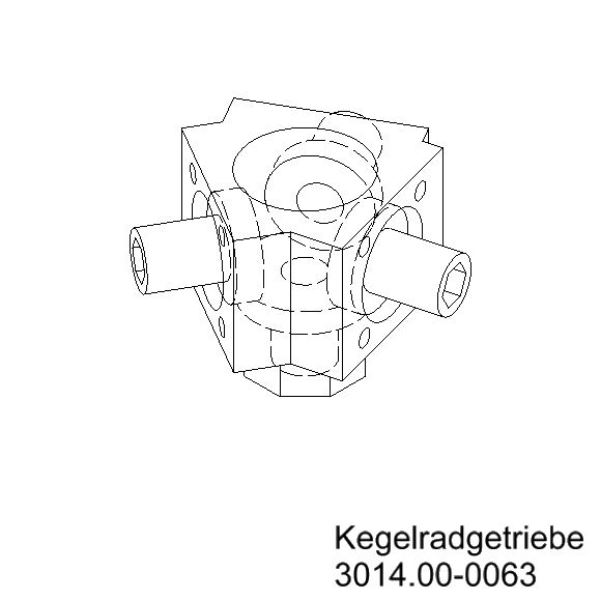

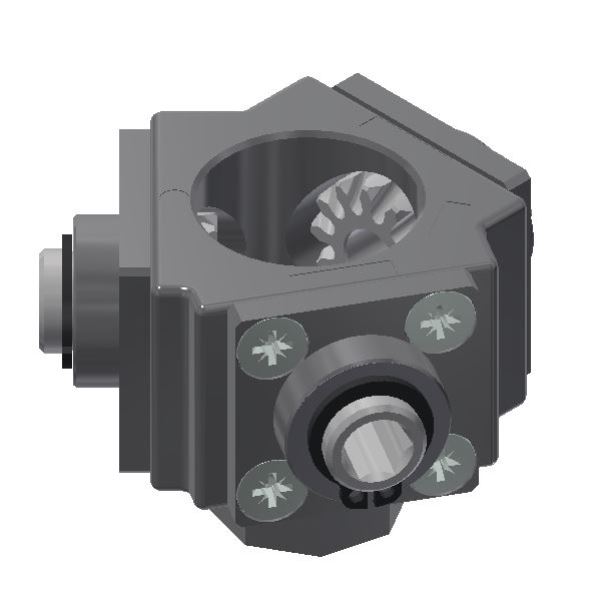

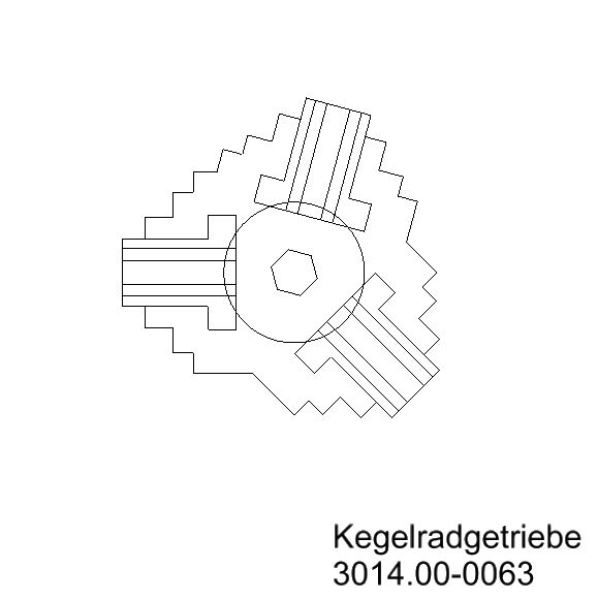

Deflection gear unit 3014 in plastic housing
| Quantity | Unit price |
|---|---|
| To 4 |
€32.00*
|
| To 9 |
€29.90*
|
| To 19 |
€27.80*
|
| From 20 |
€25.60*
|
Available, delivery time: 1-3 days
Product information "Deflection gear unit 3014 in plastic housing"
Deflection 120° or 135° l Transmission ratio 1.3:1 l Drive torque 3 Nm l Designed for manual operation
Properties
A bevel gearbox family for use as a deflection gear in up to two directions. Deflection of rotational movement possible at angles of 120° or 135°.
Simple screw mounting on the adaptor facilitates uncomplicated assembly.
Special features
- Maintenance-free
- Case hardened steel bevel wheels
- Housing made of reinforced glass-fiber at an angle of 120° or 135°
- Designed for the manual operation
Technical data bevel gearbox
| Max. drive torque: | 3 Nm |
| Ratio: | 1 : 1 |
| 90° downward ratio: | 1,33 : 1 |
| Speed range till: | 150 rpm |
| Input/Output: | hex 6mm |

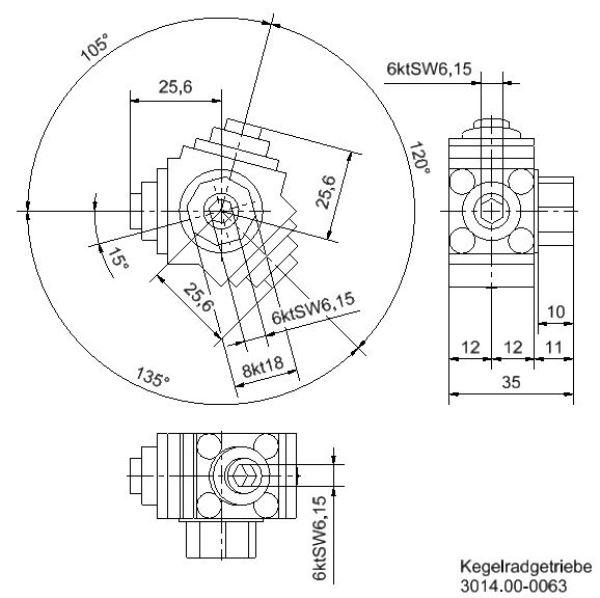

| Dimensions: | 35 x 45 x 45 mm |
| Self-locking: | no |
| On/Off duration: | 20% (at 5Min.) |
| Allowable operating temperature: | 0 to 40°C |
| Housing: | reinforced glass-fiber |
| Special features: | case hardened steel gear wheels |
Application bevel gearbox
The bevel gearboxes are also called reversing gearboxes. Therefore, they are suitable for use wherever movements and forces have to be transmitted at an angle. Exemplary application areas would be in model making, special machine construction or hobby areas.
