Inline spindle drive 4645 Heavy load
| Quantity | Unit price |
|---|---|
| To 4 |
€214.00*
|
| To 9 |
€200.00*
|
| To 19 |
€185.50*
|
| From 20 |
€171.25*
|
Available in 30 days, delivery time 1-3 days
Product information "Inline spindle drive 4645 Heavy load"
The Inline Spindle Drive 4645 is the ideal solution for applications where heavy loads of up to 220 kg need to be moved precisely and reliably. With a lifting speed of up to 25 mm/s, the drive ensures efficient processes, even in demanding industrial applications. Thanks to its slim design, it can be seamlessly integrated into guides while requiring only minimal installation space.
Special Features
-
Power and speed combined: High load capacity with excellent travel speed.
-

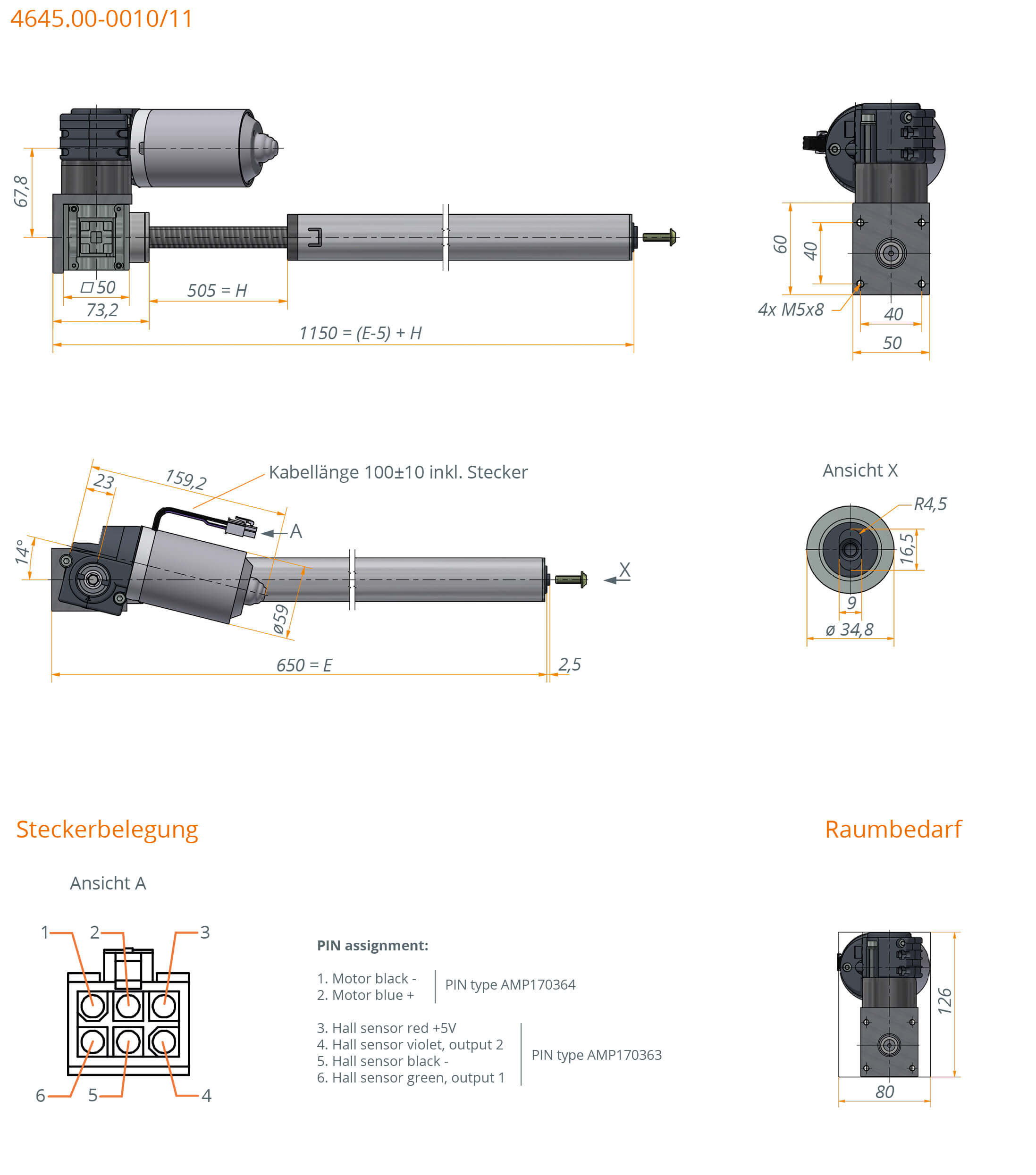

Compact design: Requires only 80 x 126 mm of installation space – ideal for tight constructions.
-
Integrated precision: Equipped with a position measuring system for exact lifting movements.
-
Flexible configuration: Available with or without pivot mount.
-
High stability: Equipped with an axial bearing for loads from 150 kg upwards.
-
Customizable stroke: Up to 500 mm stroke length, individually tailored to customer requirements.
-
Variable interfaces: Gear-side connection can be implemented according to customer specifications.
Technical Data
|
Model
| 4645.00-0010 | 4645.00-0011 |
| Motor |
DC motor 24 V
| DC motor 24 V |
|
Sensor/Power supply
|
Hall/5 V DC/0.3 A
| Hall/5 V DC/0.3 A |
|
Protection class
| IP30 | IP30 |
|
Idle running speed
| 150 rpm (24V) 190 rpm* | 150 rpm (24V) 190 rpm* |
|
Max. Stroke
| 500 mm** | 500 mm** |
| Installation dimension | 650 mm | 650 mm |
| Duty cycle in idle mode | 20% at 5 min. | 20% at 5 min. |
| Duty cycle at max. load | 5% at 7 min. | 5% at 9 min. |
| Type of spindle | SG16x8 P4 RH | TR16x4 RH |
| Max. lifting force | 1500 N | 2200 N |
| Movement speed | 25 mm/s | 13 mm/s |
| Static self-locking | 200 kg | 400 kg |
*In combination with LogicData control box Compact-3
**It is essential to consider the buckling forces in the system
Technical Notes
- Optimized for table and lifting applications with a service life of approx. 10,000 double strokes.
- Using a controller with a short-circuit brake significantly increases the holding torque.
- In combination with the LogicData Compact-3 controller, the speed remains constant across the entire operating range – ensuring maximum process reliability.
Note: The link will take you to our Nextcloud platform, where you can directly download the STEP file. Please be aware that you will be redirected to an external site.
