Monitor-/TV-Lift Ket Screen Lift L 4701

Compact lift unit as a set for screens up to 30kg. Simple installation and direct commissioning.

Product information "Monitor-/TV-Lift Ket Screen Lift L 4701"

Height adjustment for screens up to 50" and max 30kg l Max load 300N l Travel speed 90mm/s l Stroke 1000mm

Also available for screens up to max. 70 kg on request.


Features

Cost-effective, compact lift unit for screens up to 50" and weights up to 30 kg.

The TV lifts or Ket screens are supplied as a set.

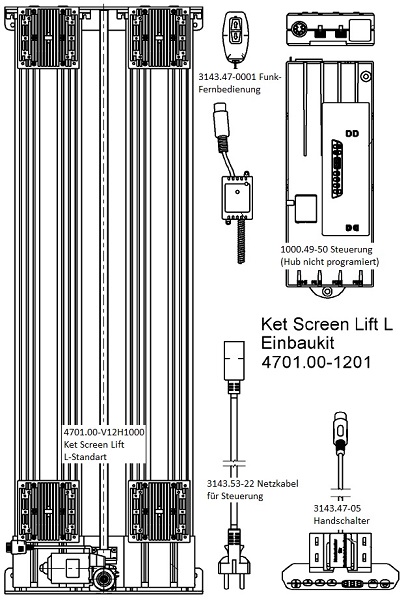

Included in the set:
  • Ket Screen Lift
  • Manual switch
  • Control unit Compact-3 (for mains voltage 230V)
  • Mains cable
  • Radio remote control
  • Operating instructions
  • Adjusting screws

Special features
  • High travel speed
  • easy assembly for a wide variety of installation situations
  • any stroke length, up to max. 1100 mm
  • low noise level also allows use in noise-sensitive areas

Technical specifications

4701.00-1201
Hub 1000 mm

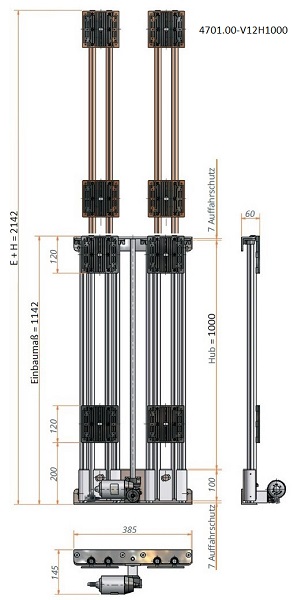

Minimum installation dimension     Hub + 142 mm
Maximum load 300 N
Maximum screen load          50 Zoll
Traversing speed           90 mm/s


Technical information
When installing in an enclosure, care must be taken to avoid pinch points.
Downloads "Monitor-/TV-Lift Ket Screen Lift L 4701"

3D data (in STEP format) is saved to your computer as a zip file. After unzipping the files, you can open and view the data using an STP viewer (e.g. the free Autodesk Viewer). Please note that you will be taken to an external website. Create a customer account there to download the 3D files.
