Monitor-/TV-Lift Ket Screen Lift S 4701
Efficient and compact TV lifts up to 24 inch, 25 kg, incl. set for easy commissioning. Ideal for space-saving screen solutions.
| Quantity | Unit price |
|---|---|
| To 4 |
€511.84*
|
| To 9 |
€492.89*
|
| To 19 |
€473.94*
|
| From 20 |
€454.98*
|
Available, delivery time: 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock:
10
Product number:
4701.00-0301
Weight:
5.5 kg
Product information "Monitor-/TV-Lift Ket Screen Lift S 4701"
Height adjustment for screens up to 24" l Choice of 2 versions l Max load 250N l Travel speed 90mm/s
Cost-efficient, compact lifting system for screens up to 24” and weights up to 25 kg.

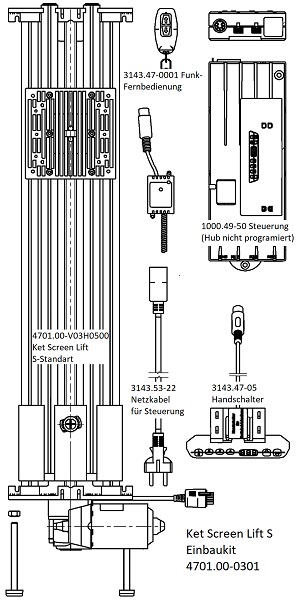

Included in the set: Ket Screen Lift, hand switch, control Compact-3 (for mains voltage 230V), power cable, remote control, operating instructions and set screws.
Special features
Technical information
Security note
Beim Einbau in ein Gehäuse ist auf die Vermeidung von Quetschstellen zu achten.
- High lifting speed
- Simple installation for different assembly situations
- Can be supplied with any stroke up to 750 mm
- Very low noise level allows applications in noise sensitive areas

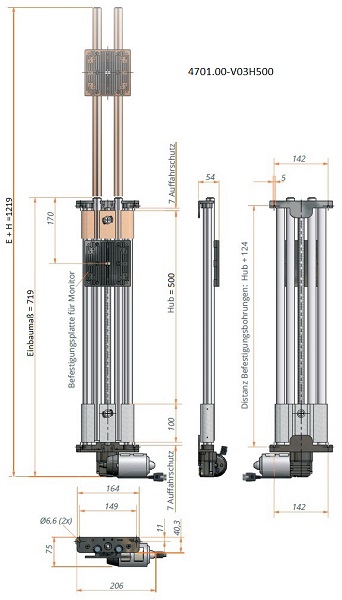

Technical information
| 4701.00-V03H0500 | 4701.00-V05H0600 | |
| Stroke | 500 mm | 600 mm |
| Retracted length | Stroke + 219 mm | Stroke + 157 mm |
| Maximum load | 250 N | 250 N |
| Maximum screen size | 24 inch | 24 inch |
| Movement speed | 90 mm/s | 90 mm/s |
Security note
Beim Einbau in ein Gehäuse ist auf die Vermeidung von Quetschstellen zu achten.
Downloads "Monitor-/TV-Lift Ket Screen Lift S 4701"
3D data (in STEP format) is saved to your computer as a zip file. After
unzipping the files, you can open and view the data using an STP viewer
(e.g. the free Autodesk Viewer). Please note that you will be taken to
an external website. Create a customer account there to download the 3D
files.
