Motor drive 3133.00
Direct current gear motor 24V for ergonomic table applications or for flexible use as a drive solution.
| Quantity | Unit price |
|---|---|
| To 4 |
€79.40*
|
| To 9 |
€75.77*
|
| To 19 |
€72.64*
|
| From 20 |
€69.39*
|
Available, delivery time: 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock:
19
Product number:
3133.00-1002
Weight:
0.6 kg

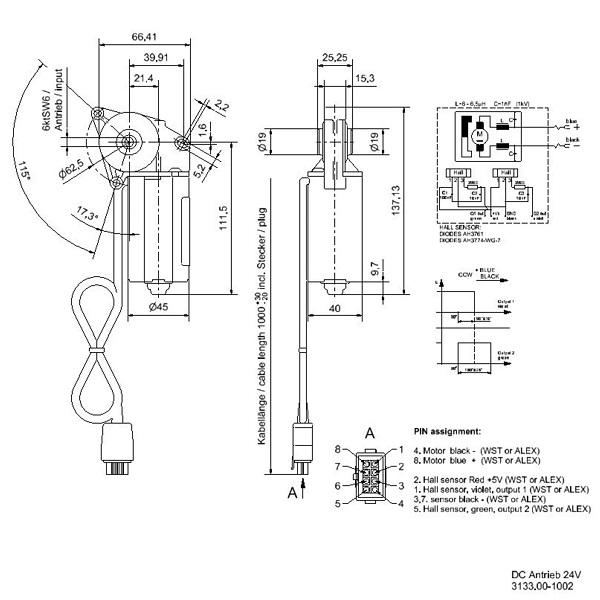

Product information "Motor drive 3133.00"
Compact 24 V DC motor with worm gear and continuous internal hexagon. Although the drive was developed for ergonomic table applications, it can be used in many other fields as well. A cable with AMP plug and an integrated Hall-sensor allows an easy and secure control of the entire system.
* Determined at full load for service life of 10.000 double strokes
Special features
- Two integrated Hall-sensors for measurement of the revolutions and direction of rotation
- Continuous internal hexagon in wrench widths 6 mm, 7 mm, 9 mm
- Good self-locking properties
- Low noise
- 100 mm + 1750 mm motor cable with connector included
- Can be combined with most Ketterer spindle systems
Technical notes
- To ensure secure operation the motor must be operated in the predefined installation position (see installation position/mounting)
- The drive working range (nominal torque) is determined for a service life of 10,000 double strokes.
- The connection position of the drive in the entire system with vibration damping elements can be beneficial. However, the functional reliability position of the drive in the application should be tested.
- Through the controller* the system is regulated such that the speed in the entire drive working range is kept as constant as possible.
- By using a controller with a short-circuit brake the holding torque position of the drive can be increased.
* In combination with LogicData control box Compact-3
| Model | 3133.00-1002 | 3133.00-1003 | 3133.00-0009 |
| Version | with brake | with brake | with brake |
| Motor | DC Motor 24 V | DC Motor 24 V | DC Motor 24 V |
| Sensor/Power supply | Hall/5 V DC/0,3 A | Hall/5 V DC/0,3 A | Hall/5 V DC/0,3 A |
| Protection class | IP30 | IP30 | IP30 |
| Idle running speed | 120 rpm (24 V) | 120 rpm (24 V) | 120 rpm (24 V) |
| Duty cycle with idle running | 20% (at 5 Min.) | 20% (at 5 Min.) | 20% (at 5 Min.) |
| Rated torque* | 2,5 Nm | 2,5 Nm | 2,5 Nm |
| Duty cycle with 3,5 Nm | 20 sec ON 4min. OFF | 20 sec ON 4min. OFF | 20 sec ON 4min. OFF |
| Short-term peak torque (< 1 sec) | 5 Nm | 5 Nm | 5 Nm |
| Input | hex 6mm | hex 7 mm | hex 9 mm |
| Model | 3133.00-0016 | 3133.00-0017 | 3133.00-0011 |
| Version | without brake | without brake | without brake |
| Motor | DC Motor 24 V | DC Motor 24 V | DC Motor 24 V |
| Sensor/Power supply | Hall/5 V DC/0,3 A | Hall/5 V DC/0,3 A | Hall/5 V DC/0,3 A |
| Protection glass | IP30 | IP30 | IP30 |
| Idle running speed | 120 rpm (24 V) | 120 rpm (24 V) | 120 rpm (24 V) |
| Duty cycle with idle running | 20% (at 5 Min.) | 20% (at 5 Min.) | 20% (at 5 Min.) |
| Rated torque* | 3,5 Nm | 3,5 Nm | 3,5 Nm |
| Duty cycle with 3,5 Nm* | 20 sec ON 4min. OFF | 20 sec ON 4min. OFF | 20 sec ON 4min. OFF |
| Short-term peak torque (< 1 sec) | 5 Nm | 5 Nm | 5 Nm |
| Input | hex 6 mm | hex 7 mm | hex 9 mm |
* Determined at full load for service life of 10.000 double strokes
Downloads "Motor drive 3133.00"
Login
Accessories

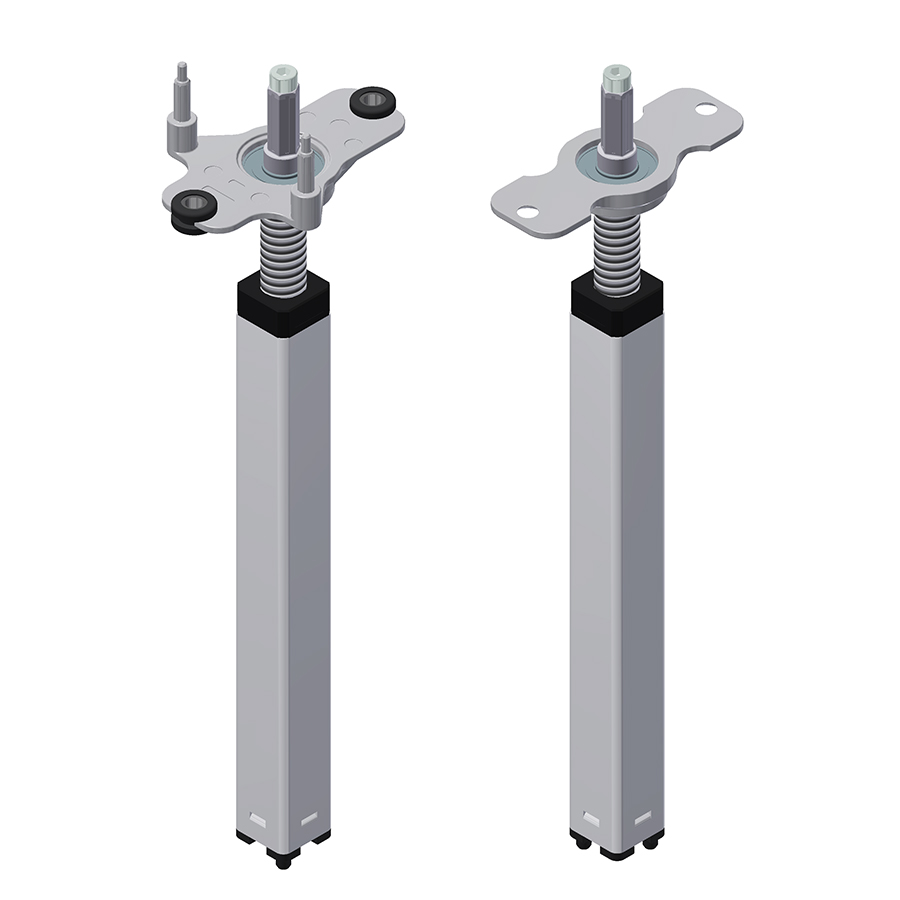

Spindle unit with motoradapter 3130.14
