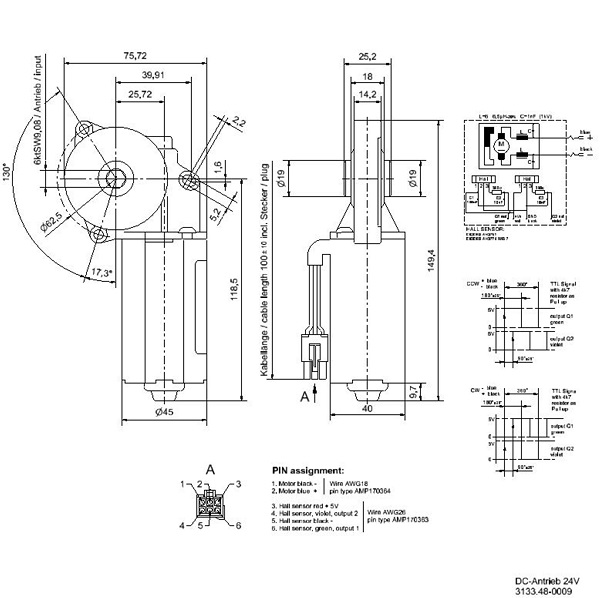

Motor drive 3133.48
24 V DC motor with worm gear and hexagon socket - ideal for tables, versatile with Hall sensors.
Stock:
4
Product number:
3133.48-0009
Weight:
0.52 kg
Product information "Motor drive 3133.48"
Compact 24 V DC motor with worm gear and a continuous internal hexagon. Although the drive was developed for ergonomic table applications, it can be used in many other fields. A cable with AMP plug and an integrated Hall-sensor allows easy and secure control of the entire system.
The included cable can be ordered here as a spare part. You can also order the matching spindle unit with motoradapter in our store.Special features
- Two integrated Hall-sensors for measurement of the revolutions and direction of rotation
- Through going hexagon socket in wrench widths 6 mm and 9 mm
- Good self-locking properties
- Low noise
- 1000 mm + 1750 mm motor cable with connector included
- Can be combined with all Ketterer spindle systems
Technical notes
- The drive working range (nominal torque) is determined for a service life of 10.000 double strokes.
- Through the controller* the system is regulated such that the speed in the entire drive working range is kept as constant as possible.
- By using a controller with a short-circuit brake the holding torque position of the drive can be increased.
*In combination with LogicData control box Compact-3
| Model | 3133.48-0009 | 3133.48-0016 |
| Motor | DC Motor 24 V | DC Motor 24 V |
| Sensor/Power supply | Hall/5 V DC/0,3 A | Hall/5 V DC/0,3 A |
| Protection class | IP30 | IP30 |
| Duty cycle idle speed | 20% (at 5 Min.) | 20% (at 5 Min.) |
| Idle running speed | 100 rpm (24 V) | 100 rpm (24 V) |
| Rated torque* | 5 Nm | 5 Nm |
| Duty cycle nominal load | 20 s ON/ 240 s OFF | 20 s ON/ 240 s OFF |
| Short term peak torque (<1sec) | 8 Nm | 8 Nm |
| Input | hex 9mm | hex 6mm |
