Motor drive 3133.48

24 V DC motor with worm gear and hexagon socket - ideal for tables, versatile with Hall sensors.

DC Getriebemotor 24V l 5 Nm l Antrieb 6kt SW6

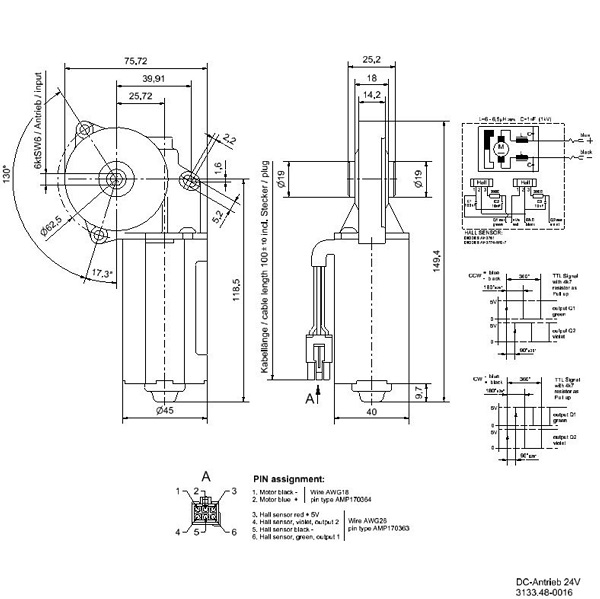

DC Getriebemotor 24V l 5 Nm l Antrieb 6kt SW6 Zeichnung

Quantity	Unit price
To 4	€57.00*
To 9	€53.20*
To 19	€49.40*
From 20	€45.60*

Prices excl. VAT plus shipping costs

excl. VAT

incl. VAT

Available, delivery time: 1-3 days

Input

internal hex 9 mm

internal hex 6 mm

Nominal torque

5A / 5 Nm

Stock: 17

Product number: 3133.48-0016

Weight: 0.52 kg

Product information "Motor drive 3133.48"

This compact 24V DC motor with worm gear was originally designed for ergonomic desk applications, but is also widely used in many other areas. The integrated AMP connector cable and built-in Hall sensors ensure safe operation and easy control of the entire system.

We also stock a suitable motor cable and the matching spindle unit with motor adapter.

Special Features

Two integrated Hall sensors for detecting rotations and direction of rotation
Continuous hexagon socket available in SW6 and SW9
High torque in a compact design
Excellent self-locking properties
Low-noise operation
100 mm motor cable with connector included
Compatible with most Ketterer spindle systems

Variant Key

The variants differ by the hexagon socket sizes.

Technical Notes

The rated torque is designed for a lifetime of 10,000 double strokes.
With the appropriate control unit, the drive speed remains constant across the entire working range.
Using a control unit with a short-circuit brake significantly increases the holding torque.

* In combination with LogicData control box Compact-3

Technical Data

Model	3133.48-0009	3133.48-0016
Motor	DC motor 24 V	DC motor 24 V
Sensor/Power supply	Hall/5 V DC/0.3 A	Hall/5 V DC/0.3 A
Protection class	IP30	IP30
Duty cycle idle speed	20% (at 5 Min.)	20% (at 5 Min.)
Idle running speed	100 rpm (24 V)	100 rpm (24 V)
Rated torque*	5 Nm	5 Nm
Duty cycle nominal load	20 s ON/ 240 s OFF	20 s ON/ 240 s OFF
Short term peak torque (<1sec)	8 Nm	8 Nm
Input	hex 9 mm	hex 6 mm

* Load determined for service life of 10,000 double strokes
