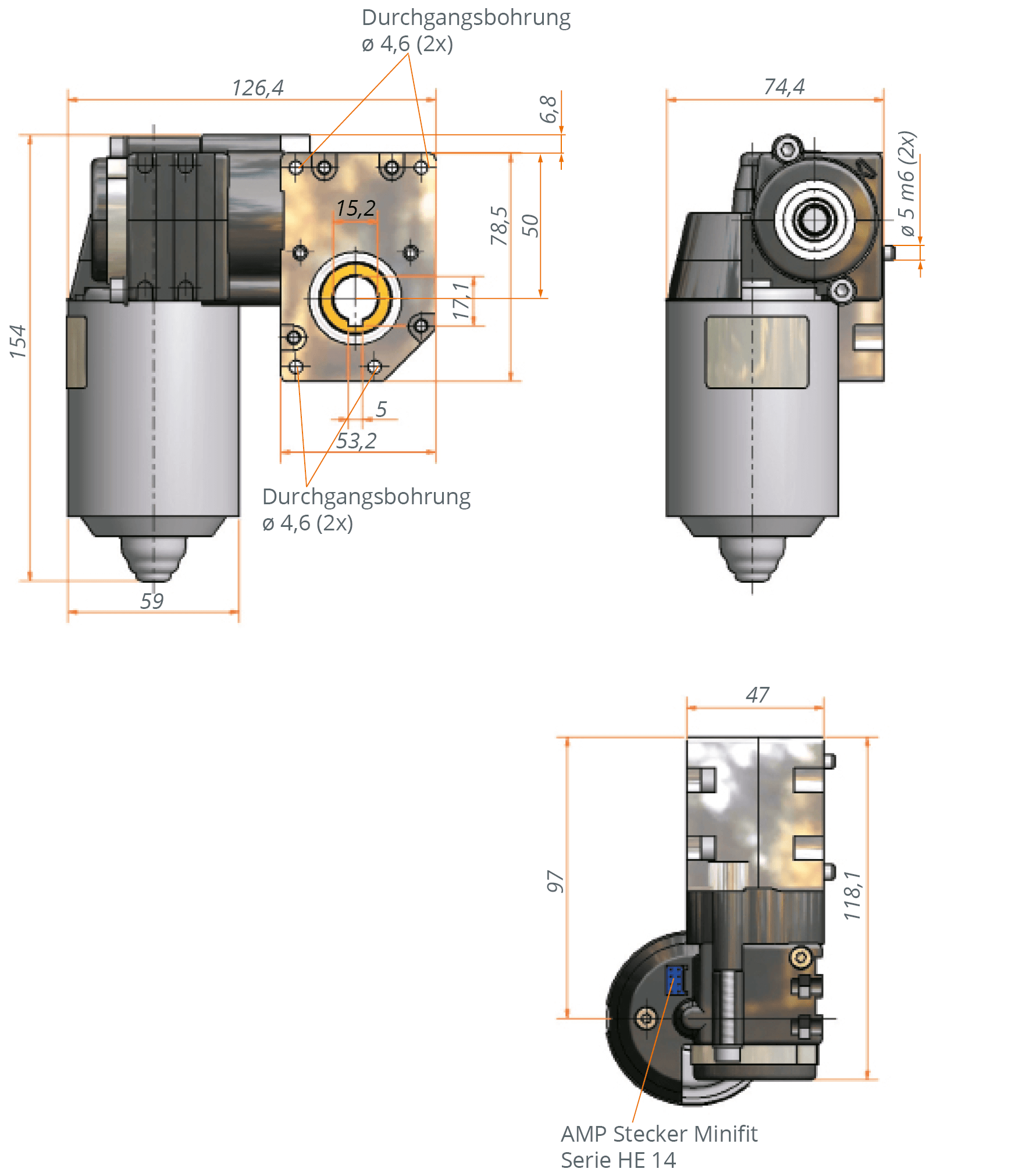

Motor drive 4773
Powerful 24 V DC motor drive featuring worm & planetary gears. Precise, low-noise operation with Hall sensors for exact positioning.
| Quantity | Unit price |
|---|---|
| To 4 |
€420.15*
|
| To 9 |
€392.14*
|
| To 19 |
€364.13*
|
| From 20 |
€336.15*
|
Available in 30 days, delivery time 1-3 days
Product number:
4773.00-0002
Weight:
1.997 kg
Description
Product information "Motor drive 4773"
Powerful 24V DC Motor with a Combination of Two Worm Gear Stages and a Planetary Gear. Thanks to its high gear ratio, it enables precise control and exact positioning.
Key features
- Compact design with a precise gearbox for demanding positioning adjustments
- High gear ratio
- High torque
- Two integrated Hall sensors for detecting rotations and rotational direction
- Low noise
Technical Specifications
| Model | 4773.00-0002 |
| Motor |
DC motor 18 V
|
|
Sensor/Power supply
|
Hall/5 V DC/0.3 A
|
|
Protection class | IP30 |
|
Duty cycle idle speed
|
20% (at 5 min.)
|
|
Max. drive torque* |
40 Nm |
|
Input |
bore hole with keyway |
*
Load determined for service life of 10,000 double strokes
Downloads "Motor drive 4773"
Datasheets
1
3D files
Note: The link will take you to our Nextcloud platform, where you
can directly download the STEP file. Please be aware that you will be
redirected to an external site.
