Profile tube l Wedge grain profile DIN 5463-6x16x20 l 6 teeth

Aluminium serrated profile with an outer diameter of 10.7 mm and an inner diameter of 10.05 mm, available in 1000 mm lengths.
Profilrohr l Keilnarbenprofil DIN 5463-6x16x20 l 6 Zähnel Länge 1000mm/2000mm
Profilrohr l Keilnarbenprofil DIN 5463-6x16x20 l 6 Zähnel Länge 1000mm/2000mm
Profilrohr l Keilnarbenprofil DIN 5463-6x16x20 l 6 Zähnel Länge 1000mm/2000mm
Profilrohr l Keilnarbenprofil DIN 5463-6x16x20 l 6 Zähnel Länge 1000mm/2000mm

€19.28*

Prices incl. VAT plus shipping costs

Available, delivery time: 1-3 days

Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Length
Stock: 24
Product number: 2010.11-V02L1000

Product information "Profile tube l Wedge grain profile DIN 5463-6x16x20 l 6 teeth"

2 versions to choose from l Outer diameter 19.7mm l Inner diameter 10.05mm l Length 1000mm l EN AW6063 T66

Properties

Our notched wave profile made of aluminium has an outer diameter of 10.7 mm and an inner diameter of 10.05 mm. The profile tube is available in 1000mm lengths.

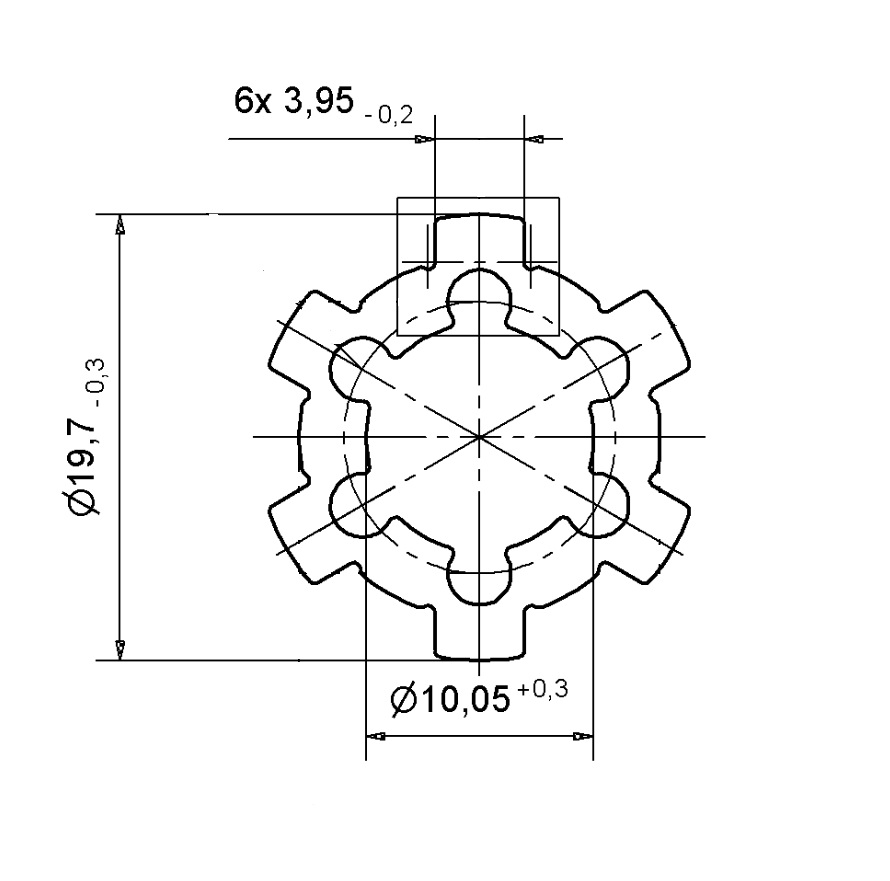

Technical data

Outer diameter: 19,7mm (- 0,3)
Inner diameter: 10,05 mm (+0,3)
Execution: Wedge scar wave5463-6x16x20
Length: 1000mm (+/- 1mm)
Material: Aluminium tube EN AW6063 66
Surface: Eloxal EV1 natur 10-15 µm
