Square profile rod free-cutting steel
| Quantity | Unit price |
|---|---|
| To 4 |
€11.12*
|
| To 9 |
€10.70*
|
| To 19 |
€10.29*
|
| From 20 |
€9.88*
|
Available, delivery time: 1-3 days
Product information "Square profile rod free-cutting steel"
Properties
Our high-quality square bars made of free-machining steel are available in 10 different variants with cross-sections ranging from 6 mm to 14 mm. Each bar has a length of 1000 mm and is made from the proven material 9SMnPb28/36K. The bright, cold-drawn surface ensures excellent dimensional accuracy and allows for direct further processing with outstanding results.
- 10 variants available – square profiles from 6 mm to 14 mm
- Material: Free-machining steel 9SMnPb28/36K – excellent machinability
- Surface: bright (cold drawn) – high dimensional precision & good surface finish
- Length: 1000 mm ±1 mm – ideal for manufacturing and cutting

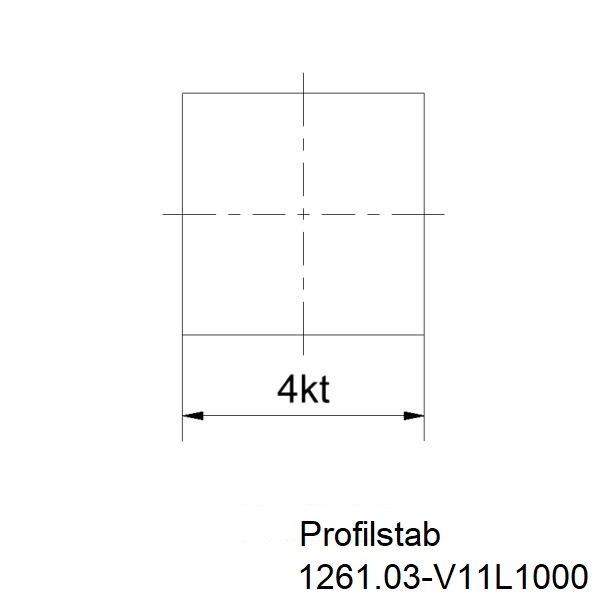

The following square bar variants (4kt) are available:
- 4kt6 – 6 mm square bar Art. No. 1261.03-V11L1000*
- 4kt8 – 8 mm square bar Art. No. 1261.03-V12L100*
- 4kt10 – 10 mm square bar Art. No. 1261.03-V13L1000
- 4kt13 – 13 mm square bar Art. No. 1261.03-V14L1000*
- 4kt14 – 14 mm square bar Art. No. 1261.03-V15L1000*
| Technical Specifications | Details |
| Type | Square (4kt) |
| Length | 1000 mm ±1 mm |
| Material | Free-machining steel 9SMnPb28/36K |
| Surface | Bright (cold drawn) |
*This product contains lead (Pb) as an alloying element in the material in a concentration of up to 4%.
Application
These square bars made of free-machining steel are ideal for applications that require excellent machinability, precise processing, and a clean surface finish. The material 9SMnPb28/36K is known for its outstanding turning properties and is particularly well-suited for use on CNC machining centers, conventional lathes, and milling machines. Thanks to their bright-drawn surface, the bars can be processed directly or used as visible components.
Typical areas of application include:
Mechanical and fixture construction
Turned and milled parts
Automation technology
Precision engineering
Model and prototype construction
