Steel l 10mm bore on both sides l Ø 16mm universal joint
| Quantity | Unit price |
|---|---|
| To 4 |
€14.30*
|
| To 9 |
€13.77*
|
| To 19 |
€13.24*
|
| From 20 |
€12.71*
|
Available, delivery time: 1-3 days
Product information "Steel l 10mm bore on both sides l Ø 16mm universal joint "

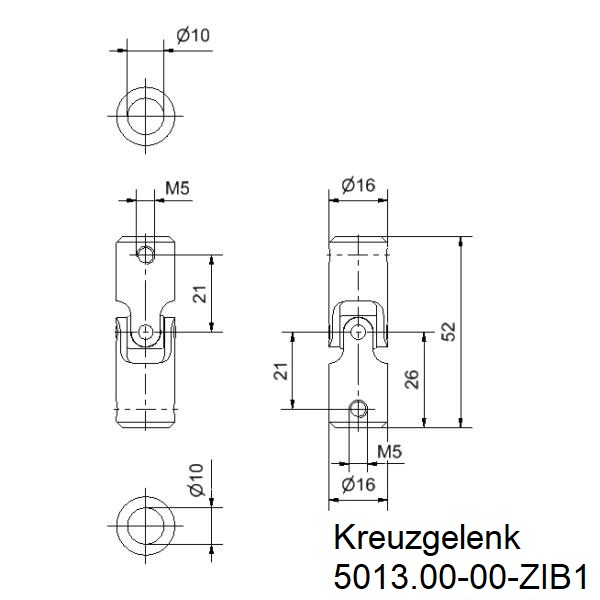

10mm hole on both sides l outer diameter 16mm l length 52mm l steel, surface galvanised
Properties
Our universal joints are offered in various designs and dimensions. The present universal joint variant has a bore on both sides with a diameter of 10mm. The universal joints are made of steel. Their surface is galvanized. The joint serves as a connecting element. It is suitable for connecting two aligned shafts with each other.
Features
Design: 10mm bore on both sides
material: steel, surface galvanized
max. torque in Nm: 3 Nm
max. angle of inclination: 40
outer diameter: 16 mm
length: 52 mm
mounting thread for screws: M5 (screws included in delivery)
Application
The universal joints are designed for a maximum angle of inclination of 40°. They can be used in any application where torque or rotary motion must be transmitted from non-linearly aligned shafts. Applications are for example in mechanical engineering, in the hobby sector or in model making.
