Steel l 4mm hole on both sides l Ø 13 mm
| Quantity | Unit price |
|---|---|
| To 4 |
€11.95*
|
| To 9 |
€11.50*
|
| To 19 |
€11.06*
|
| From 20 |
€10.61*
|
Available, delivery time: 1-3 days

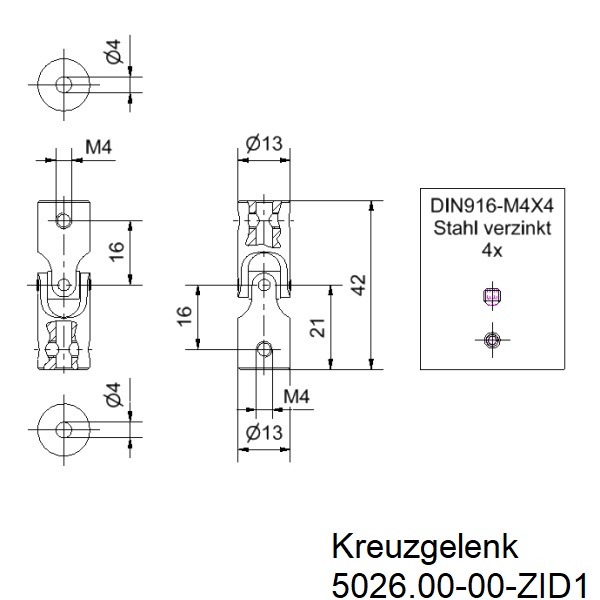

4mm bore l outer diameter 13mm l length 42mm l steel, surface galvanised
Properties universal joint l bore on both sides
Universal joints can be used as connecting elements. The joint is used to connect two aligned shafts with each other and is available in different dimensions in the store. The present product variant is characterized by a 4mm bore on both sides. The universal joint is made of steel and the surface is galvanized.
Features universal joint l double sided hole
Design: 4 mm hole on both sides
material: steel, surface galvanized
max. torque in Nm: 2 Nm
max. angle of inclination: 40
outer diameter: 13 mm
length: 42 mm
mounting thread for screws: M4 (screws included in delivery)
Application universal joint l bore on both sides
The universal joints are designed for a maximum angle of inclination of 40°. They can be used in any application where torque or rotary motion must be transmitted from non-linearly aligned shafts. Applications can be found for example in mechanical engineering, in the hobby sector or in model making.
