Steel l 6mm hole on both sides l Ø 13mm
Compact shaft connector rated for 2 Nm torque, up to 40° misalignment – zinc-coated steel ensures corrosion resistance.
| Quantity | Unit price |
|---|---|
| To 4 |
€11.28*
|
| To 9 |
€10.85*
|
| To 19 |
€10.44*
|
| From 20 |
€10.02*
|
Available, delivery time: 1-3 days
Stock:
26
Product number:
5047.00-0001
Weight:
0.03 kg
Description
Product information "Steel l 6mm hole on both sides l Ø 13mm "

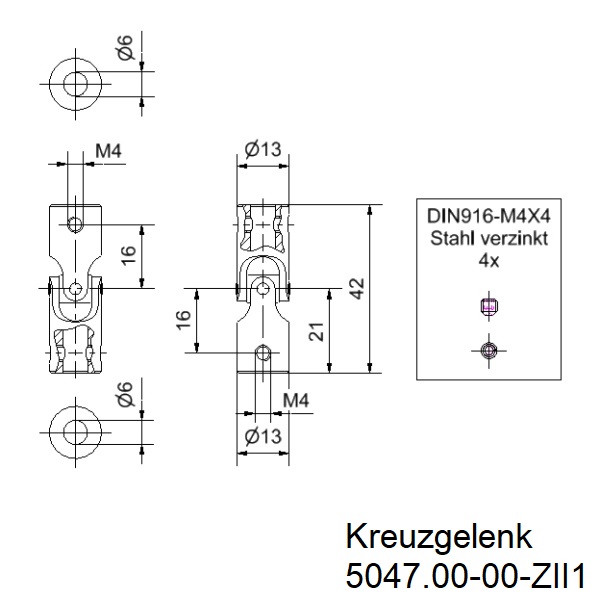

High-quality universal joint with 6 mm hole | Outer diameter 13 mm | Length 42 mm | Steel, zinc-plated for increased corrosion resistance | Screws included for immediate installation
Features of the Universal Joint
- The universal joint acts as a reliable connecting element between two aligned shafts.
- 6 mm holes on both sides allow secure mounting.
- Made of durable steel with a zinc-plated surface for long-lasting performance.
- Maximum torque: 2 Nm
- Maximum angular displacement: 40°
- Outer diameter: 13 mm
- Length: 42 mm
- Fastening thread: M4 (screws included)
Applications
This universal joint is ideal for transmitting torque and rotational movements between non-aligned shafts. It is used in mechanical engineering, model building, and hobby projects, offering a flexible and reliable solution for both industrial and private applications.
