Steel l 8 mm hole on both sides l Ø 16mm
Hardened coupler rated for 3 Nm, accommodates angular misalignment up to 40° – suited for tight assemblies in motion-driven mechanisms.
| Quantity | Unit price |
|---|---|
| To 4 |
€8.58*
|
| To 9 |
€8.26*
|
| To 19 |
€7.95*
|
| From 20 |
€7.62*
|
Available, delivery time: 1-3 days
Stock:
16
Product number:
5003.00-0001
Weight:
0.05 kg
Description
Product information "Steel l 8 mm hole on both sides l Ø 16mm "
Durable universal joint made of zinc-plated steel with Ø 8 mm double bore and Ø 16 mm outer diameter – ideal for reliable coupling of aligned shafts in compact mechanical assemblies.

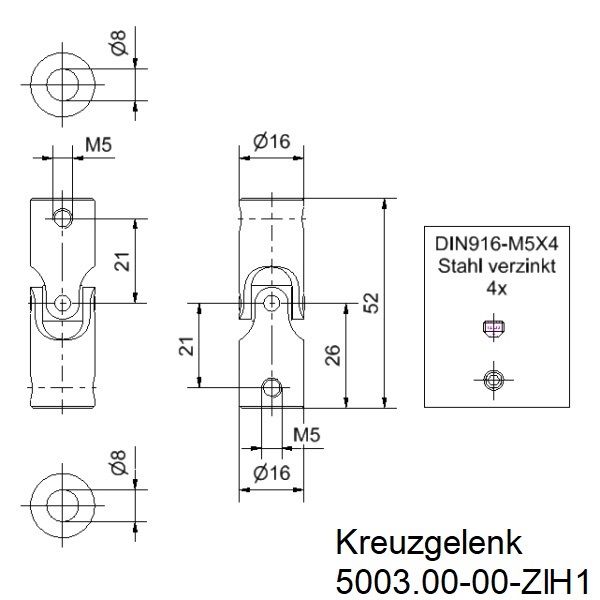

Features of the Universal Joint
- Double bore: Ø 8 mm
- Outer diameter: 16 mm
- Length: 52 mm
- Material: Steel, zinc-plated surface
- Maximum torque: 3 Nm
- Maximum deflection angle: 40°
- Mounting thread: M5 (screws included)
Applications
This steel universal joint is designed for transmitting rotational motion and torque between shafts that are not perfectly aligned. It is widely used in mechanical engineering, model construction, and industrial applications. Its solid steel construction and zinc-plated surface provide excellent load capacity, corrosion resistance, and long service life.
