Steel l 8mm bore on both sides l Ø 13mm universal joint

Galvanized steel universal joints with 8mm double-sided bore, ideal for connecting aligned shafts.
Quantity Unit price
To 4
€13.53*
To 9
€13.03*
To 19
€12.53*
From 20
€12.02*

Available, delivery time: 1-3 days

Stock: 19
Product number: 5099.00-0001
Weight: 0.02 kg
Product information "Steel l 8mm bore on both sides l Ø 13mm universal joint"

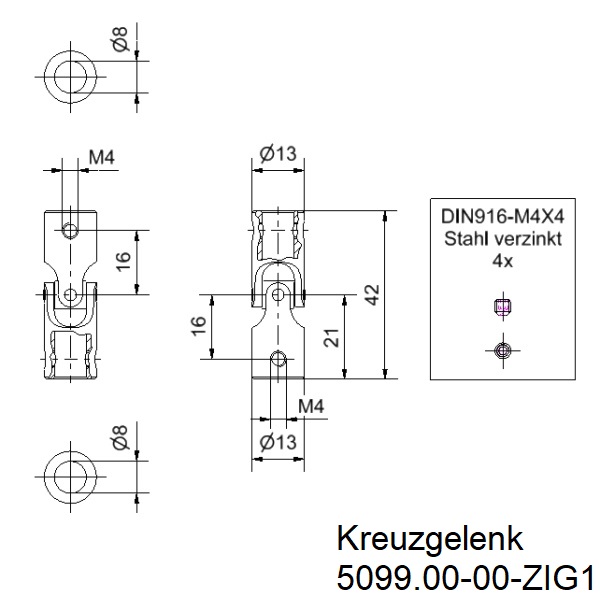

8mm bore l outer diameter 13mm l length 42mm l steel, surface galvanised

Properties

Universal joints can be used as connecting elements. The joint is used to connect two aligned shafts with each other and is available in different dimensions in the store. The present product variant is characterized by a bore on both sides of 8mm. The universal joint is made of steel and the surface is galvanized.

Features

Design: 8 mm hole on both sides
material: steel, surface galvanized
max. torque in Nm: 2 Nm
max. angle of inclination: 40
outer diameter: 13 mm
length: 42 mm
mounting thread for screws: M4 (screws included in delivery)



Application


The universal joints are designed for a maximum angle of inclination of 40°. They can be used in any application where torque or rotary motion must be transmitted from non-linearly aligned shafts. Applications can be found for example in mechanical engineering, in the hobby sector or in model making.
