TR 10 Trapezoidal threaded spindle steel
Product information "TR 10 Trapezoidal threaded spindle steel"
Trapezoidal Thread Spindle TR10 – Steel, Rolled, 1000 mm Length according to DIN 103
Features
The Trapezoidal Thread Spindle TR10 is a precise and durable spindle made of steel, manufactured in accordance with DIN 103. With a thread diameter of 10 mm, it is ideal for applications that require the conversion of rotational to linear motion and the transmission of high axial loads. Thanks to the rolled manufacturing process, the spindle offers a continuous fiber structure, high strength, and excellent surface quality. Available in five variants – with right- or left-hand threads and single- to five-start threads – providing maximum flexibility for a wide range of applications.
- Manufactured according to DIN 103 – standardized & precise fit
- Rolled thread – high strength & long service life
- Right- and left-hand threads available
- Single- to five-start versions available
- High load capacity due to trapezoidal thread profile
- Compatible with matching trapezoidal thread nuts (round, flange, or square) made of POM or brass
Technical Specifications
| Standard: | DIN 103 (TR / SG 10) |
| Thread diameter: | 10 mm |
| Thread pitches: | 2 mm / 3 mm / 6 mm P3 / 10 mm P2 |
| Design: | single-start to five-start |
| Manufacturing process: | rolled (not cut) |
| Material: | Steel (C15K / 11SMnPb30+C+TE) |

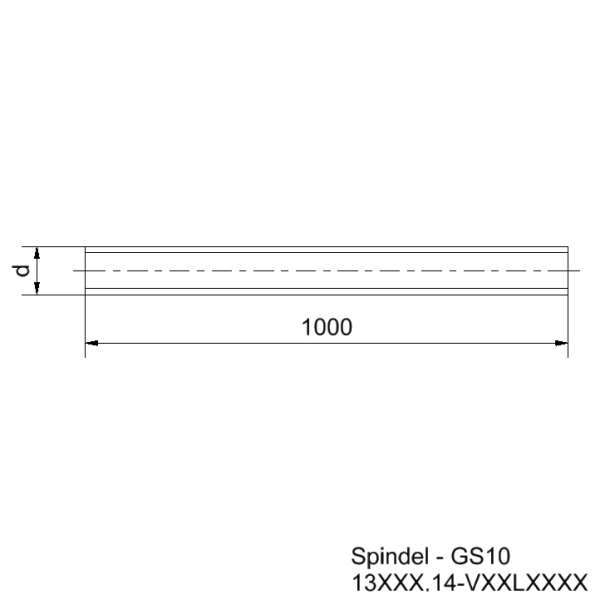

| Length: | 1000 mm |
| Thread direction: | Available with right- and left-hand threads |
| End finish: | sawn, not deburred |
Available Variants
- TR 10×2 Item No.: 13014.14-V01L1000, Thread pitch 2 mm, single-start – right-hand thread
- TR 10×3 Item No.: 13010.14-V00L1000, Thread pitch 3 mm, single-start – right-hand thread
- TR 10×3 Item No.: 13011.14-V00L1000, Thread pitch 3 mm, single-start – left-hand thread
- TR 10×6 P3 Item No.: 13012.14-V00L1000, Thread pitch 6 mm P3, double-start – right-hand thread
- SG 10×10 P2 Item No.: 13030.14-V00L1000, Thread pitch 10 mm P2, five-start – right-hand thread
Applications
The TR10 trapezoidal thread spindles are designed to transmit high axial forces and to convert rotational motion into linear motion. They are primarily used in:
- Mechanical and fixture construction
- Drive and positioning units
- Travel and positioning systems
- Clamping and fastening applications
With their high load capacity, low friction, and precise thread geometry, TR10 spindles are a reliable solution for a wide range of industrial applications. When combined with matching trapezoidal thread nuts made of POM or brass, they provide a durable and efficient drive solution.
