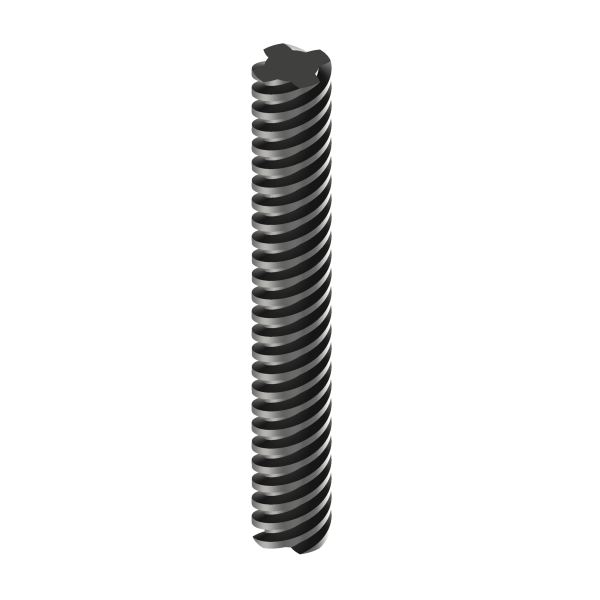

TR 20 Trapezoidal threaded spindle stainless steel
Edelstahl-Trapezgewindespindeln SG 20 (20mm, DIN 380) für starke Traglasten, mit hoher Festigkeit und Langlebigkeit. Vielseitige Anwendungen.
Stock:
17
Product number:
13305.14-V02L1000
Weight:
2.1 kg
Product information "TR 20 Trapezoidal threaded spindle stainless steel"
SG20 l right-hand thread l single thread l stainless steel (1.4104) rolled l length 1000mm l DIN 103 l uninterrupted fibre course
Characteristics
Our SG 20 trapezoidal threaded spindles in stainless steel have a special thread which has been adapted to the DIN 380 standard. The thread spindles with a diameter of 20mm vary in their thread pitch:
- SG 20x3 (thread pitch 3mm right-hand thread).
Both versions are available with a length of 1 meter and are characterized by a multi-start right-hand thread, which withstands applications under high loads. The trapezoidal leadscrews are capable of transmitting large axial forces. They are manufactured by the rolled process. Within this, the spindle is given an uninterrupted grain. The homogeneous material structure can thus justify a high strength. In addition, properties such as a high surface quality, backlash-free adjustment and readjustment, low friction and the longevity of the trapezoidal thread spindle can be attributed. In order to use the spindle as an optimal drive solution, we offer you a selection of suitable trapezoidal leadscrew nuts in our store.

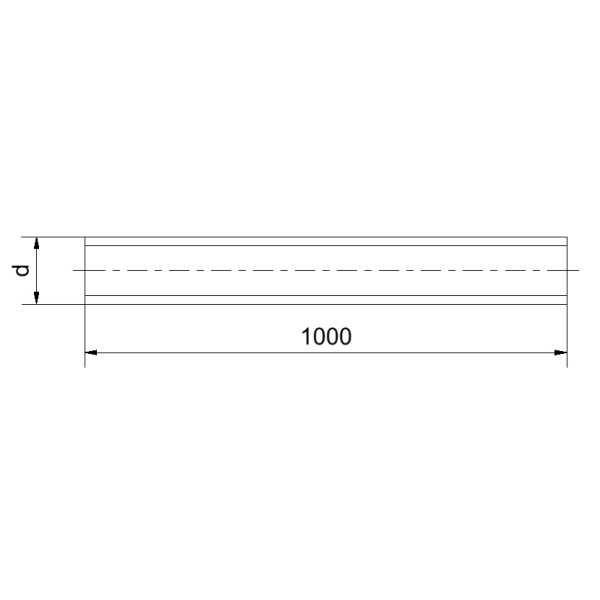

| 13305.14-V02L1000 | |
| Thread | SG 20x3 rolled Right-hand thread |
| Material | Stainless steel |
| Length | 1000mm |
| Matching nut | Round nut Flange nut |
Application
The trapezoidal lead screws are used for driving and transmitting axial forces. The application is primarily concerned with the conversion of rotating into linear movements. In addition to mechanical engineering, fastening and clamping applications benefit from the advantages of the spindle. Further fields of application can be found as drive and positioning unit or as part of traverse paths and positioning. You will find further versions of our trapezoidal lead screws in our range of products and services. Furthermore, we recommend to have a look at our range of trapezoidal leadscrew nuts.
The trapezoidal lead screws are used for driving and transmitting axial forces. The application is primarily concerned with the conversion of rotating into linear movements. In addition to mechanical engineering, fastening and clamping applications benefit from the advantages of the spindle. Further fields of application can be found as drive and positioning unit or as part of traverse paths and positioning. You will find further versions of our trapezoidal lead screws in our range of products and services. Furthermore, we recommend to have a look at our range of trapezoidal leadscrew nuts.
