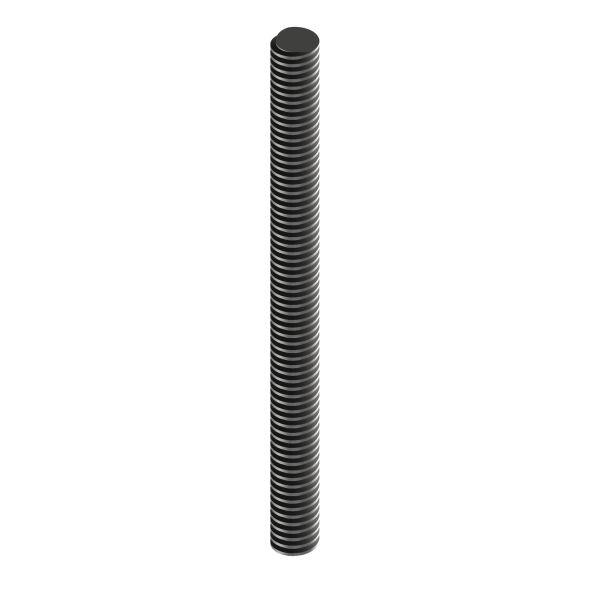

TR 8 Trapezoidal threaded spindle stainless steel
Product information "TR 8 Trapezoidal threaded spindle stainless steel"
TR8 l 2 versions to choose from l right and left hand thread l single thread l stainless steel ( 1.4104 ) rolled l length 1000mm l DIN 103
Properties
Analogous to our steel versions, we offer our trapezoidal thread spindles in stainless steel. The diameter of our TR 8x1,5 version is 8mm. The spindles are available in 1-meter lengths. The thread is single-start and right-handed. Due to its trapezoidal profile, the threaded rod is able to transmit high axial forces. Due to the rolled manufacturing process, the spindle becomes a homogeneous material structure with an uninterrupted fiber flow. A wear-resistant surface, the associated durability and high strength indicate the quality of the trapezoidal threaded spindles. In addition to the spindle as such, we offer matching trapezoidal lead screw nuts for an optimal drive solution in various application areas.
| 13017.14-V02L1000 | 13017.14-V02L1000 | |
| Thread |
TR 8x1,5 catchy |
TR 8x1,5 rolled Right-hand thread catchy |

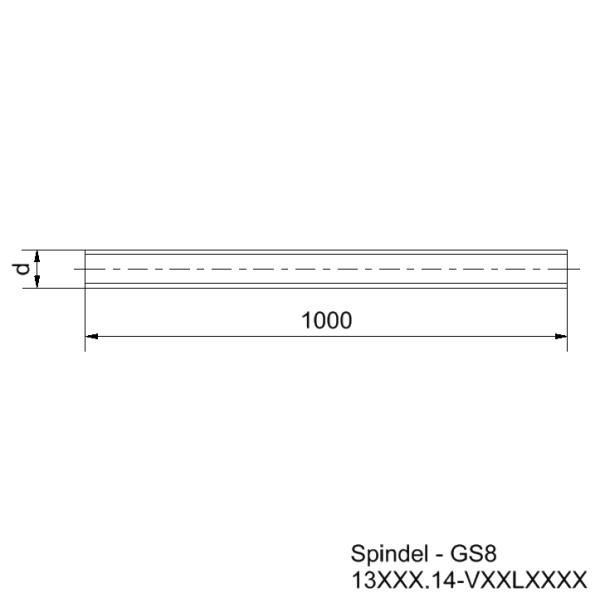

| Length | 1000mm | 1000mm |
| Material | Stainless steel (1.4104) | Stainless steel (1.4104) |
| mutching nut | Round nut in POM | Round nut in POM |
