Universally applicable lifting unit with bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fields. A simple screw fastening and a hexagonal bolt enable a simple system structure and an uncomplicated assembly. Special features Maintenance-free Ratio 1:1 and 1:2 Drive torque on gear head for application with several spindle units: max. 5.5 Nm Housing made of glass fiber reinforced plastic Hardened steel bevel wheels with robust, reinforced toothing Suitable for manual use as well as for the electromotive drive Ideal for the high performance drive 3143.00 Variant key 3045.00-V01: spindle SG14x16P4 RH and i= 1:1             V02: spindle Tr14x3 RH and i= 1:1             V03: spindle Tr14x3 RH and i= 1:2 Technical note The lifting units must be protected against lateral forces by a separate guide system. Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable. Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions Baureihe 3045.00-V01EXXXHXXX 3045.00-V02EXXXHXXX 3045.00-V03EXXXHXXX Ratio 1:1 1:1 1:2 Input hex 7mm hex 7mm hex 7mm Type of spindle SG14x16P4 RH Tr14x3 RH Tr14x3 RH Travel path 16 mm/rotation 3 mm/rotation 6 mm/rotation Traverse speed* 32 mm/s 6 mm/s 12 mm/s Max. stroke retracted lenght -110 mm retracted length -110 mm retracted length -110 mm Max. lifting force 1200 N 1200 N 1200 N Required drive torque 4,5 Nm 1,7 Nm 3,5 Nm * In conjunction with 3143.00-200X motor drive and LogicData Compact-3 controller Application bevel gear unit with spindle unit Universal lifting unit with bevel gear head for linear drive solutions. Possible applications include height-adjustable tables, various adjustment functions for furniture items and any type of linear adjustment in the residential, mobile home or industrial sector.

Lifting force 1200 N l Spindle type SG12x16P4 right or TR14x3 right / left l 4 versions to choose from l Transmission 1:1 or 1.5:1 Bevel gearbox with spindle unit 3035 / 3036 Our universally applicable bevel gearboxes with spindle unit 3035 /3036 are offered with trapezoidal thread spindles according to standard (TR) as well as in special design (SG). You can also choose between a round (Ø 20) and a square support tube (□ 22) as well as different stroke variants. Special features Bevel gearbox with spindle unit Maintenance-free Slim size 35 mm x 35 mm Drive torque at gear head, depending on spindle pitch: Max. 4 Nm Housing made of zinc and glass-fibre reinforced plastic Hardened steel bevel gears with robust, reinforced teeth Support tube round Ø 20 mm or square 22 mm Technical note Bevel gearboxes with spindle unit The lifting units must be protected against the effects of lateral forces by a separate guide system. Attention: The spindle systems with the spindle pitch > 3mm may no longer be self-locking. Self-locking must be checked in the application. The lifting unit can only be loaded under pressure Incorrect dimensioning of the guide system can lead to damage to the lifting unit: Please observe the design and safety instructions for screw drives.These can be found at: https:// www.ketterer.de/en/downloads/instructions Baureihe  3035.00-V01E580H200 3035.00-V02E580H200 3036.00-V02E580H500 3034.00-V03EXXXHXXX Translation 1,5:1 1,5:1 1:1 1:1 Drive 6ktSW6 6ktSW6 6ktSW6 6ktSW6 Spindle type TR14x3 clockwise TR14x3 counterclockwise TR14x3  clockwise TR14x3 clockwise Travel 2 mm/U 2 mm/U 3 mm/U 16 mm/U Traversing speed* 4 mm/s 4 mm/s 6 mm/s 32 mm/s Support tube 4kt 22 mm 4kt 22 mm 4kt 22 mm rund Ø 20 mm Max. Stroke Installation dimension - 100 mm Installation dimension - 100 mm Installation dimension - 100 mm Installation dimension - 80 mm Max. Lifting force 1200 N 1200 N 700 N 700 N Required drive torque 1 Nm 1 Nm 1,3 Nm 3,2 Nm * In combination with LogicData control box Compact-3 Application bevel gear unit with spindle unit Universal lifting unit with bevel gear head for linear drive solutions.  Possible applications are height-adjustable tables, various adjustment functions for furniture items as well as any kind of linear adjustment in the residential, mobile home or industrial sector. A simple screw mounting and a continuous hexagon enable a simple system design and uncomplicated assembly.

Universally applicable lifting unit with bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fields. A simple screw fastening and a hexagonal bolt enable a simple system structure and an uncomplicated assembly. Special features Maintenance-free Very slim size 25.8 mm x 25.8 mm Drive torque on gear head for application with several spindle units: max. 3.5 Nm Housing made of glass fiber reinforced plastic Hardened steel bevel wheels with robust, reinforced toothing Support tube round Ø 20 mm or square 22 mm Suitable for manual use as well as for the electromotive drive Variant key 3034.00-V01: spindle SG12x16P4 RH with a round support tube 3034.00-V02: spindle SG12x16P4 RH with a square support tube 3034.00-V03: spindle Tr14x3 RH with a square support tube Technical note The lifting units must be protected against lateral forces by a separate guide system. Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable. Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https:// www.ketterer.de/en/downloads/instructions Installation instructions: use at least 2 M4 screws when fastening. Using bore holes ø 4.1 mm (2x) when doing so, preferable the lifting unit should be supported above on the top side. Connection by means of additional mounting holes ø 3.6 mm for M4 and ø 4.6 for M5 requires top side support Model  3034.00-V01EXXXHXXX  3034.00-V02EXXXHXXX  3034.00-V03EXXXHXXX Ratio 1:1 1:1 1:1 Input hex 6mm hex 6mm hex 6mm Type of spindle SG12x16P4 RH SG12x16P4 RH TR14x3 RH Travel path 16 mm/rotation 16 mm/rotation 3 mm/rotation Traverse speed* 32 mm/s 32 mm/s 6 mm/s Support tube round Ø 20 mm square 22 mm square 22 mm Max. stroke retracted length - 90 mm retracted length - 100 mm retracted length - 100 mm Max. lifting force 700 N 700 N 700 N Required drive torque 3,2 Nm 3,2 Nm 1 Nm * In combination with LogicData control box Compact-3 Application bevel gear unit with spindle unit Universal lifting unit with bevel gear head for linear drive solutions.  Possible applications are height-adjustable tables, various adjustment functions for furniture items as well as any kind of linear adjustment in the residential, mobile home or industrial sector. A simple screw mounting and a continuous hexagon enable a simple system design and uncomplicated assembly.

Universally applicable lifting unit with bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential and office fields. Simple screw fastenings enable a simple system structure and an uncomplicated assembly. Special features Maintenance-free Ratio in direction of spindle 1.3:1 Drive torque on gear head for application with several spindle units: max. 3 Nm Housing made of glass fiber reinforced plastic Hardened steel bevel wheels with robust, reinforced toothing Designed for the manual operation Variable number of bevel gears for deflection of movement and freely selectable drive position Variant key 3010: variants with right rotating spindles 3011: variants with left rotating spindles Technical notes The lifting units must be protected against lateral forces by a separate guide system. Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable. If several lifting units are being used simultaneously in the application, note the max. drive torque on gear head of 3 Nm! Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions  Model 3010 3011 Ratio in direction of spindle 1,3:1 1,3:1 Ratio in direction of deflection 1:1 1:1 Input hex 6mm hex 6mm Number of bevel wheels 3 3 Type of spindle TR14x3 RH TR14x3 LH Travel path 2,3 mm/rotation 2,3 mm/rotation Max. stroke retracted length -99 mm retracted length -99 mm Max. lifting force 1200 N 1200 N Required drive torque 1,7 Nm 1,7 Nm Max. drive torque gear head for several spindle units* 3 Nm 3 Nm  *See technical notesApplication bevel gearbox unit with spindle unit Universal lifting unit with bevel gear head for linear drive solutions.  Possible applications are height-adjustable tables, various adjustment functions for furniture items as well as any kind of linear adjustment in living and office areas. Simple screw fastenings allow easy system assembly and uncomplicated installation.

Special features Maintenance-free Ratio 1:1 Drive torque on gear head depending onspindle pitch: max. 4 Nm Housing made of glass fiber reinforcedplastic Hardened steel bevel wheels with robust,reinforced toothing Suitable for manual use as well as for theelectromotive drive Technical notes The lifting units must be protected againstlateral forces by a separate guide system. Attention: The spindle systems with aspindle pitch > 3mm may not be self-locking. Check the self-locking effectin the application. The lifting unit is only pressure loadable. Incorrect dimensioning of the guide systemcan damage the lifting unit: Please note the design and safety instructions forspindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions Installation instructions: use at least 2M4 screws when fastening. Using bore holes ø 4.1 mm (2x) when doing so,preferable the lifting unit should be supported above on the top side.  Model 3039.00-V01EXXXHXXX 3039.00-V02EXXXHXXX Ratio 1:1 1:1 Input hex 6mm hex 6mm Type of spindle Tr14x3 RH SG14x16P4 RH Travel path 3 mm/rotation 16 mm/rotation Traverse speed* 7,5 mm/s 40 mm/s Max. stroke retracted length -99 mm retracted length -99 mm Max. lifting force 1200 N 800 N Required drive torque 1,7 Nm 3,5 Nm  *in conjunction with actuator 3130.00 and LogicData control unit Compact- Application bevel gear unit with spindle unit Universal lifting unit with bevel gear head for linear drive solutions.  Possible applications include height-adjustable tables, various adjustment functions for furniture items, and any type of linear adjustment in residential, mobile home or industrial applications. Simple screw fastenings and a continuous hexagon allow for an easy system design and uncomplicated assembly.

Universally applicable lifting unit with bevel gearbox head for linear drive solutions. Possible applications are various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fields. Particularly appropriate as a component for “heavy load solutions” for office furniture and workplace applications. The designs with up to four drive wheels offer broad application opportunities for the lifting unit and high flexibility in system design. Special features Maintenance-free Ratio in direction of spindle 1.83:1 Housing made of zinc die-casting Hardened steel bevel wheels with robust, reinforced toothing Drive torque on gear head for application with several spindle units: max. 10 Nm Suitable for electromotive drives High flexibility through variable number of drive wheels for deflection of movement Available in different spindle pitches and with customer specific construction lengths Variant key 3070: variants with right rotating spindles3071: variants with left rotating spindles Technical notes The lifting units must be protected against lateral forces by a separate guide system. Attention: The spindle systems with a spindle pitch > 3 mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable. If several lifting units are being used simultaneously in the application, note the max. drive torque on gear head of 10 Nm! Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions Model 3070 3071 Ratio in direction of spindle 1.83:1 1.83:1 Input hex 7 mm hex 7 mm Number of Inputs max. 5 max. 5 Type of spindle SG12x12P4 RH clockwise SG12x12P4 RH counter-clockwise Travel path 6.6 mm/rotation 6.6 mm/rotation Traverse speed* 13 mm/s 13 mm/s Max. stroke retracted length -105 retracted length -105 Max. lifting force 1200 N 1200 N Required drive torque 2 Nm 2 Nm Max. drive torque gear head for several spindle units 10 Nm 10 Nm * in conjunction with motor drive 3143.00-200X and LogicData control Compact- Application bevel gear unit with spindle unit Universal lifting unit with bevel gear head for linear drive solutions. As adjustment function for furniture objects or for any kind of linear adjustment in residential, mobile home or industrial applications. Particularly suitable as a component for "heavy duty" solutions in office furniture and workstation applications. The versions offer many possible uses for the lifting unit as well as high flexibility in system design.

Properties Bevel gearbox with spindle unit and retaining plate and retaining ring Universally applicable lifting unit with bevel gearbox headfor linear drive solutions. Possible applications are height adjustable tables,various adjustment functions for furniture items as well as all manner oflinear adjustment in residential, mobile home or industrial fields. A simplescrew fastening and a hexagonal bolt enable a simple system structure and anuncomplicated assembly. Special features   Maintenance-free Ratio 1:1 Support tube made of steel with retaining plate and retaining ring on top Drive torque on gear head depending onspindle pitch: max. 4 Nm Housing made of glass fiber reinforcedplastic Hardened steel bevel wheels with robust,reinforced toothing Suitable for manual use as well as for theelectromotive drive   Technical notes   The lifting units must be protected againstlateral forces by a separate guide system. Attention: The spindle systems with aspindle pitch > 3mm may not be self-locking. Check the self-locking effectin the application. The lifting unit is only pressure loadable. Incorrect dimensioning of the guide systemcan damage the lifting unit: Please note the design and safety instructions forspindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions Installation instructions: use at least 2M4 screws when fastening. Using bore holes ø 4.1 mm (2x) when doing so,preferable the lifting unit should be supported above on the top side.      Model 3039.00-0044 Ratio 1:1 Input hex 6mm Type of spindle SG14x16P4 RH Travel path 16 mm/rotation Traverse speed* 40 mm/s Max. stroke 500 mm Max. lifting force 800 N Required drive torque 3,5 Nm   Application Bevel gearbox with spindle unit and retaining plate and retaining ring Universally applicable lifting unit with bevel gearbox head for linear drive solutions. Possible applications are height-adjustable tables, various adjustment functions for furniture items and any kind of linear adjustment in the residential, mobile home or industrial sector. Simple screw fastenings and a continuous hexagon enable a simple system structure and uncomplicated assembly.

Stroke 656mm l Gear ratio 1:1 or 1:2 l Travel 20mm/rev, 40mm/rev and 80mm/rev l Drive hexagon SW 6 or SW 7 l Installation dimension 485mm Features bevel gearbox with synchronised telescopic spindle Double telescopic lifting unit with bevel gear head for various linear drive solutions. The synchronised telescopic design guarantees double speed. The lifting units are available with either the 3039 or 3045 gear head. Both bevel gearboxes are also available individually in our shop. Special features Bevel gearbox with synchronised telescopic spindle Maximum stroke with minimum installation dimension With gear head 3039 or 3045 (included in delivery) Gear ratio 1:1 or 1:2 Max. Max. drive torque at gear head: 4 Nm or 5.5 Nm Hardened steel bevel gears with robust, reinforced teeth Ideally suited for an electric motor drive Technical information Bevel gearbox with synchronised telescopic spindle The lifting units must be protected against the effects of lateral forces by a separate guide system. Spindle type SG20x10P2 RH and SG10x10P2 RH Travel 20/40/80 mm/revolution, synchronised spindle movement Installation dimension E: 485 mm Stroke: 656 mm Required drive torque: 3.5 Nm Attention: Spindle systems with a spindle pitch > 3 mm may no longer be self-locking. Self-locking must be checked in the application. The lifting unit is only tested for pressure. Incorrect dimensioning of the guide system can lead to damage to the lifting unit: Please observe the design and safety instructions for spindle drives. These can be found at: https://www.ketterer.de/downloads/anleitungen Series 4115.00-V01E485M420 4115.00-V11E485M420 4115.00-V04E485M420 4115.00-V14E485M420 4115.00-V03E485M420 Gear head 3045 3045 3045 3045 3045 Translation i 1:1 1:1 1:1 1:1 1:2 Drive 6ktSW7 6ktSW7 6ktSW6 6ktSW6 6ktSW7 Max. Drive torque per gearbox 5,5 Nm 5,5 Nm 5,5 Nm 5,5 Nm 5,5 Nm Max. Load 90 kg 50 kg 90 Kg 50 kg 40 kg Required drive torque  4,5 Nm 5,5 Nm 4,5 Nm 5,5 Nm 4,5 Nm Traverse path / revolution (synchronous spindle movement) 20 mm/U 40 mm/U 20 mm/U 40 mm/U 40 mm/U Spindle type SG20x10P2 SG10x10P2  SG20x20P2 SG10x20P2  SG20x10P2 SG10x10P2  SG20x20P2 SG10x20P2  SG20x10P2 SG10x10P2  Series 4115.00-V13E485M420 4115.00-V05E485M420 4115.00-V15E485M420 4115.00-V02E485M420 4115.00-V12E485M420 Gear head 3045 3045 3045 3039 3039 Translation i 1:2 1:2 1:2 1:1 1:1 Drive 6ktSW7 6ktSW6 6ktSW6 6ktSW6 6ktSW6 Max. Drive torque per gearbox 5,5 Nm 5,5 Nm 5,5 Nm 4 Nm 4 Nm Max. Load 25 kg 40 kg 25 Kg 80 kg 40 kg Required drive torque  5,5 Nm 4,5 Nm 5,5 Nm 4 Nm 4 Nm Traverse path / revolution (synchronous spindle movement) 80 mm/U 40 mm/U 80 mm/U 20 mm/U 40 mm/U Spindle type SG20x20P2 SG10x20P2  SG20x10P2 SG10x10P2  SG20x20P2 SG10x20P2 SG20x10P2 SG10x10P2  SG20x20P2 SG10x20P2     Application Bevel gearbox with synchronised telescopic spindle The bevel gearbox with synchronised telescopic spindle is ideal for electric motorised sit/stand workstation applications or wherever stepless linear adjustment with a high speed, maximum stroke and minimum installation dimensions is required.

Nominal speed 120rpm l Static pressure load 10,000N l Static tensile load 10,000 N l Maintenance-free l 2 versions selectable Electromotive screen drive - set Electrified drive system consisting of motor, control, spindle and spindle nut. The drive is designed for high tensile and compressive forces. The self-locking system design ensures safe operation. In addition to the drive system, a 1-channel remote control is also included in the set.   Technical data Series 3062 Voltage 230V~/50Hz Current 1,0 A Inrush current (factor) X 1,2 Power motor 220 W Rated torque 5 Nm / Peak torque 7 Nm (kurzzeitig) No-load speed 134 U/min Rated speed 120 U/min bei 5Nm Operating mode 2,5 min on, 45 min off Ambient temperature / humidity  Operation T=-10°C …. +60°C /H max. 90% Storage: T=-15°C….+70°C / dry non-condensing Operating temperature Motor  overheating protection with shutdown at approx. 110°C Protection class IP40 Max. short-time static pressure load 10.000 N Max short-time static tensile load 10.000 N Spindle type 25 x 4 Travel speed at nominal load 8 mm/s Scope of delivery The set includes: 1 x electromotive spindle drive, consisting of the motor incl. control unit 1 x 1-channel remote control 1 x spindle 25 x 4 / 1,5 m long 1 x spindle nut   1 x crank with safety spring for note locking (optional)   Technical notes After shutdown due to overheating min 15 min pause time is necessary

Motorized solution for the individual sit-stand workplace. Stepless height adjustment to customer specific stroke. The included cable can be ordered here as a spare part.Special featuresA sleek design allows the complete inline actuator to be integrated into the tube of a table leg.Simple mountingIntegrated position measuring systemSingle telescopic function Model3120.00-V02EXXXHXXXMotorDC Motor 24 VSensor/Power supplyHall/5 V DC/0,3 AProtection classIP30Duty cycle20% (at 5 Min.)Idle running speed100 rpm (24 V)150 rpm *Stroke max.retracted height -109 mmType of spindleSG14x16P4 RH Max. lifting force800 NMax. drive torque3 NmMovement speed43 mm/s* in combination with LogicData control box Compact-3

Lifting force 600Nm l Travelling speed 48 mm/s l Simple mounting l Installation space requirement 40x63 mm Features Inline spindle drive 3122 100-500mm stroke The electromotive solution for the sit/stand workstation. Infinitely variable height adjustment with customised lifting height. A very slim design enables the complete inline drive to be integrated into the table leg. Special features Inline spindle drive 100-500mm stroke Simple attachment Integrated position measuring system 1-fold telescopic Technical specifications Inline spindle drive 100-500mm stroke Series 3122.00-V01EXXXHXXX Motor DC Motor 24 V Sensor/Power supply Hall/5 V DC/0,3 A Protection class IP30 Duty cycle 20% (at 5 Min.) Idle running speed 180 rpm (24 V) 180 rpm * Stroke max. retracted height -171 mm Type of spindle SG12x16P4 RH ** Max. lifting force 600 N Max. drive torque 2,5 Nm Movement speed 48 mm/s * in conjunction with LogicData control unit Compact-3 ** other spindle types available on request Safety instructions: Depending on the spindle used, the self-locking of the system must be checked.

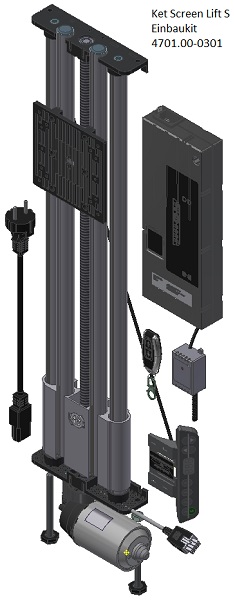

Height adjustment for screens up to 24" l Choice of 2 versions l Max load 250N l Travel speed 90mm/sCost-efficient, compact lifting system for screens up to 24” and weights up to 25 kg.Included in the set: Ket Screen Lift, hand switch, control Compact-3 (for mains voltage 230V), power cable, remote control, operating instructions and set screws.Special featuresHigh lifting speedSimple installation for different assembly situations Can be supplied with any stroke up to 750 mmVery low noise level allows applications in noise sensitive areasTechnical information4701.00-V03H0500     4701.00-V05H0600     Stroke500 mm 600 mm   Retracted length   Stroke + 219 mmStroke + 157 mmMaximum load250 N250 NMaximum screen size       24 inch24 inchMovement speed        90 mm/s90 mm/sSecurity noteBeim Einbau in ein Gehäuse ist auf die Vermeidung von Quetschstellen zu achten.

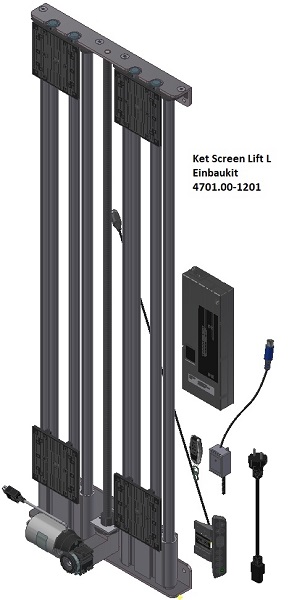

 Height adjustment for screens up to 50" and max 30kg l Max load 300N l Travel speed 90mm/s l Stroke 1000mm Also available for screens up to max. 70 kg on request. Features TV lift up to 30kg  Cost-effective, compact lift unit for screens up to 50" and weights up to 30 kg. The TV lifts or Ket screens are supplied as a set. Included in the set: Ket Screen Lift  Manual switch Control unit Compact-3 (for mains voltage 230V) Mains cable Radio remote control Operating instructions Adjusting screws Special features TV lift up to 30kg High travel speed easy assembly for a wide variety of installation situations  any stroke length, up to max. 1100 mm low noise level also allows use in noise-sensitive areas Technical specifications TV lift up to 30kg 4701.00-1201      Hub 1000 mm    Minimum installation dimension     Hub + 142 mm Maximum load 300 N Maximum screen load          50 Zoll Traversing speed           90 mm/s Technical information TV lift up to 30kg When installing in an enclosure, care must be taken to avoid pinch points.

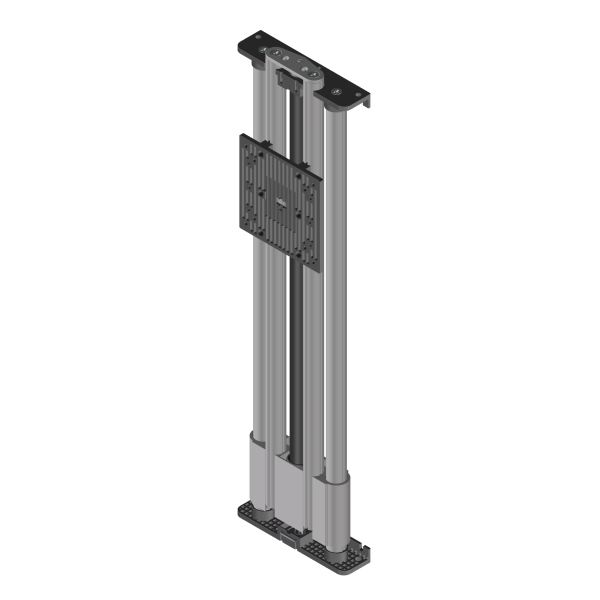

 Compact lifting system for flat screens. Lifted by a gas spring without motor drive.Special featuresSmooth stop of the unit trough a damped gas springVery small unit, suitable for tight spacesTechnical informationS 479Stroke479 mm    Min. mounting dimension    617 mmMax. load with vertical installation     80 NRecommended max. screen size          24 inch

Installation dimension 589 l Stroke 525 l Lifting force 900 N l Travel 20mm/rev l With and without motor mounting l Travel speed 40mm/s lUniversally applicable lifting unit with a bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fields.Special featuresIdeal for the drives: 3112.00/ 3133.00 / 3133.48 / 3130.00Available in customized spindle lengthsSimple mountingConnection to the drive hex 9 mmModel3130.14-V01EXXXHXXX 3130.14-V02EXXXHXXXType of spindleSG14x20P4 RHTravel path20 mm/rotationTraverse speed*40 mm/s*Max. strokeretracted length -64 mmMax. lifting force900 NRequired drive torque3,5 Nm * In combination with motor 3133 and LogicData control box Compact-3Technical notesThe lifting units must be protected against lateral forces by a separate guide system.Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable.Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions

2 Varianten zur Auswahl  l  Hub 720 mm  l  Hubkraft 900 N  l  Verfahrweg 40mm/s  l Maximaler Hub bei minimalem EinbaumaßTwofold telescopic lifting unit with bevel gear head for various linear drive solutions. Ideal for electromotive sit-stand workplace applications or wherever an infinite linear adjustment is required at a high speed, maximum stroke with a minimum installation dimension.Special featuresDouble speed through synchronous telescope designMaximum stroke with minimum installation dimensionIdeal for electromotive drivesTechnical notesThe lifting units must be protected against lateral forces by a separate guide system.Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application.The lifting unit is only pressure loadable.Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructionBaureihe4115.14-V01E500M4904115.14-V02E495M484Type of spindleSG20x10P2 RH SG10x10P2 RHSG20x10P2 RH SG10x10P2 RHTravel path20 mm/rotation synchronous spindle movement20 mm/rotation synchronous spindle movementTraverse speed*40 mm/s*40 mm/s*Retracted length E500 mm495 mmCentral tube connection M490 mm484 mmEnginge mountnoyesStroke H**720 mm720 mmMax. lifting forcedyn. 900 N stat. 900 Ndyn. 900 N stat. 900 NRequired drive torque3,3 Nm3,3 Nm* In combination with motor 3133 and the LogicData controll box Compact-3** Stroke length of 720 mm is constant at installation dimension between 476 mm and 560 mm
