Aluminium mounting angle slot 10 for profile
Klassischer, Bosch-kompatibler Montagewinkel aus Aluminiumdruckguss für 45x45/60x60 Profile. Schnelle Montage mit Nutensteinen.
| Quantity | Unit price |
|---|---|
| To 4 |
€4.46*
|
| To 9 |
€4.30*
|
| To 19 |
€4.13*
|
| From 20 |
€3.98*
|
Available, delivery time: 1-3 days
Stock:
15
Product number:
1602.33-02
Weight:
0.06 kg
Description
Product information "Aluminium mounting angle slot 10 for profile"

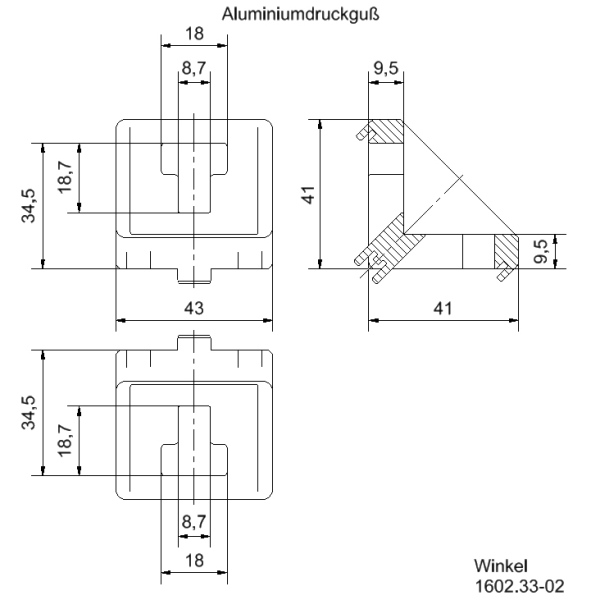

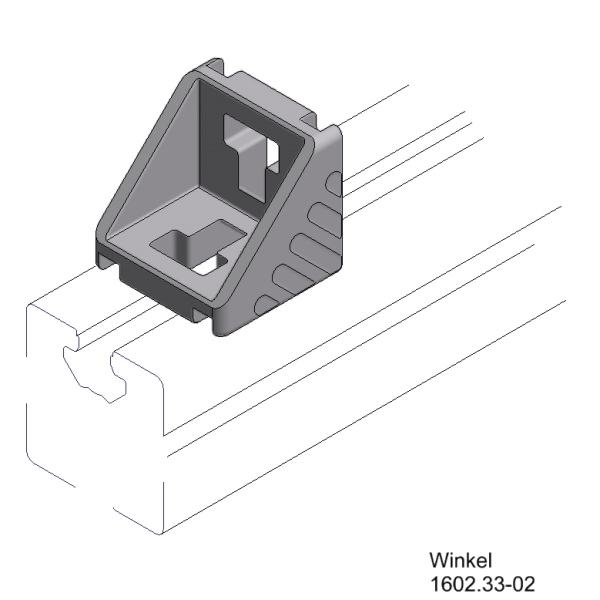

The classic mounting bracket made of die-cast aluminum enables a fast, stable, and precise 90° connection between aluminum profiles. It is Bosch compatible and suitable for profile series 45×45 and 60×60. Installation is done using matching T-slot nuts and screws – ideal for machine frames, protective enclosures, workstations, and conveyor systems.
Features
- Quick assembly: profile-to-profile connection without complex machining.
- Stable 90° connection: durable corner reinforcement for long-lasting structures.
- Die-cast aluminum: lightweight, stiff, and corrosion-resistant.
- Bosch compatible: fits the common slot geometries of the 45×45 and 60×60 series.
- Flexible application: suitable for frames, enclosures, extensions, or supports.
- Easy retrofitting: can also be mounted afterwards on existing profiles.
Technical Specifications
- Product type: Mounting Bracket / Corner Bracket
- Compatibility: Bosch-compatible aluminum profiles
- Profile sizes: 45×45, 60×60
- Material: Die-cast aluminum
- Mounting: with suitable T-slot nuts and screws (not included)
- Angle: 90° (right-angled)
- Surface: natural aluminum die-cast finish
- Note: dimensions and hole patterns vary depending on the version – please select or inquire.
Applications
- Mechanical and plant engineering: frames, structures, fixtures
- Protective enclosures & partitions: robust corner connections
- Workstation systems: tables, shelves, holders
- Conveyor technology & intralogistics: supports, crossbeams, side guides
Scope of Delivery & Accessories
- Included: 1× mounting bracket (without T-slot nuts, without screws)
- Required accessories (sold separately): T-slot nuts, socket-head or pan-head screws, washers
