Internal angle slot 10 for aluminium profile + 2x grub screw DIN916M8x12
Bosch-compatible, galvanised cast steel profile connection for 10 mm aluminium profiles. Ideal for frames, partition walls incl. 2 grub screws.
Quantity | Unit price |
---|---|
To 4 |
€3.21*
|
To 9 |
€3.00*
|
To 19 |
€2.78*
|
From 20 |
€2.57*
|
Available, delivery time: 1-3 days
Please note that we are in the period from 05.08.2024 to 16.08.2024 on a business holiday and can only process incoming orders within this period after our return. Deliveries can therefore only be made after the 16.08.2024. Thank you for your comprehension.
Stock:
14
Product number:
1602.33-01
Weight:
0.06 kg
Product information "Internal angle slot 10 for aluminium profile + 2x grub screw DIN916M8x12"
This easy-to-install, Bosch-compatible profile connection made of galvanised cast steel is designed for aluminium profiles with a groove opening of 10 mm. The inner wrap is particularly suitable for constructing frames or partition walls.

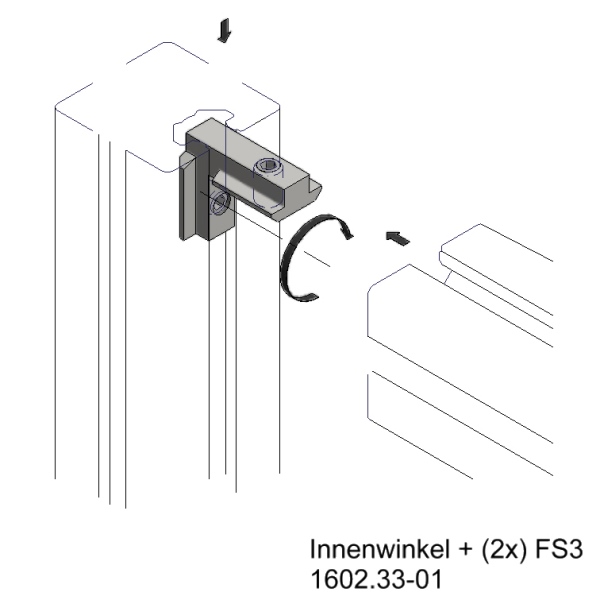

The bracket is secured in the groove using the grub screws (2x) supplied.

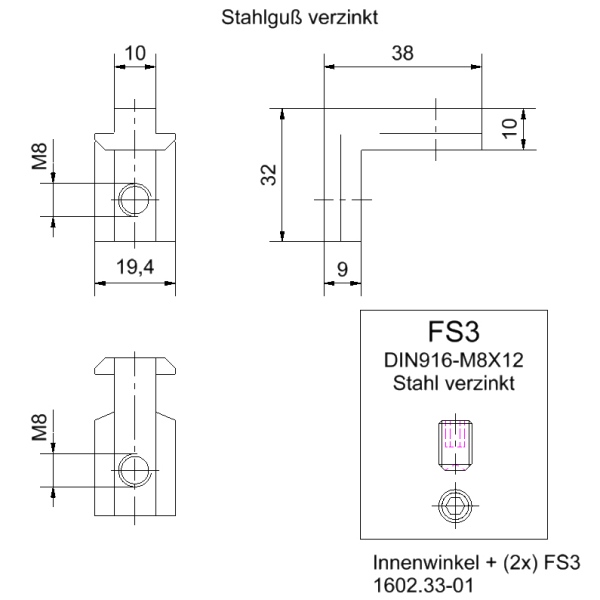

Features internal angle
Material: | Cast steel |
Surface: | galvanised |
suitable for: | Aluminium profile 45x45 /60x60 |
Fastening material: | 2x grub screw DIN 916-M8x12 |
Downloads "Internal angle slot 10 for aluminium profile + 2x grub screw DIN916M8x12"
