t-Rex 3200 I-44-47-L21 S2 (short version, focus rotational speed) at 24 VDC
| Quantity | Unit price |
|---|---|
| To 4 |
€201.00*
|
| To 9 |
€188.00*
|
| To 19 |
€174.00*
|
| From 20 |
€161.00*
|
Available in 30 days, delivery time 1-3 days
Product information "t-Rex 3200 I-44-47-L21 S2 (short version, focus rotational speed) at 24 VDC"

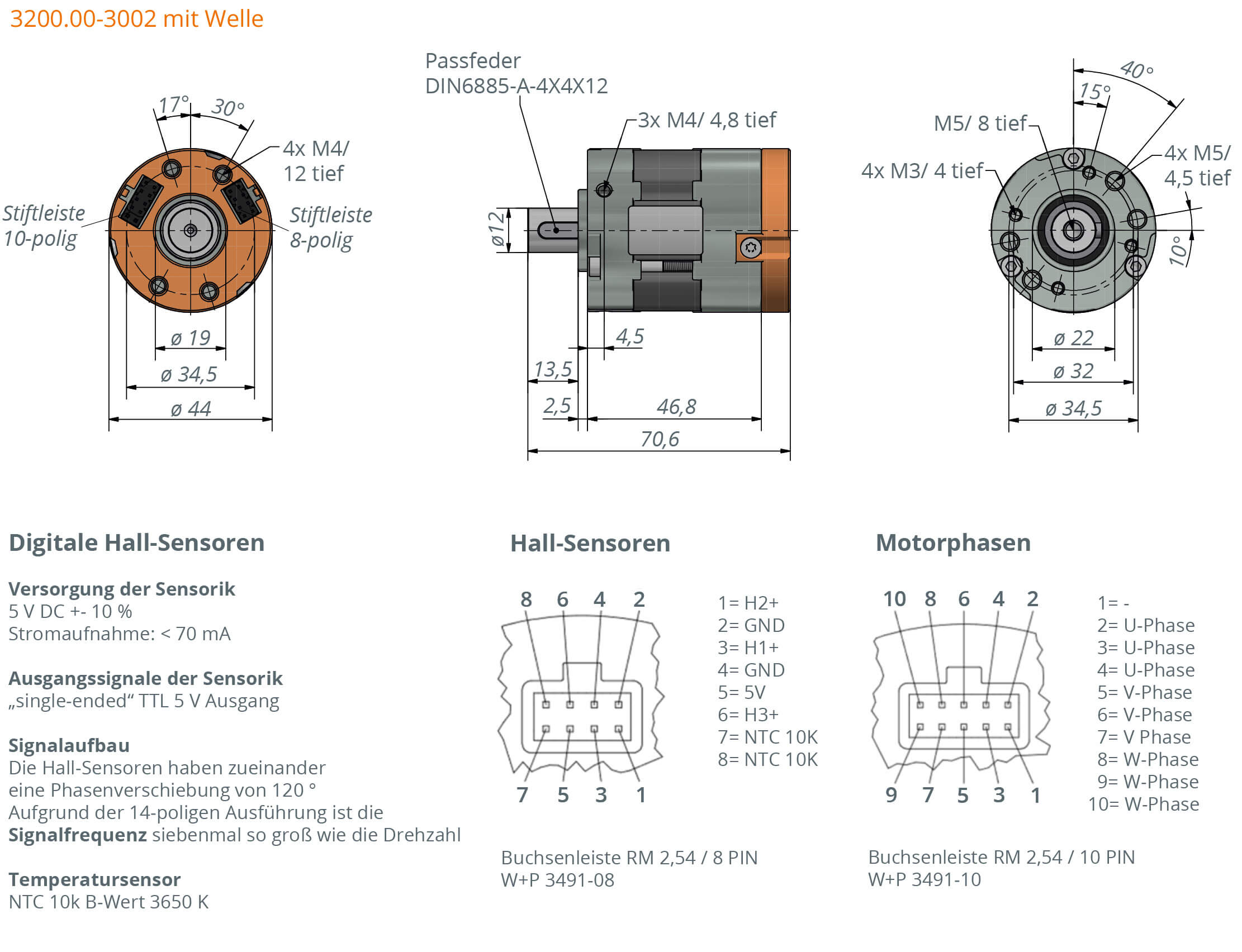

BLDC Motor – 14-pole with Hall Sensors and Neodymium Magnets
Compact high-performance motor for precise and efficient drive systems
This 14-pole brushless DC motor (BLDC) combines powerful neodymium magnets with three integrated Hall sensors for accurate rotor position detection. Electrical connection is via a convenient plug-in system – perfect for fast and secure integration into your application.
Operation requires an external power electronics unit. An optional version with a hollow shaft is available, allowing for a dual-sided output configuration.
Technical Highlights
-
High-speed performance – optimized for applications requiring high rotational speed
-
Compact design, maximum output – up to 3× more powerful than comparable motors
-
High overload capacity – robust even under short-term peak loads
-
Direct drive compatible – ideal for gearless systems or generator use
-
Custom configurations – special windings and tailored designs available upon request

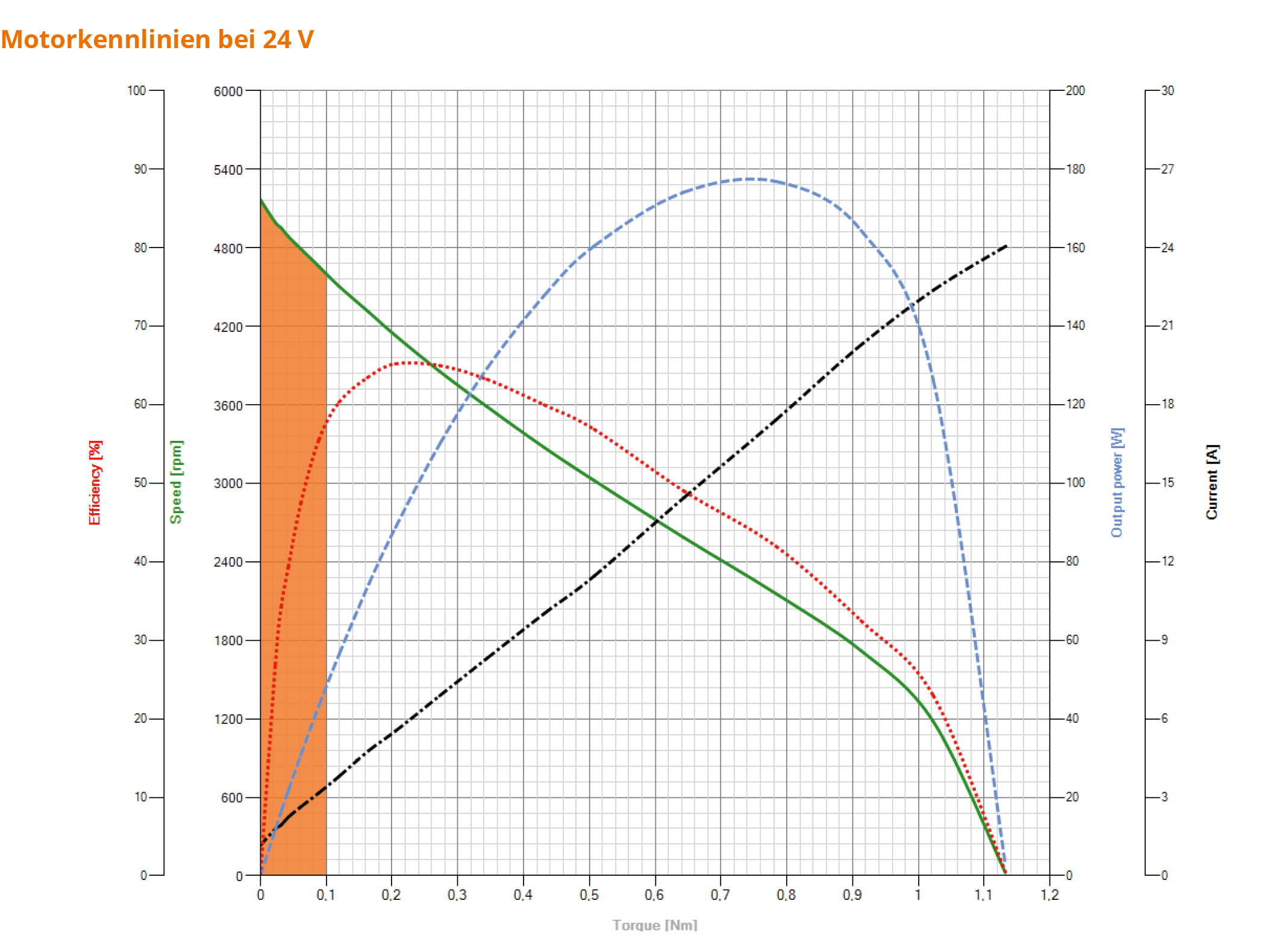

Technical Specifications
| t-Rex 3200-I-44-47 L21 S2 DH | 3200.00-3002 |
| Nominal voltage | 24 VDC |
| Nominal current | 3.4 A |
| Nominal torque | 0.1 Nm |
| Nominal speed | 4600 rpm |
| Output power at nominal torque | 48 W |
| Maximum efficiency | 65% |
| No-load speed | 5168 rpm |
| No-load current | 1.2 A |
| Stall torque | 1.1 Nm |
| Starting current at stall torque | 24 A |
| Torque constant | 0.047 Nm/A |
| Speed constant | 215 rpm/V |
Motor Parameters
| Phase-to-phase resistance | 0.29 Ohm |
| Phase-to-phase inductance | 171 μH |
| Rotor inertia | 9.5 kg·mm² |
| Number of poles | 14 |
| Wiring type | Star |
| Number of coils per phase | 2 |
| Coil connection | 2 in series |
| Direction of rotation | Bidirectional |
Note: Max. ambient temperature = 40 °C, depending on controller
Values based on nominal conditions at 20 °C ambient temperature
Only cyclic operation possible at 36 V and 48 V
