t-Rex 3200 I-44-47-L41 S2 (short version, focus on torque) at 24 VDC
| Quantity | Unit price |
|---|---|
| To 4 |
€221.00*
|
| To 9 |
€206.00*
|
| To 19 |
€191.00*
|
| From 20 |
€176.00*
|
Available, delivery time: 1-3 days
Product information "t-Rex 3200 I-44-47-L41 S2 (short version, focus on torque) at 24 VDC"
BLDC Motor – 14-pole with Hall Sensors & Neodymium Magnets
High-performance compact drive for demanding applications
The 14-pole BLDC motor is designed for maximum efficiency and precise control. Equipped with powerful neodymium magnets and three digital Hall sensors, it ensures reliable and accurate rotor position detection.
The electrical connection is made via a convenient plug-in system – ideal for fast and secure integration into your application.
External power electronics are required for operation. Optionally, the motor is also available with a hollow shaft, enabling a dual-sided output.
Technical Highlights
-
Torque-optimized design – ideal for applications with high load moments
-
Maximum power density – up to 3x stronger than comparable motors
-
Overload resistant – reliable even during short-term peak loads
-
Suitable for direct drive or generator operation – perfect for gearless systems
-
Custom configuration available – special windings and specific design upon request
Optional Available:
-
Version with hollow shaft – for applications with dual-side output
-
Customized variants – tailored to your specific application

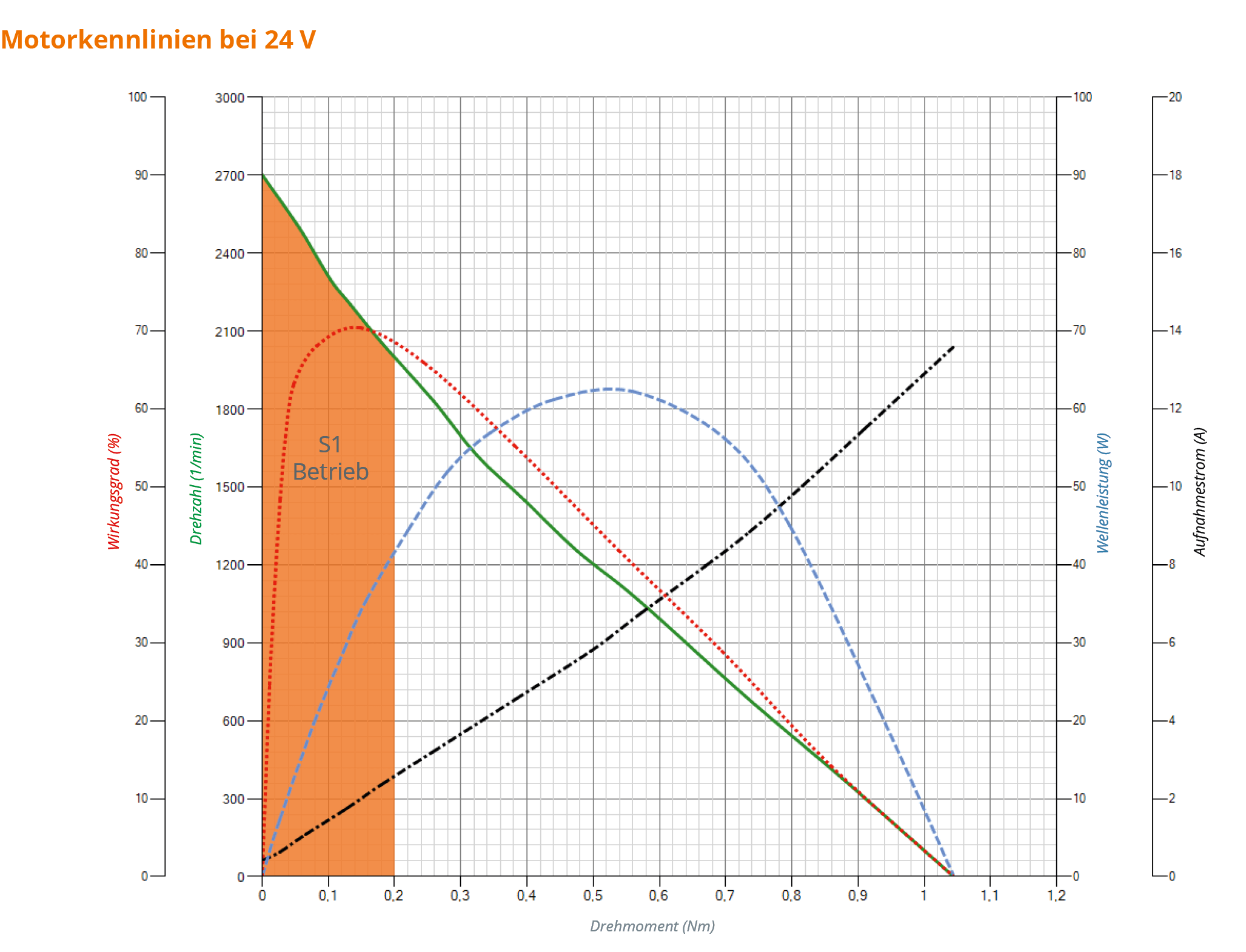

Technical Specifications

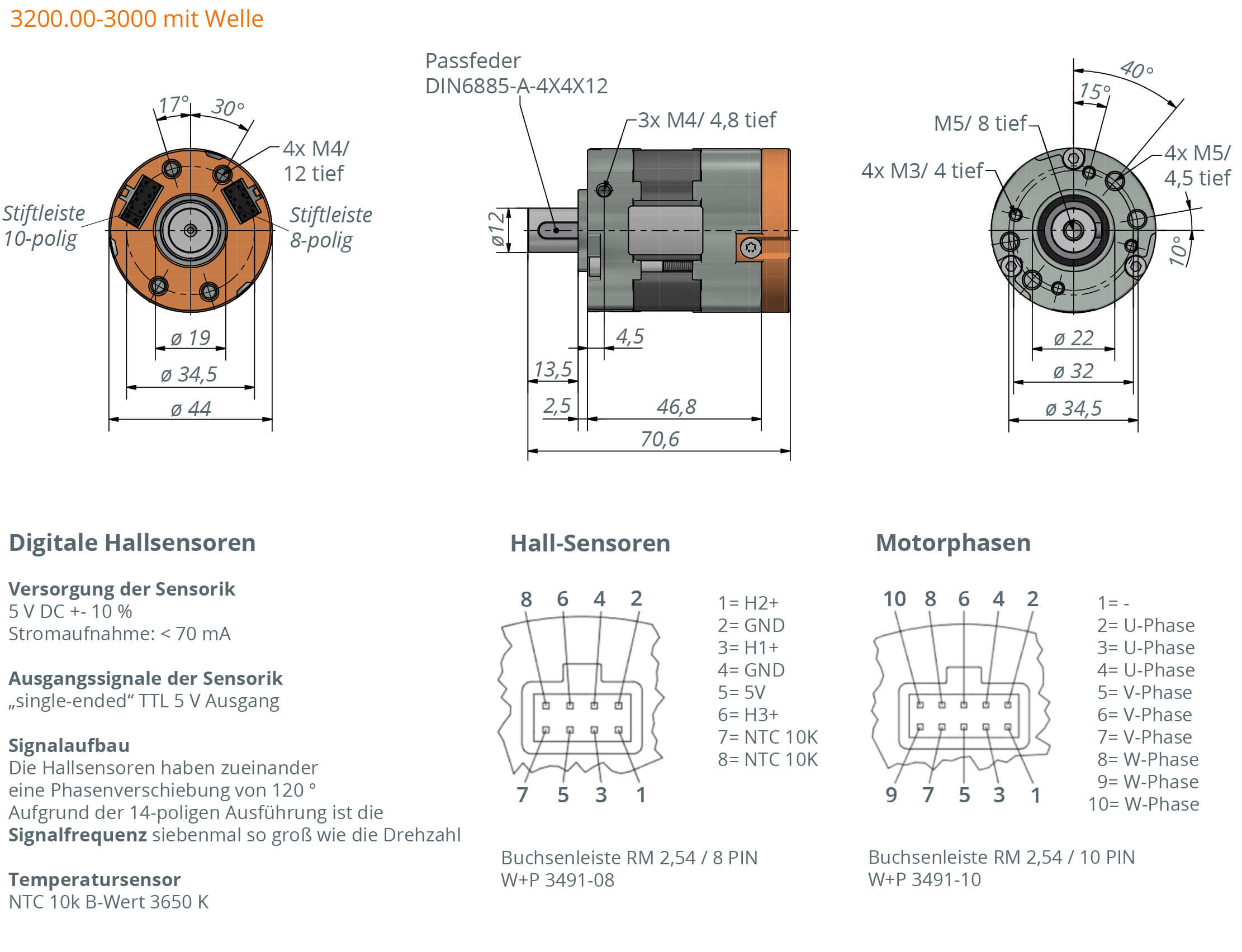

| t-Rex 3200-I-44-47 L41 S2 DH
| 3200.00-3000 | ||||
|
Rated voltage
| 24 VDC | 36 VDC | 48 VDC | ||
|
Rated current
|
| 2,4 A | 2,2 A | ||
|
Rated torque
| 0,2 Nm | 0,18 Nm | 0,15 Nm | ||
| Rated speed | 2000 rpm | 3250 rpm | 4664 rpm | ||
| Shaft power (output) | 41 W |
| 74 W | ||
| Max. efficiency | 70 % | 72 % | 72 % | ||
| Idle speed | 2700 rpm | 4090 rpm | 5480 rpm | ||
| No-load current | 0,4 A | 0,45 A | 0,45 A | ||
| Stall torque |
| 1,3 Nm | 1,5 Nm | ||
| Starting current at idle speed | 14 A | 18 A | 20 A | ||
| Torque constant | 0,077 Nm/A | 0,073 Nm/A | 0,073 Nm/A | ||
| Speed constant | 113 rpm/V | 114 rpm/V | 114 rpm/V |
Motor parameters
|
Terminal resistance (phase to phase)
|
1,09 Ohm
|
|
Terminal inductance (phase to phase
|
98 µH
|
|
Rotor inertia
|
125 kg* mm
|
|
Number of poles
| 14 |
| Interconnection of the motor | Stern |
| Number of coils per phase | 2 |
| Interconnection of coils | 2 Serie |
| Direction of rotation | bidirectional |
Note:
Max. ambient temperature = 40 °C, controller-specific
At the nominal point (TU = 20°C), controller-specific
