t-Rex 3200 I-44-89-L41 S2 (long version, focus torque)at 24 VDC
| Quantity | Unit price |
|---|---|
| To 4 |
€221.00*
|
| To 9 |
€206.00*
|
| To 19 |
€191.00*
|
| From 20 |
€176.00*
|
Available, delivery time: 1-3 days
Product information "t-Rex 3200 I-44-89-L41 S2 (long version, focus torque)at 24 VDC"
BLDC Motor – 14-pole with hollow shaft and high torque at 24 VDC
Powerful direct drive for maximum torque demands
The T-Rex 3200 I-44-89-L41 S2 is a compact brushless DC motor (BLDC) featuring 14 poles, high-performance neodymium magnets, and three integrated Hall sensors for precise rotor position detection. The electrical connection is implemented via a convenient plug-in system – ideal for easy and secure integration.
This motor requires an external power electronics unit. Its hollow shaft design enables a dual-sided output, making it highly versatile across various applications.
Technical Highlights
Maximum torque – specifically designed for high torque requirements
Compact and powerful – up to three times the power density of comparable motors
Overload resistant – reliable even under short-term peak loads
Ideal for direct drive – perfect for gearless applications or use as a generator
Customizable – special windings and custom configurations available on request
|

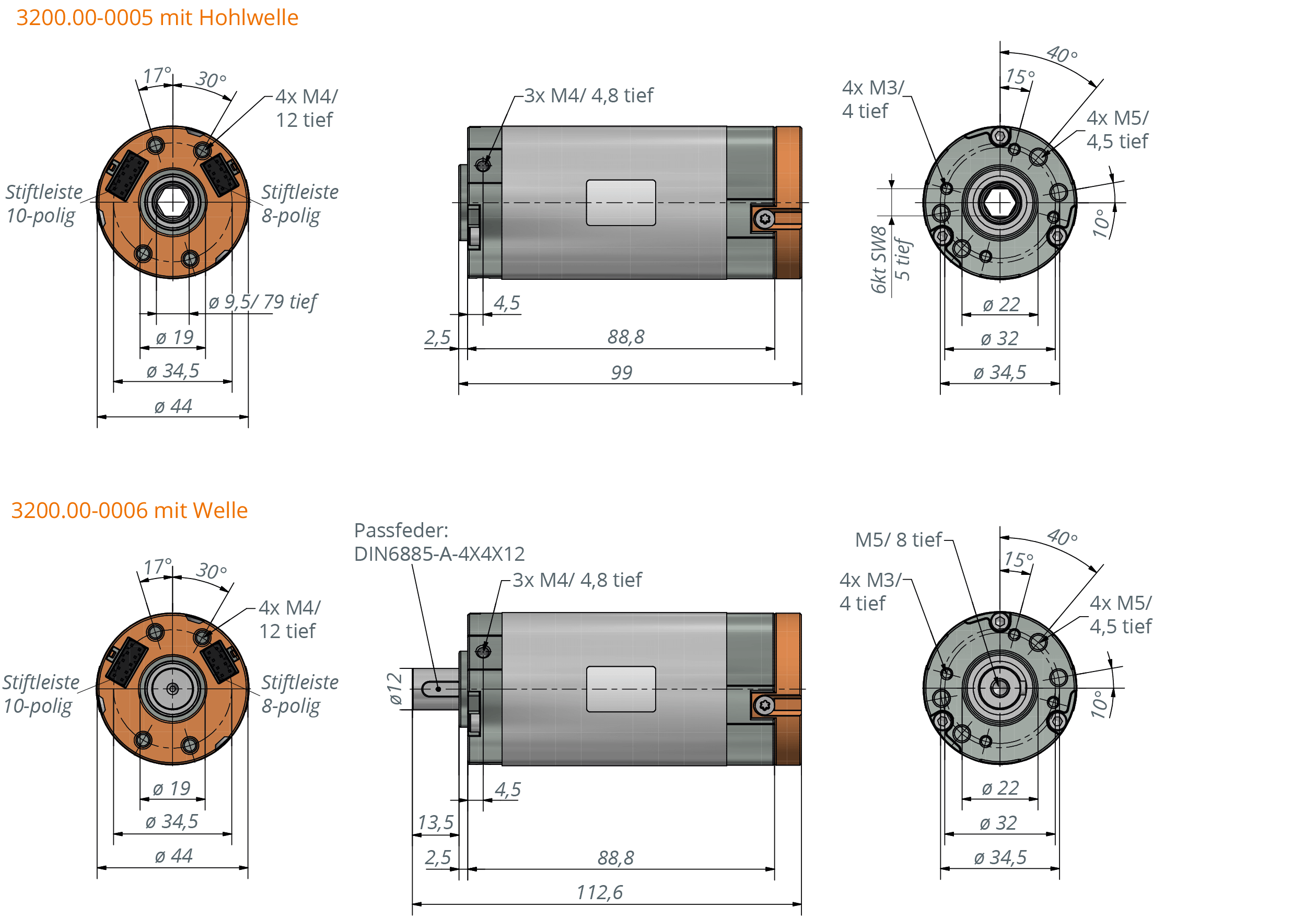

T-Rex 3200 I-44-89 L41 S2 DH |
3200.00-0005 / 3200.00-0006 |
||
| Rated voltage | 24 VDC | 36 VDC | 48 VDC |
| Rated current | 1.7 A | 1.65 A | 1.5 A |
| Rated torque | 0.5 Nm | 0.46 Nm | 0.42 Nm |
| Rated speed | 600 rpm | 980 rpm | 1390 rpm |
| Shaft power at rated torque | 31 W | 47 W | 61 W |
| Max. efficiency | 83 % | 83 % | 83 % |
| No-load speed | 790 rpm | 1221 rpm | 1653 rpm |
| No-load current | 0.3 A | 0.2 A | 0.2 A |
| Holding torque | 1.8 Nm | 2.3 Nm | 2.9 Nm |
| Starting current at holding torque | 6.9 A | 8.7 A | 11.2 A |
| Torque constant | 0.261 Nm/A | 0.264 Nm/A | 0.259 Nm/A |
| Speed constant | 33 rpm/V | 34 rpm/V | 34 rpm/V |
| Motor parameters | |
| Terminal resistance (phase to phase) | 2.6 Ohm |
| Terminal inductance (phase to phase) | 1.6 mH |
| Rotor inertia | 26.5 kg·mm² |
| Number of poles | 14 |
| Interconnection of the motor | Star |
| Number of coils per phase | 2 |
| Interconnection of coils | 2 Series |
| Direction of rotation | bidirectional |
Note:
Max. ambient temperature = 40 °C, controller-specific
At the nominal point (TU = 20°C), controller-specific
