t-Rex 3206 I-65-51-L34 S2 (short version, focus rotational speed) at 24 VDC

Brushless DC motor with digital hall sensors and a diameter of 65mm.

Quantity	Unit price
To 4	€288.00*
To 9	€269.00*
To 19	€250.00*
From 20	€230.00*

Prices excl. VAT plus shipping costs

excl. VAT

incl. VAT

Available, delivery time: 1-3 days

Stock: 5

Product number: 3206.00-1000

Product information "t-Rex 3206 I-65-51-L34 S2 (short version, focus rotational speed) at 24 VDC"

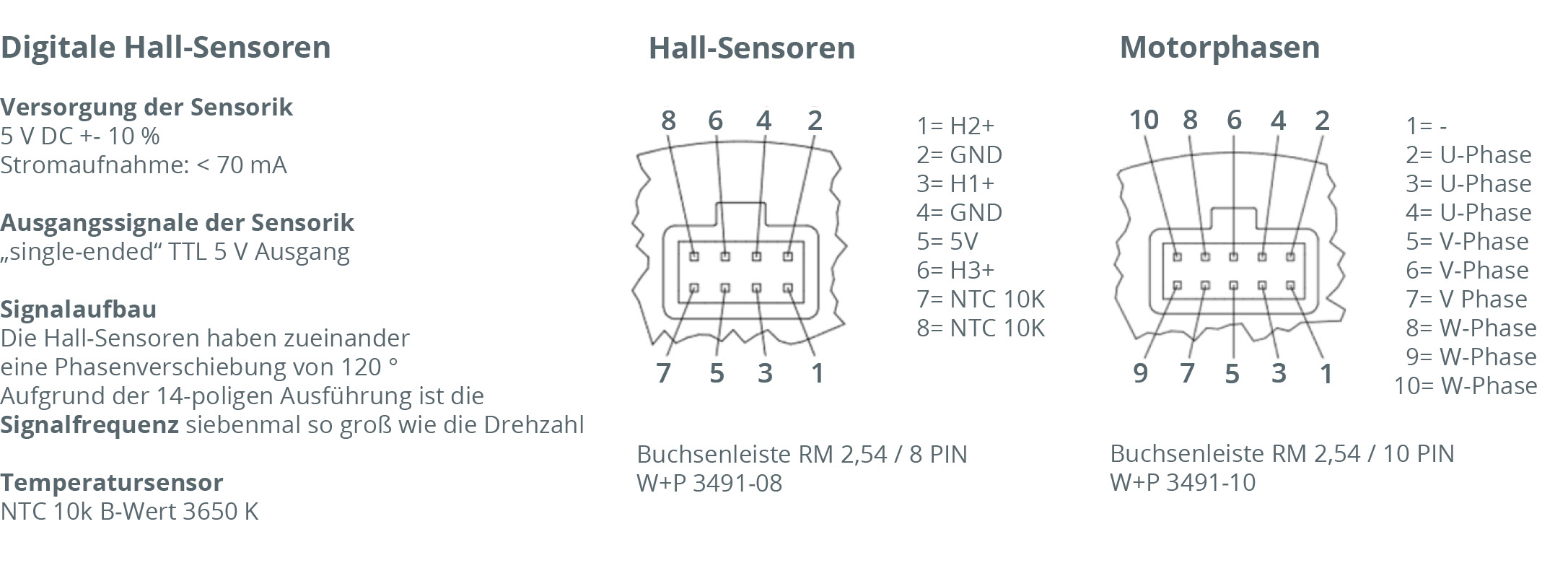

This 14-pole brushless DC motor (BLDC) impresses with the use of powerful neodymium permanent magnets and integrated digital Hall sensors for precise rotor position detection. The electrical connection is conveniently made via a robust plug system. External power electronics are required for operation.

Special Features

Speed-optimized design: Specifically developed for high rotational frequency applications.
Maximum power density: Delivers three times the performance compared to other motors of the same size.
High overload capacity: Robust design for reliable operation even under demanding conditions.

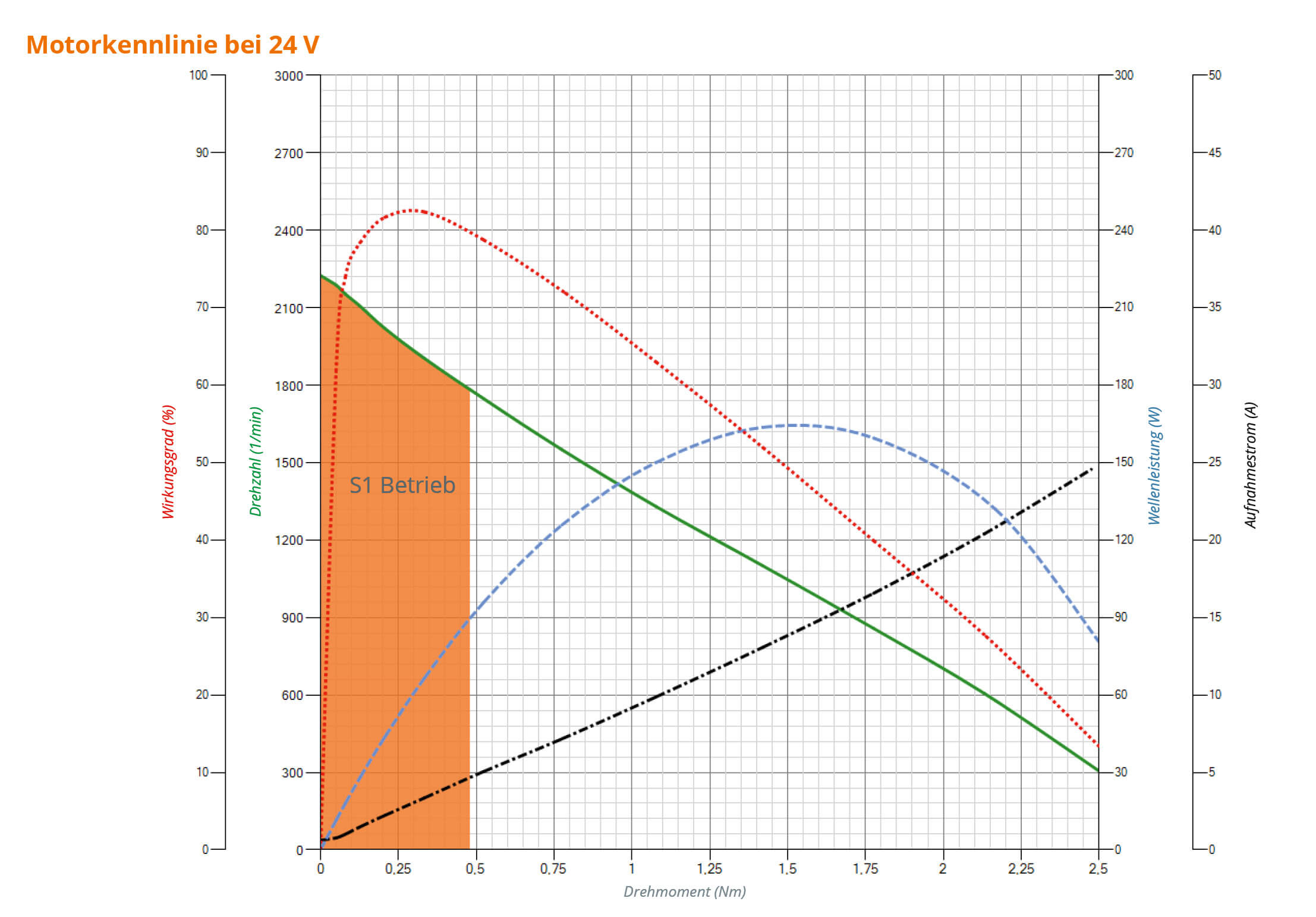

Technical Data

t-Rex 3206 I-65-51 L34 S2 DH	3206.00-1000
Rated voltage	24 VDC	36 VDC	48 VDC
Rated current	4,7 A	4,3 A	4 A
Rated torque	0,48 Nm	0,43 Nm	0,38 Nm
Rated speed	1785 1/min	2835 1/min	3895 1/min
Shaft power (output)	90 W	201 W	301 W
Max. efficiency	82 %	83 %	82 %
Idle speed	2225 1/min	3328 1/min	4324 1/min
No-load current	0,6 A	0,6 A	0,9 A
Stall torque	2,5 Nm	2,5 Nm	2,5 Nm
Starting current at idle speed	24,5 A	23 A	22 A
Torque constant	0,102 Nm/A	0,107 Nm/A	0,114 Nm/A
Speed constant	93 rpm/V	92 rpm/V	90 rpm/V

Motor parameters
Terminal resistance (phase to phase)	121 mOhm
Terminal inductance (phase to phase)	916 µH
Rotor inertia	104 kg* mm²
Number of poles	14
Interconnection of the motor	Star
Number of coils per phase	2
Interconnection of coils	2 Series
Direction of rotation	bidirektional

* Limited by the current-carrying capacity of the coils

Note:

Max. Ambient Temperature = 40 °C, controller-specific
At rated point (TU = 20 °C), controller-specific
