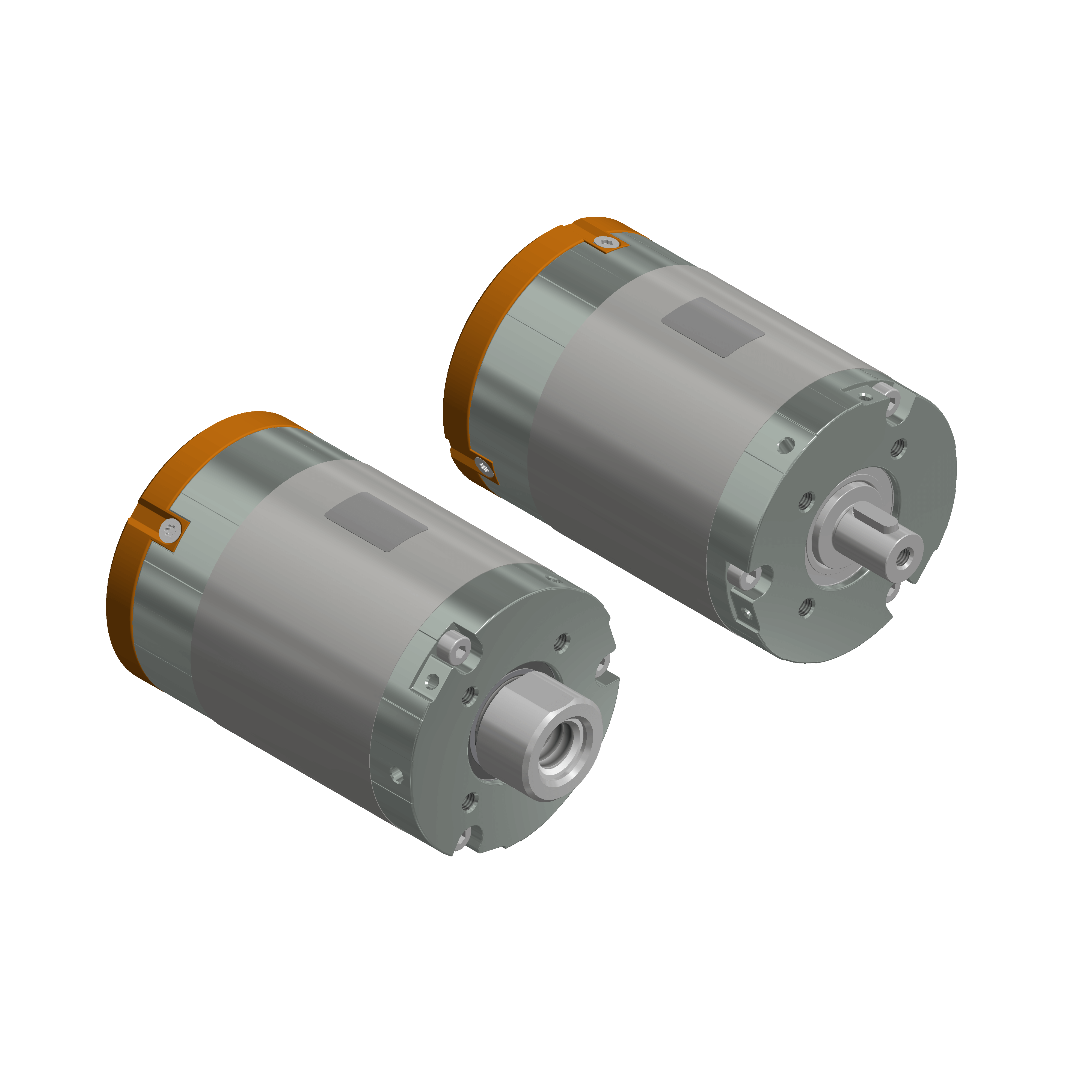

t-Rex 3206 I-65-86-H36 S2 (long version, focus speed) at 24 VDC
14-pole BLDC motor with neodymium magnets, Hall sensors & hollow shaft. Perfect for direct drive & generator use. Custom versions available.
| Quantity | Unit price |
|---|---|
| To 4 |
€231.00*
|
| To 9 |
€216.00*
|
| To 19 |
€200.00*
|
| From 20 |
€185.00*
|
Available, delivery time: 1-3 days
Stock:
10
Product number:
3206.00-0004
Weight:
1.488 kg
Description
Product information "t-Rex 3206 I-65-86-H36 S2 (long version, focus speed) at 24 VDC"

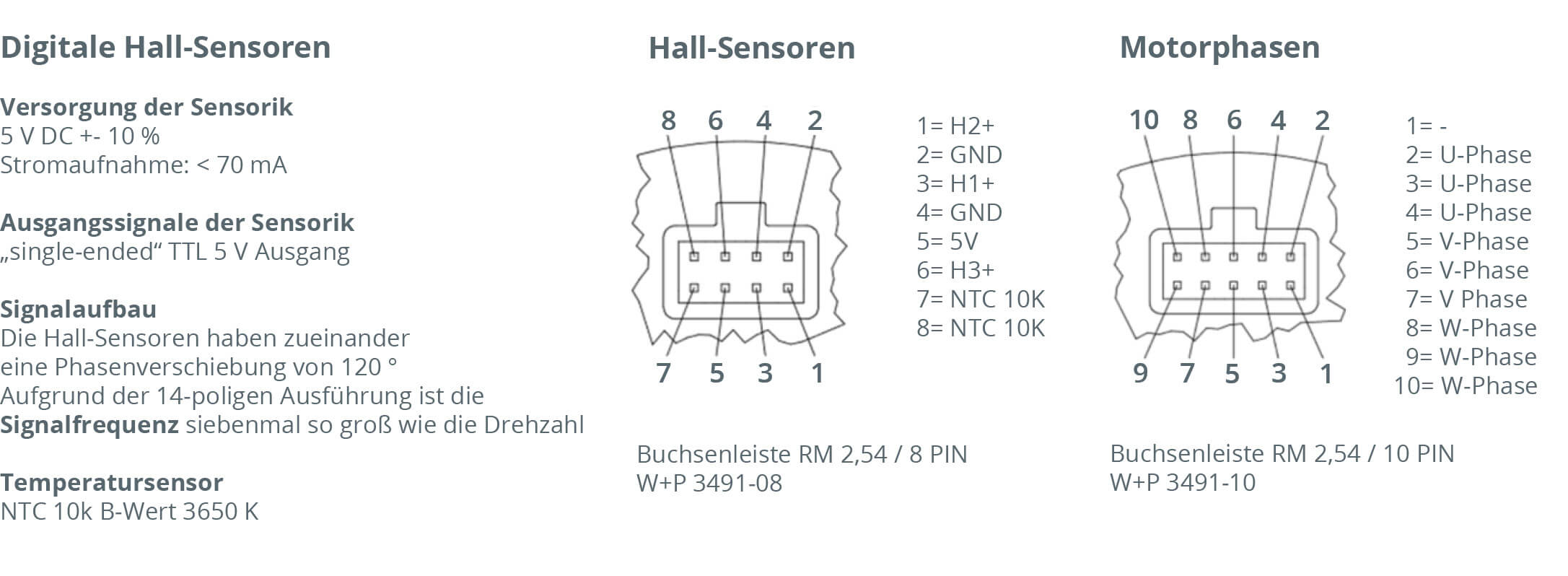

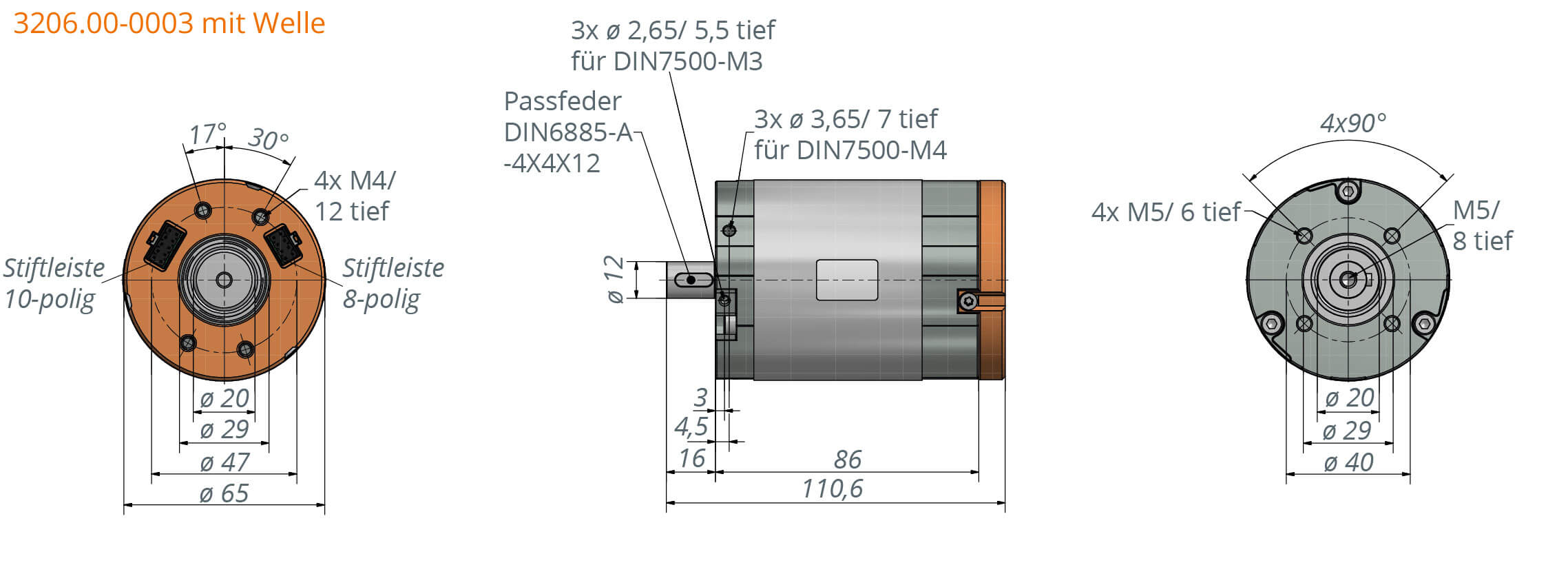

This compact 14-pole BLDC motor is equipped with powerful neodymium permanent magnets and features three integrated digital Hall sensors for precise rotor position detection. The electrical connections are designed as a user-friendly plug-in system.
An external power electronics unit is required for operation. The integrated hollow shaft allows for flexible integration – ideal for applications that require dual-sided output.
Special Features
- Optimized for high rotational speeds – perfect for dynamic applications
- Extremely high power density – up to three times the output of comparable motor sizes
- High overload resilience – dependable performance under demanding conditions
- Direct drive & generator capability – ideal for gearless system integration

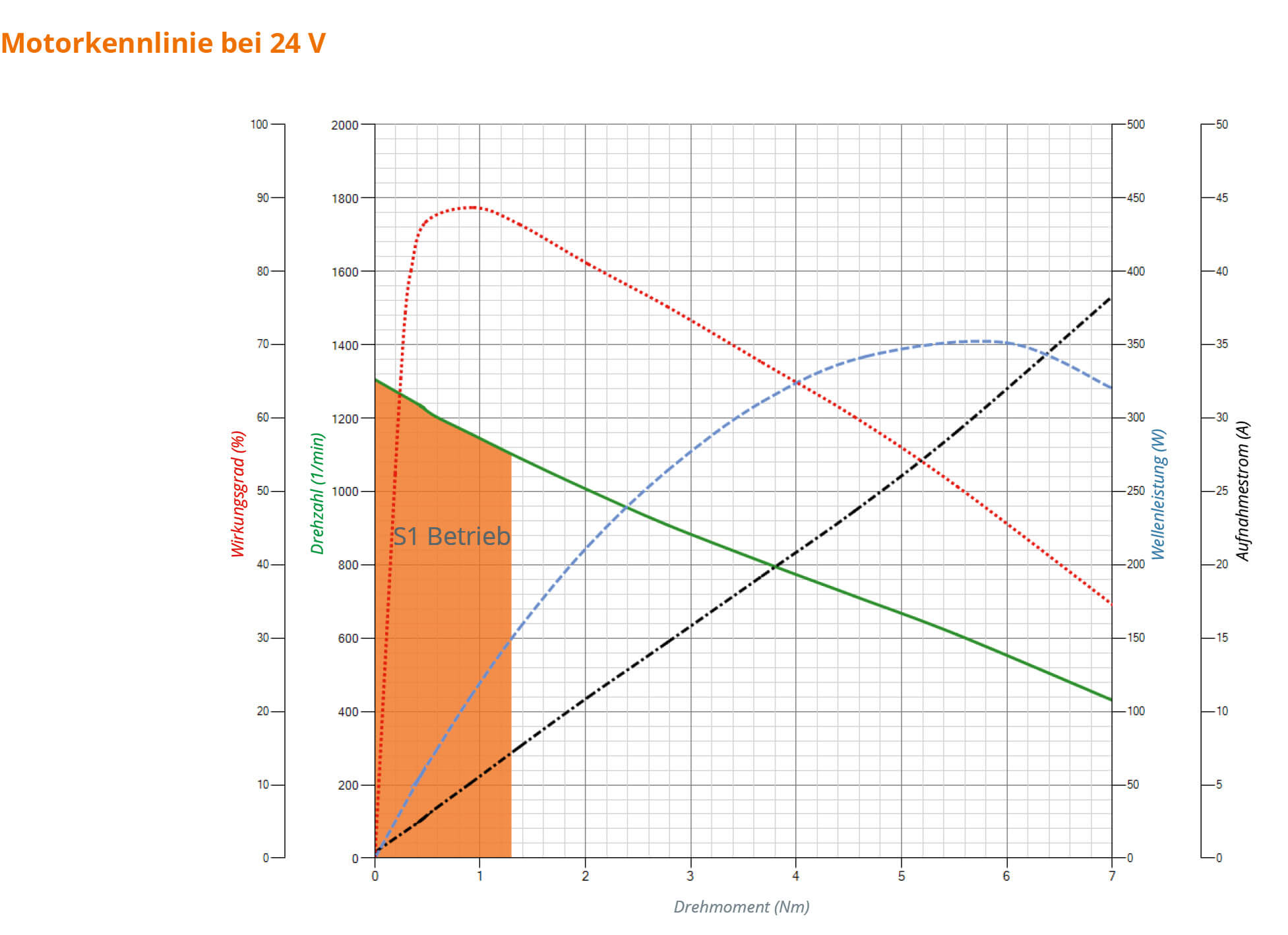

Technical Data
| t-Rex 3206 I-65-86-H36 S2 DH |
3206.00-0004 |
||
| Rated voltage | 24 VDC | 36 VDC | 48 VDC |
| Rated current | 7.2 A | 6.5 A | 5.8 A |
| Rated torque | 1.3 Nm | 1.15 Nm | 1 Nm |
| Rated speed | 1100 rpm | 1730 rpm | 2360 rpm |
| Shaft power at rated torque | 150 W | 208 W | 248 W |
| Max. efficiency | 88 % | 90 % | 89 % |
| No-load speed | 1300 rpm | 1950 rpm | 2600 rpm |
| No-load current | 0.4 A | 0.6 A | 0.6 A |
| Stall torque | 7 Nm | 6 Nm | 5 Nm |
| Starting current at stall torque | 38 A | 31 A | 26 A |
| Torque constant | 0.183 Nm/A | 0.195 Nm/A | 0.192 Nm/A |
| Speed constant | 54 rpm/V | 54 rpm/V | 54 rpm/V |
| Motor parameters |
|
| Terminal resistance (phase to phase) | 247 mOhm |
| Terminal inductance (phase to phase) | 372 µH |
| Rotor inertia | 104 kg* mm² |
| Number of poles | 14 |
| Motor connection | Delta |
| Number of coils per phase | 2 |
| Coil connection | 2 Series |
| Direction of rotation | bidirectional |
Note:
Max. ambient temperature = 40 °C, controller-specific
At the nominal point (TU = 20 °C), controller-specific
